Machine vision lenses

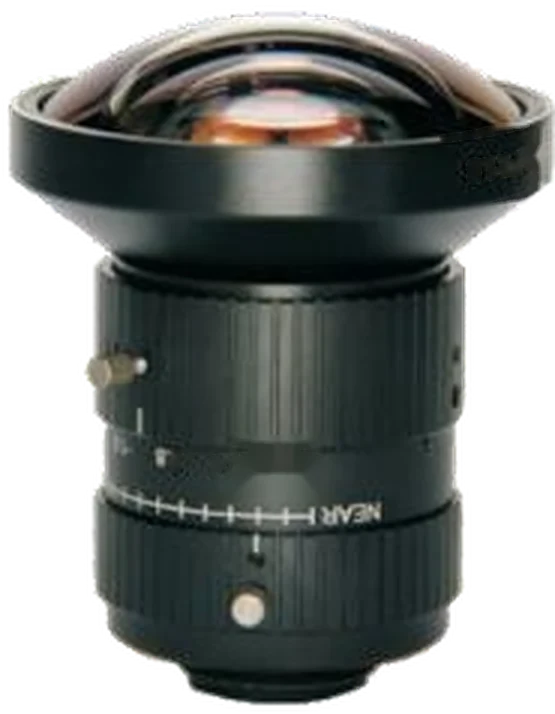

Industrial FA machine vision lens, C mount - machine vision fixed lens
- 6 models
- from $189.00
- Series LS-FA-D9
The Industrial FA machine vision lens, C mount - machine vision fixed lens is a range of 6 machine vision lenses from LumaSpec Vision, from $189.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 8 mm, 2/3", 10 MP, C-mount, 12 mm, 2/3", 10 MP, C-mount, 16 mm, 2/3", 10 MP, C-mount, 25 mm, 2/3", 10 MP, C-mount, 35 mm, 2/3", 10 MP, C-mount, 50 mm, 2/3", 10 MP, C-mount
- Type
- Machine vision fixed
- Mount
- C-mount
- Resolution
- 6-10 MP
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 2/3"
All 6 models in the Industrial FA machine vision lens, C mount - machine vision fixed lens
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SMV0828-10MC | dia. 32 x 32.8 mm | 8 mm | 68 x 58 x 44 deg | 11.5 mm | $189.00 | View |
| LS-SMV1228-10MC | dia. 29 x 38 mm | 12 mm | 49 x 40 x 31 deg | 13.8 mm | $199.00 | View |
| LS-SMV1628-10MC | dia. 29 x 40.6 mm | 16 mm | 39 x 31 x 23 deg | 12.8 mm | $199.00 | View |
| LS-SMV2528-10MC | dia. 29 x 33.8 mm | 25 mm | 25 x 20 x 15.3 deg | 14.3 mm | $209.00 | View |
| LS-SMV3528-10MC | dia. 29 x 46.7 mm | 35 mm | 16.3 x 10 x 13.1 deg | 16.5 mm | $229.00 | View |
| LS-SMV5028-10MC | dia. 29 x 56.1 mm | 50 mm | 13 x 11 x 9 deg | 12.4 mm | $249.00 | View |
