Machine vision lenses

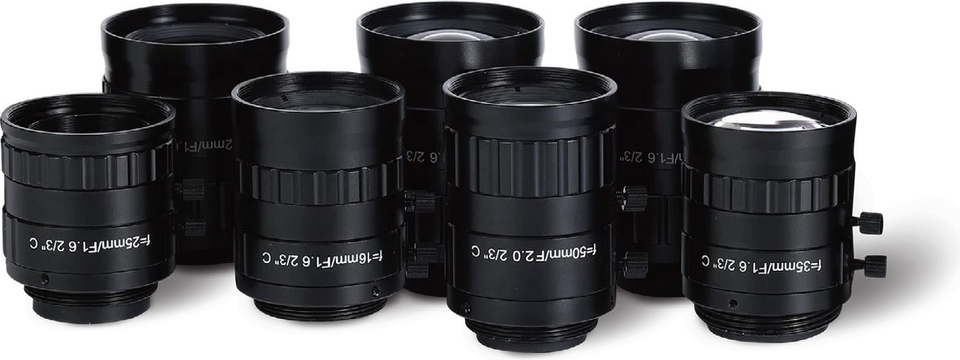

2/3 inch 12MP industrial lens (XTY..5C / SWD..5C)
- 8 models
- from $139.00
- Series LENS-XTY-5C
The 2/3 inch 12MP industrial lens (XTY..5C / SWD..5C) is a range of 8 machine vision lenses from LumaSpec Vision, from $139.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 8 mm, 2/3", 12MP, C-mount, 12 mm, 2/3", 12MP, C-mount, 16 mm, 2/3", 12MP, C-mount, 25 mm, 2/3", 12MP, C-mount, 35 mm, 2/3", 12MP, C-mount, 50 mm, 2/3", 12MP, C-mount
- Mount
- C-mount
- Resolution
- 12 MP
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 2/3"
Features
- High contrast for binary (black-and-white) images
- High brightness uniformity
- Max support 2/3 Inch
All 8 models in the 2/3 inch 12MP industrial lens (XTY..5C / SWD..5C)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-XTY085C | 8 mm, 2/3", 12MP, C-mount | 8 | 150-INF. | 2.8-11 | $139.00 | View |
| LS-XTY125C | 12 mm, 2/3", 12MP, C-mount | 12 | 100-1500 | 1.6-16 | $139.00 | View |
| LS-XTY505C | 50 mm, 2/3", 12MP, C-mount | 50 | 300-INF. | 2.0-16 | $199.00 | View |
| LS-SWD505C | 50 mm, 2/3", 12MP, C-mount | 50 | 100-300 | 2.0-16 | $199.00 | View |
| LS-XTY165C | 16 mm, 2/3", 12MP, C-mount | 16 | 100-1500 | 1.6-16 | $209.00 | View |
| LS-XTY255C | 25 mm, 2/3", 12MP, C-mount | 25 | 100-1500 | 1.6-16 | $229.00 | View |
| LS-XTY355C | 35 mm, 2/3", 12MP, C-mount | 35 | 150-1500 | 1.6-16 | $259.00 | View |
| LS-SWD355C | 35 mm, 2/3", 12MP, C-mount | 35 | 80-220 | 1.6-16 | $259.00 | View |
