Machine vision lenses

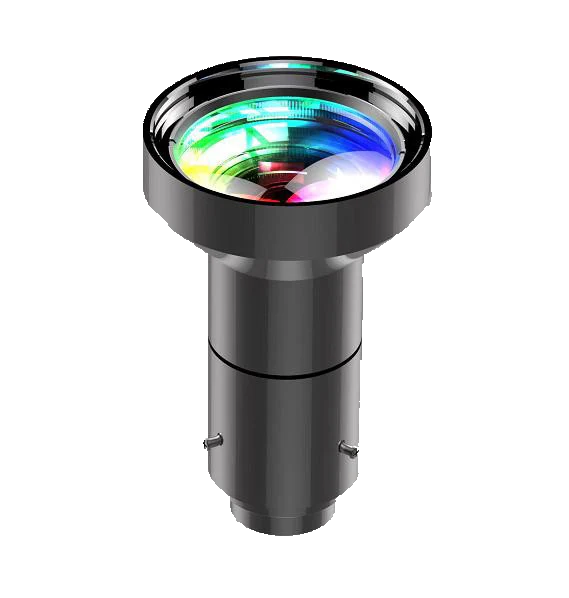

SWIR Lens Series
- 9 models
- from $369.00
- Series LS-SWIR-LENS
The SWIR Lens Series is a range of 9 machine vision lenses from LumaSpec Vision, from $369.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Image circle
- 11-16 mm, 22-30 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm, 100 mm +
- Mount
- M42, C-mount
- Sensor format
- 1", 4/3" - APS-C
Features
- Maximum sensor format 1''
- Large-aperture design for high light throughput
- Coating covers 900 nm–1700 nm with high infrared transmittance
- Maximum sensor format Φ28 mm
All 9 models in the SWIR Lens Series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-KF1216-5MP-NIR | 12mm | F1.6 | D(15.86 mm):70°; H(12.45 mm):57°; V(9.83 mm):44° | Φ55 × 79 mm | $369.00 | View |
| LS-KF1614M-5MP-NIR-V2 | 16mm | F1.4 | D:53.6°; H:43.4°; V:33.2° | Φ54×63mm | $389.00 | View |
| LS-KF2514M-5MP-NIR-V2 | 25mm | F1.4 | D:36°; H:28.7°; V:21.8° | Φ36.5 × 54.91mm | $449.00 | View |
| LS-KF3514M-5MP-NIR | 35mm | F1.4 | Φ36.5×46.73mm | $449.00 | View | |
| LS-AF2519M-M42-NIR | 25mm | F1.9 | D:60°; H:48°; V:37° | Φ52×92.5~97mm | $449.00 | View |
| LS-KF5014M-3MP-NIR | 50mm | F1.4 | Φ47.2×55.58mm | $489.00 | View | |
| LS-AF4016M-M42-NIR | 40mm | F1.6 | D:35.2°; H:28.6°; V:21.5° | Φ60.2×106mm | $489.00 | View |
| LS-AF5014M-M42-NIR | 50mm | F1.4 | D:30°; H:24°; V:18° | Φ60 × 99.4~107.4mm | $489.00 | View |
| LS-KF10020M-5MP-NIR | 100mm | F2.0 | Φ60×94mm | $779.00 | View |
