Machine vision lenses

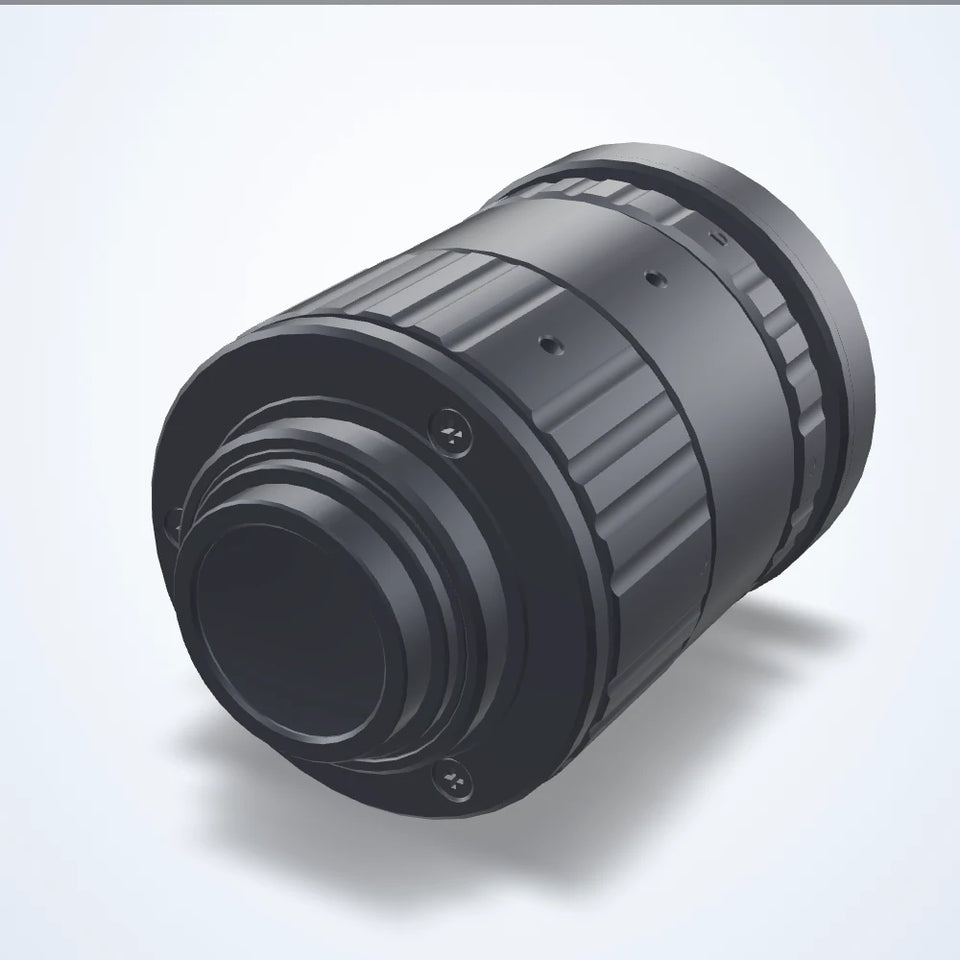

Lens series, 1", C-mount (S06)
- 5 models
- from $659.00
- Series LS-FFL-S06
The Lens series, 1", C-mount (S06) is a range of 5 machine vision lenses from LumaSpec Vision, from $659.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 12 mm, 16 mm, 25 mm, 35 mm, 50 mm
- Mount
- C-mount
- Image circle
- 11-16 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1"
All 5 models in the Lens series, 1", C-mount (S06)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0049 | 12 mm | f/2.6 | 39 × 39 × 43.5 mm | 33.7 × 25.5 × 41.5° | $659.00quote | View |
| LS-FFL-0050 | 16 mm | f/2.4 | 39.5 × 39.5 × 47 mm | 25.5 × 19.2 × 31.6° | $659.00quote | View |
| LS-FFL-0053 | 25 mm | f/2 | 37.5 × 37.5 × 35.7 mm | 16.4 × 12.4 × 20.5° | $659.00quote | View |
| LS-FFL-0056 | 35 mm | f/2.2 | 39.5 × 39.5 × 55.7 mm | 11.8 × 8.9 × 14.7° | $659.00quote | View |
| LS-FFL-0058 | 50 mm | f/2.4 | 42 × 42 × 60.1 mm | 8.3 × 6.2 × 10.3° | $659.00quote | View |
