Machine vision lenses

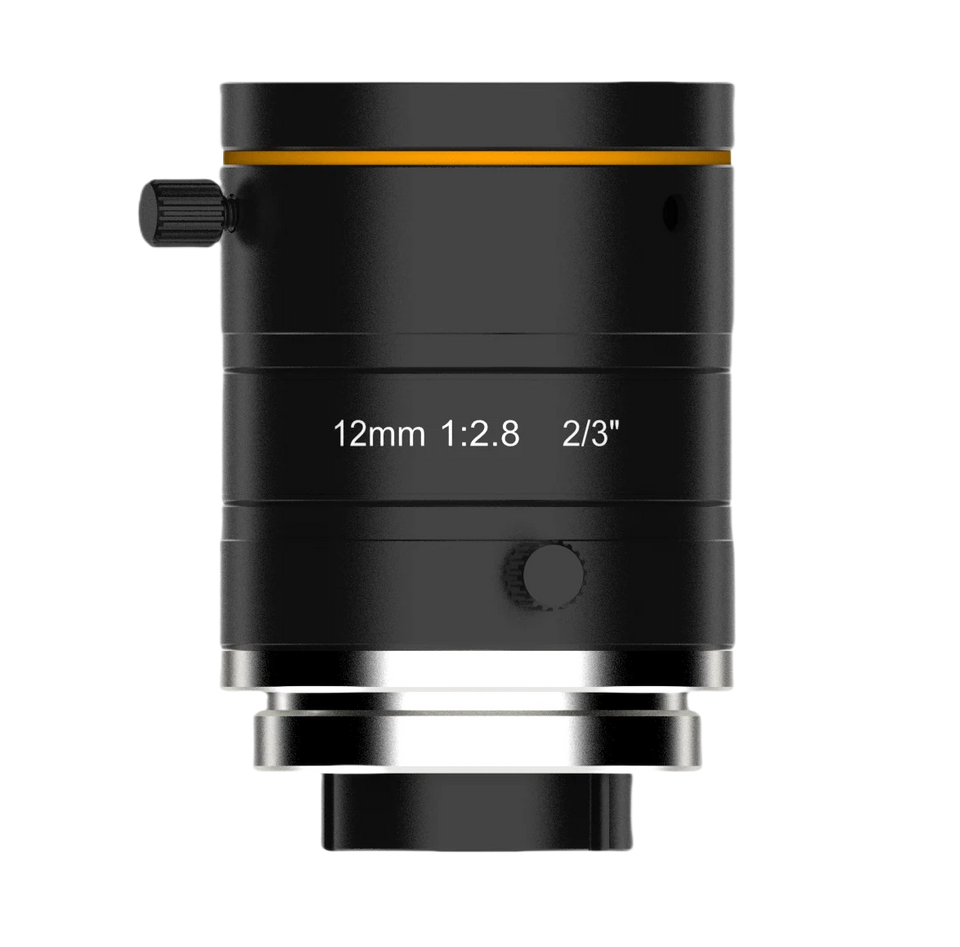

MF-8MPS series lenses
- 6 models
- from $109.00
- Series LS-MF-8MPS
The MF-8MPS series lenses is a range of 6 machine vision lenses from LumaSpec Vision, from $109.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm
- Resolution
- 6-10 MP
- Mount
- C-mount
- Sensor format
- 1/1.8" - 1/1.56", 2/3"
Features
- High resolution with highly consistent sharpness across the image
- Low distortion and excellent relative illumination
- Excellent resolving power at all object distances
- Achromatic design for better imaging with color cameras
All 6 models in the MF-8MPS series lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-MF1228M-8MPS | 12 mm | F2.8 ~ F16 | Φ29 mm × 34 mm | -0.39% | $109.00 | View |
| LS-MF1628M-8MPS | 16 mm | F2.8 ~ F16 | Φ29 × 34 mm | 0.13% | $159.00 | View |
| LS-MF2528M-8MPS | 25 mm | F2.8 ~ F16 | Φ29 × 40.5 mm | 0.06% | $169.00 | View |
| LS-MF3528M-8MPS | 35 mm | F2.8 ~ F16 | Φ29 × 42.4 mm | 0.09% | $179.00 | View |
| LS-MF0824M-8MPS | 8 mm | F2.4 ~ F16 | Φ32 mm × 40.0 mm | -0.96% | $189.00 | View |
| LS-MF0624M-8MPS | 6 mm | F2.4 ~ F16 | Φ33.4 mm × 32.8 mm | -1.22% | $189.00 | View |
