Machine vision lenses
1.2 inch 25MP industrial lens (XTY..25C)
- 5 models
- from $219.00
- Series LENS-XTY-25C

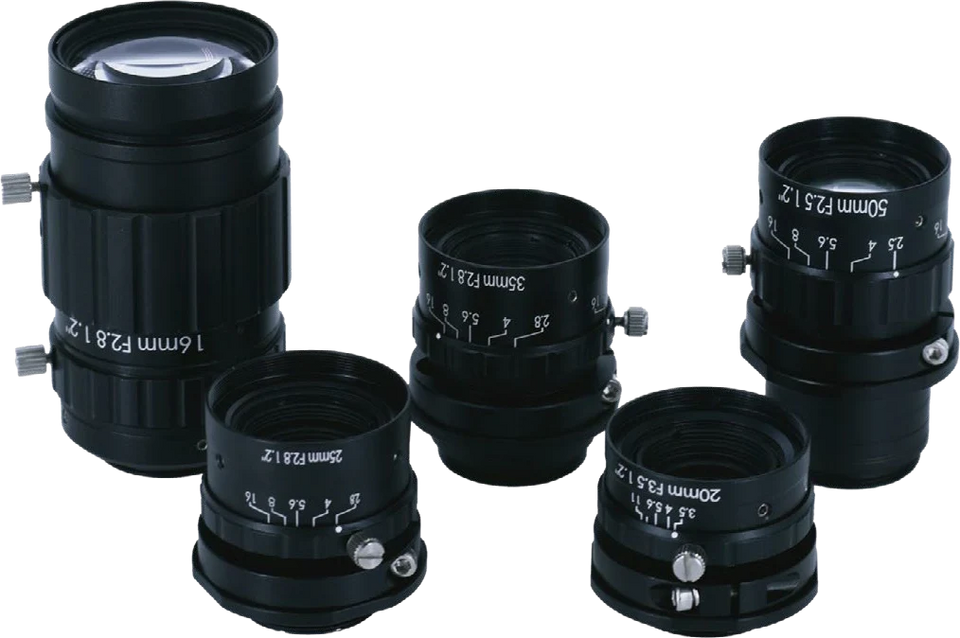

The 1.2 inch 25MP industrial lens (XTY..25C) is a range of 5 machine vision lenses from LumaSpec Vision, from $219.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 16 mm, 1.2", 25MP, C-mount, 20 mm, 1.2", 25MP, C-mount, 25 mm, 1.2", 25MP, C-mount, 35 mm, 1.2", 25MP, C-mount, 50 mm, 1.2", 25MP, C-mount
- Mount
- C-mount
- Resolution
- 16-25 MP
- Image circle
- 16-22 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1.1" - 1.2"
Features
- High resolution
- Low distortion
- Max support 1.2 Inch
All 5 models in the 1.2 inch 25MP industrial lens (XTY..25C)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-XTY1625C | 16 mm, 1.2", 25MP, C-mount | 16 | 2.8-16 | < -1.30 | $219.00 | View |
| LS-XTY2025C | 20 mm, 1.2", 25MP, C-mount | 20 | 3.5-11 | < -0.32 | $229.00 | View |
| LS-XTY2525C | 25 mm, 1.2", 25MP, C-mount | 25 | 2.8-16 | < -0.29 | $229.00 | View |
| LS-XTY3525C | 35 mm, 1.2", 25MP, C-mount | 35 | 2.8-16 | < 0.41 | $239.00 | View |
| LS-XTY5025C | 50 mm, 1.2", 25MP, C-mount | 50 | 2.5-16 | < 0.53 | $259.00 | View |
