Machine vision lenses

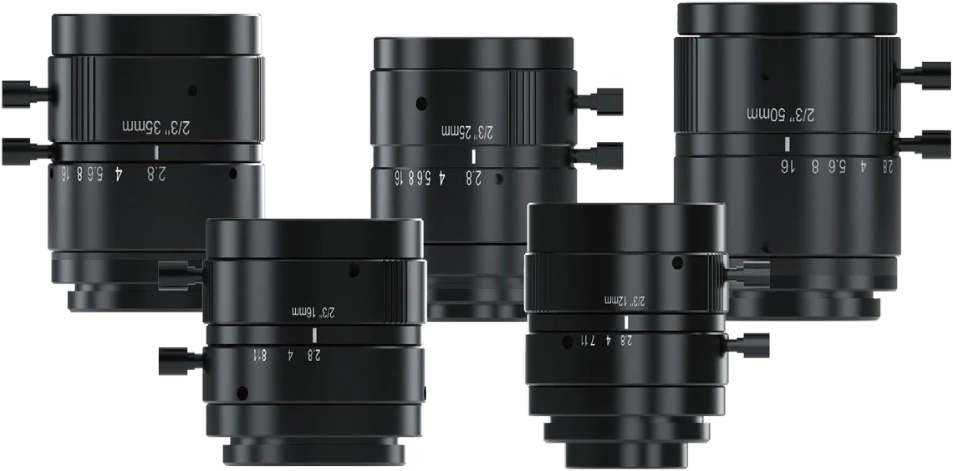

2/3 inch 12MP industrial lens (FTQ..13C)
- 5 models
- from $79.00
- Series LENS-FTQ-13C
The 2/3 inch 12MP industrial lens (FTQ..13C) is a range of 5 machine vision lenses from LumaSpec Vision, from $79.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 12 mm, 2/3", 12MP, C-mount, 16 mm, 2/3", 12MP, C-mount, 25 mm, 2/3", 12MP, C-mount, 35 mm, 2/3", 12MP, C-mount, 50 mm, 2/3", 12MP, C-mount
- Mount
- C-mount
- Resolution
- 12 MP
- Image circle
- 8-11 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 2/3"
Features
- High contrast for binary (black-and-white) images
- High brightness uniformity
- Max support 2/3 Inch
All 5 models in the 2/3 inch 12MP industrial lens (FTQ..13C)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FTQ1213C | 12 mm, 2/3", 12MP, C-mount | 12 | 50-1500 | 2.8-11 | $79.00 | View |
| LS-FTQ1613C | 16 mm, 2/3", 12MP, C-mount | 16 | 100-1500 | 2.8-11 | $89.00 | View |
| LS-FTQ2513C | 25 mm, 2/3", 12MP, C-mount | 25 | 100-1500 | 2.8-16 | $99.00 | View |
| LS-FTQ3513C | 35 mm, 2/3", 12MP, C-mount | 35 | 150-1500 | 2.8-16 | $109.00 | View |
| LS-FTQ5013C | 50 mm, 2/3", 12MP, C-mount | 50 | 300-1500 | 2.8-16 | $129.00 | View |
