Machine vision lenses

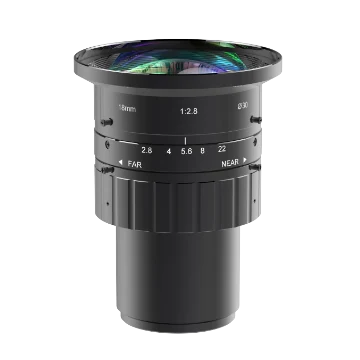

AF series lenses
- 10 models
- from $639.00
- Series LS-AF
The AF series lenses is a range of 10 machine vision lenses from LumaSpec Vision, from $639.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- M42
- Image circle
- 22-30 mm, 30-45 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 4/3" - APS-C, APS-H / Full frame, Medium / large
Features
- Adopts high-resolution lens for 4k 7 μm line scan cameras.
- Provides ultra-high image resolution at the max. aperture of F2.8.
- Provides max. image size Φ30 mm.
- Provides excellent consistency of image clarity.
- Provides low distortion.
- Provides max. image size Φ30 mm for APS-C area scan and 4k 7 μm line scan cameras.
- Adopts high-precision lens for 4k 7 μm line scan cameras.
- Provides excellent consistency of image clarity, large aperture, and low distortion.
All 10 models in the AF series lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-AF1828M-M42B | 18 mm | 0.012 x to 0.105 x | 150 mm to 1500 mm | F2.8 to F22 | $639.00 | View |
| LS-AF2045M-M42 | 20 mm | 0.02 x to 0.134 x | 150 mm to 999 mm | F4.5 to C | $639.00 | View |
| LS-AF2524M-M42 | 25 mm | 0.143 x to 0.001 x | 150 mm to inf mm | F2.4 to F16 | $639.00 | View |
| LS-AF2840M-M42 | 28 mm | 0.3x to 0.05x | 103 mm to 595 mm | F4.0 to F11 | $639.00 | View |
| LS-AF3528M-M42 | 35 mm | 0.2 x to 0.001 x | 163 mm to inf mm | F2.8 to F16 | $639.00 | View |
| LS-AF3528M-M42A | 35 mm | 0.164 x to 0.001 x | 200 mm to inf mm (tolerance: ±5 mm) | F2.8 to F16 | $639.00 | View |
| LS-AF4028M-M42 | 40 mm | 0.22 x to 0.04 x | 200 mm to 1051 mm | F2.8 to F22 | $639.00 | View |
| LS-AF5028M-M42A | 50 mm | 0.267 x to 0.001 x | 200 mm to inf mm (tolerance: ±5 mm) | F2.8 to F16 | $639.00 | View |
| LS-AF5040M-M42 | 50 mm | 0.323 x to 0.01 x | 150 mm to inf mm | F4 to F22 | $639.00 | View |
| LS-AF1428M-M42B | 14 mm | 0.0027x ~ 0.0136x ~ 0.043x | 5000 ~ 1000 ~ 300 mm | F2.8 ~ F22 | $639.00 | View |
