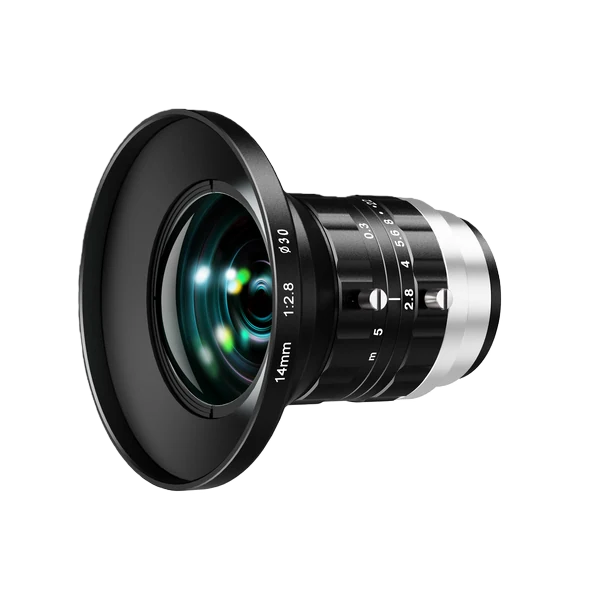

14mm, F2.8, Image circle φ30 mm, Recommended magnification 0.0027x ~ 0.0136x ~ 0.043x, M42-mount lens (LS-AF1428M-M42B)
  • 14mm, F2.8, Image circle φ30 mm, Recommended magnification 0.0027x ~ 0.0136x ~ 0.043x, M42-mount lens (LS-AF1428M-M42B)

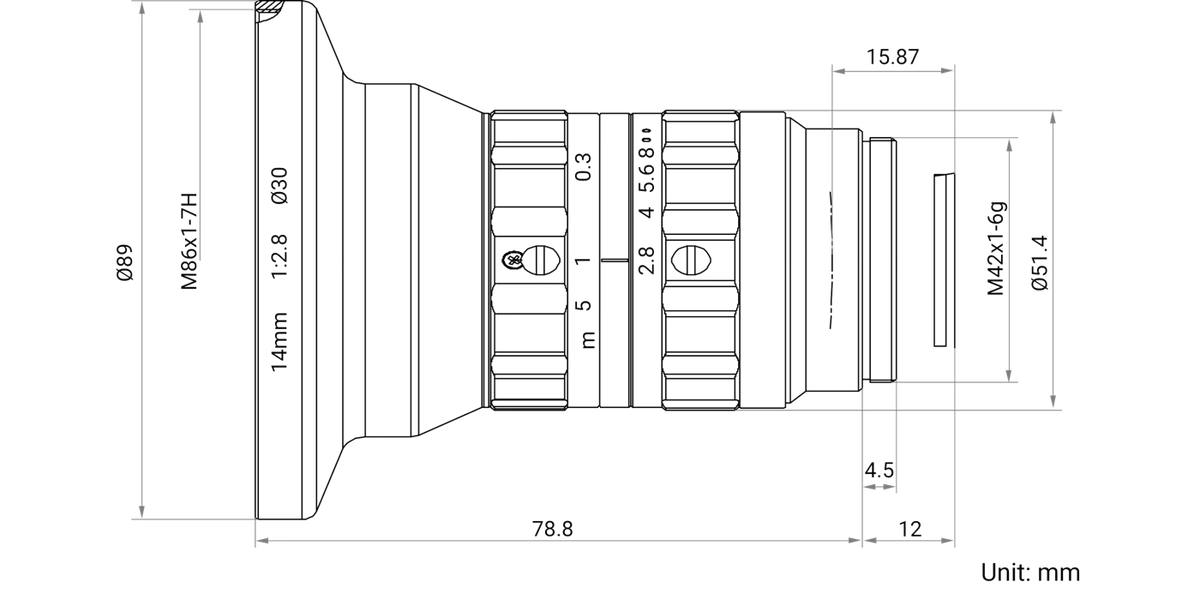

  • LS-AF1428M-M42B dimensions (mm)

Machine vision lenses

14mm, F2.8, Image circle φ30 mm, Recommended magnification 0.0027x ~ 0.0136x ~ 0.043x, M42-mount lens (LS-AF1428M-M42B)

Model LS-AF1428M-M42B

  • Focal length14 mm
  • Magnification0.0027x ~ 0.0136x ~ 0.043x
  • MountM42
  • SensorAPS-C
  • Working distance5000 ~ 1000 ~ 300 mm
  • ApertureF2.8 ~ F22
$639.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.31 kg shipping weight

Volume pricing, Net 30 or a formal quote?

14mm, F2.8, Image circle φ30 mm, Recommended magnification 0.0027x ~ 0.0136x ~ 0.043x, M42-mount lens. High-precision lens for 4K 7 μm line-scan cameras Very high resolving power even at maximum aperture F2.8

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-AF1428M-M42B

Optics

Focal length14 mm
F-numberF2.8 ~ F22
Image sizeΦ30 mm
Optical distortion-2.20%
Magnification range0.0027x ~ 0.0136x ~ 0.043x
Working distance range5000 ~ 1000 ~ 300 mm
Iris controlManual
Focus controlManual
Filter threadM86 × P1

Interfaces and I/O

Connector typeM42 × P1

Environment and compliance

Temperature-10 ~ 50°C
CertificationRoHS2.0

Mechanical

Flange back length12 mm
DimensionΦ89 ×78.8 mm
Shipping weight (estimated)0.31 kg
