Machine vision lenses

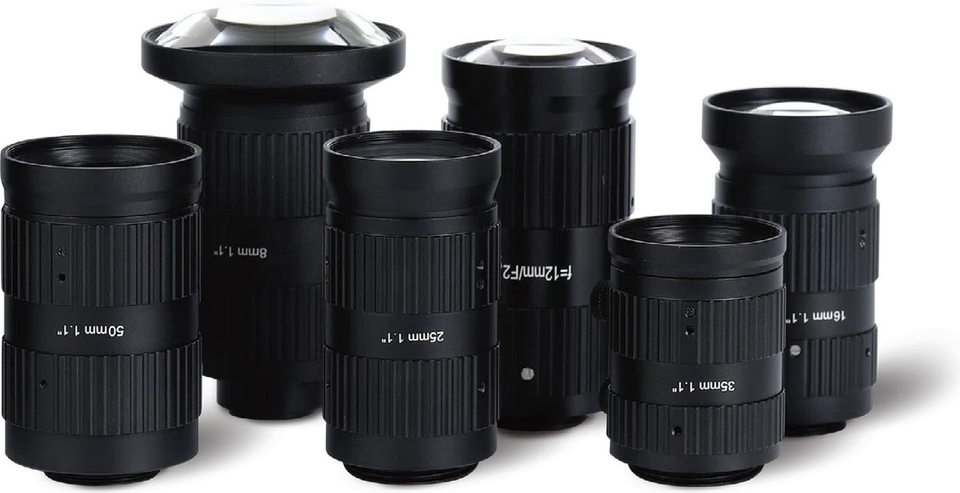

1-1.1 inch 20MP industrial lens (XTY..20C)
- 4 models
- from $219.00
- Series LENS-XTY-20C
The 1-1.1 inch 20MP industrial lens (XTY..20C) is a range of 4 machine vision lenses from LumaSpec Vision, from $219.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 16 mm, 1.1", 20MP, C-mount, 25 mm, 1.1", 20MP, C-mount, 35 mm, 1.1", 20MP, C-mount, 50 mm, 1.1", 20MP, C-mount
- Mount
- C-mount
- Resolution
- 16-25 MP
- Image circle
- 16-22 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1.1" - 1.2"
Features
- High resolution
- Low distortion
- Max support 1.1 Inch
All 4 models in the 1-1.1 inch 20MP industrial lens (XTY..20C)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-XTY1620C | 16 mm, 1.1", 20MP, C-mount | 16 | 100-INF. | < 0.3 | $219.00 | View |
| LS-XTY2520C | 25 mm, 1.1", 20MP, C-mount | 25 | 100-INF. | < 0.2 | $229.00 | View |
| LS-XTY3520C | 35 mm, 1.1", 20MP, C-mount | 35 | 200-INF. | < 0.1 | $239.00 | View |
| LS-XTY5020C | 50 mm, 1.1", 20MP, C-mount | 50 | 300-INF. | < 0.1 | $259.00 | View |
