Machine vision lenses

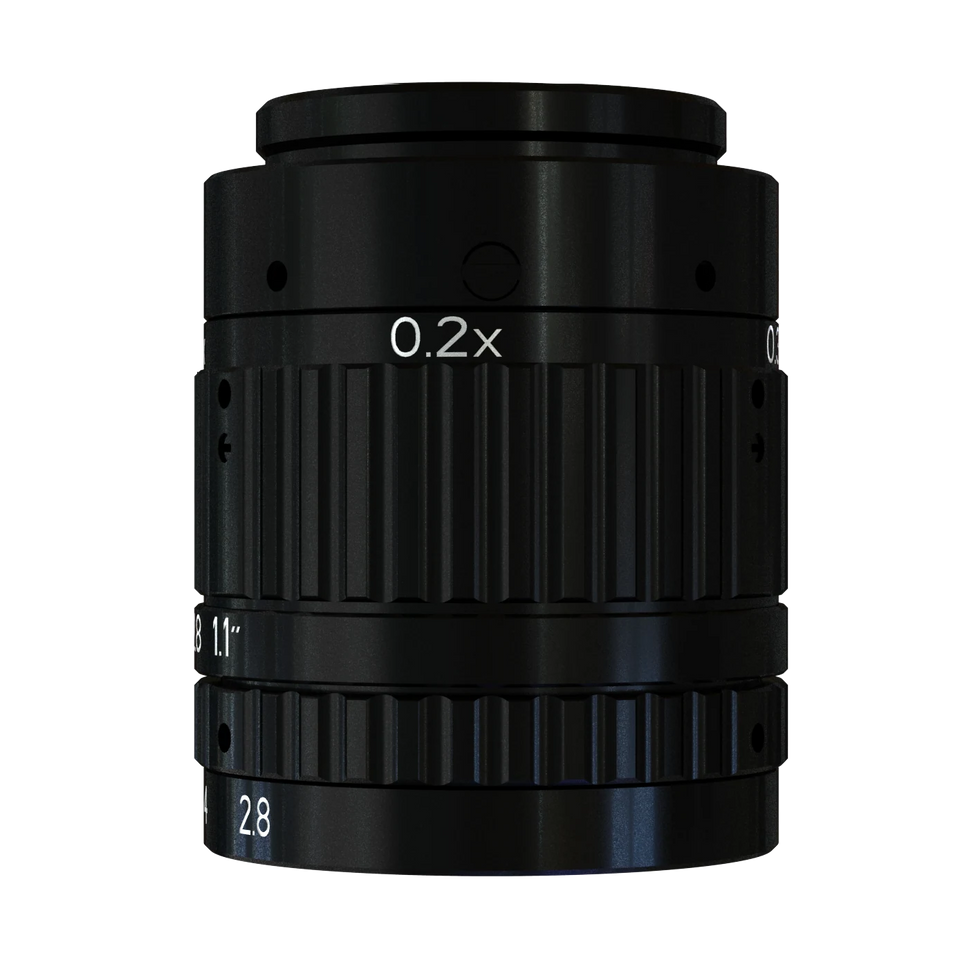

Macro Lens Series
- 6 models
- from $319.00
- Series LS-MACRO-LENS
The Macro Lens Series is a range of 6 machine vision lenses from LumaSpec Vision, from $319.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Image circle
- 8-11 mm, 16-22 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Mount
- C-mount
- Sensor format
- 2/3", 1.1" - 1.2"
Features
- Sharp macro imaging with high image uniformity
- Ultra-low distortion and high relative illumination
- Adjustable aperture, F2.8
- Compact size, maximum sensor format 1.1”
- High resolution with uniform image sharpness
- Low distortion and excellent relative illumination
- Excellent macro performance with strong optical performance at close range
- Adjustable aperture, F3.8
All 6 models in the Macro Lens Series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-KF2528M-ML | 25 mm | 0.4x ~ 0.25x ~ 0.1x | 65 ~ 103 ~ 260 mm | F2.8 ~ F16 | $319.00 | View |
| LS-KF1628M-ML | 16 mm | 0.25x ~ 0.1x ~ 0.03x | 52 ~ 152 ~ 546 mm | F2.8 ~ F16 | $319.00 | View |
| LS-KF3528M-ML | 35 mm | 0.7x ~ 0.5x ~ 0.25x | 59 ~ 78 ~ 150 mm | F2.8 ~ F16 | $339.00 | View |
| LS-KF5028M-ML | 50 mm | 0.8x ~ 0.65x ~ 0.5x | 95 ~ 109 ~ 132 mm | F2.8 ~ F16 | $359.00 | View |
| LS-MF7538M-ML | 75 mm | 0.46x ~ 0.24x ~ 0.16x | 250 ~ 400 ~ 550mm | F3.8 ~ F12 | $389.00 | View |
| LS-KF7538M-ML | 75 mm | 0.38x ~ 0.25x ~ 0.18x | 257 ~ 357 ~ 471 mm | F3.8 ~ F16 | $389.00 | View |
