Machine vision lenses

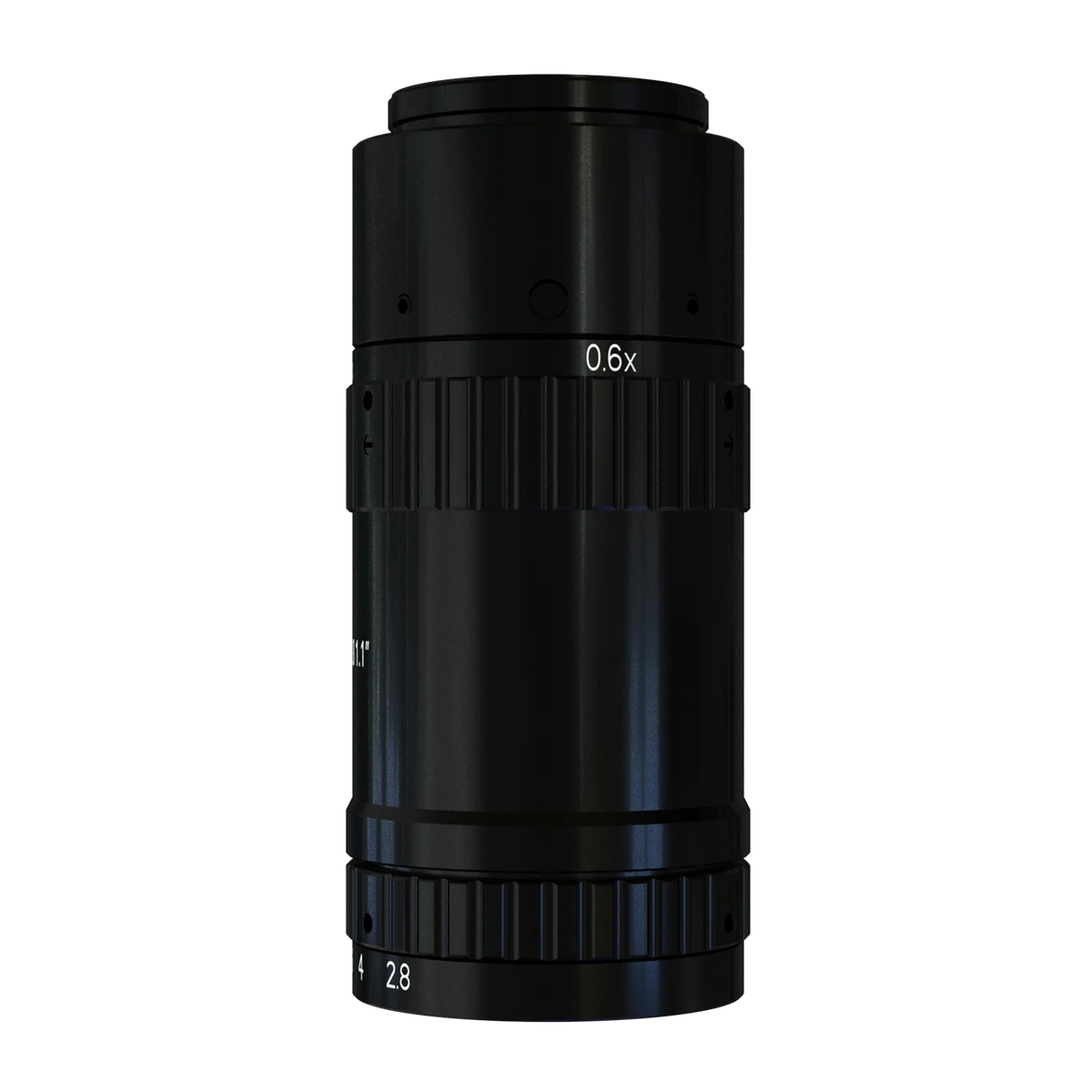

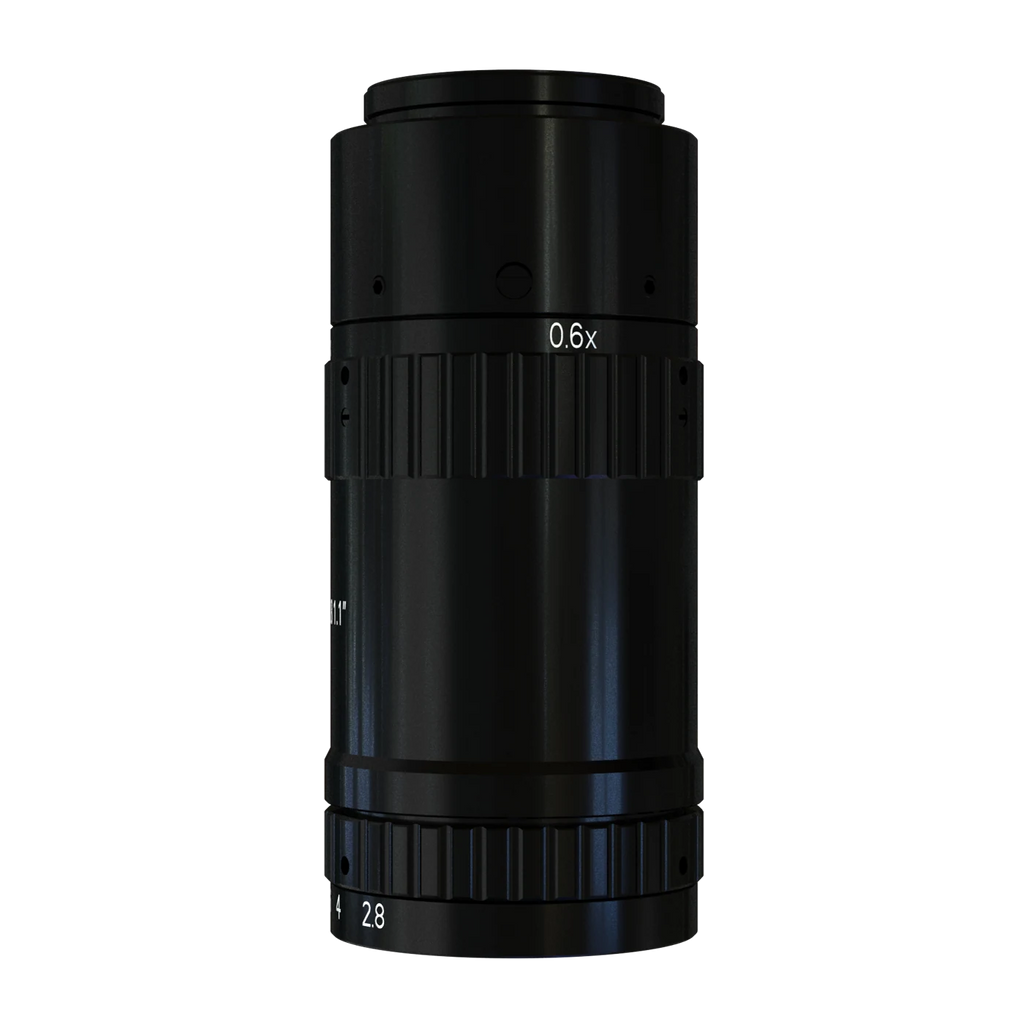

50mm, F2.8, 1.1", C-mount, Macro lens (95.4 mm (-0.8X) to 132.4 mm (-0.5X)) (LS-FFL-1457)
Model LS-KF5028M-ML
- Focal length50 mm
- Magnification0.8x ~ 0.65x ~ 0.5x
- MountC-mount
- Sensor1.1"
- Working distance95 ~ 109 ~ 132 mm
- ApertureF2.8 ~ F16
$359.00
Ships in 2-3 weeks
0.26 kg shipping weight
Volume pricing, Net 30 or a formal quote?
50mm, F2.8, 1.1", C-mount, Macro lens (95.4 mm (-0.8X) to 132.4 mm (-0.5X)). Sharp macro imaging with high image uniformity Ultra-low distortion and high relative illumination
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KF5028M-ML |
|---|
Optics
| Focal length | 50 mm |
|---|---|
| F-number | F2.8 ~ F16 |
| Image size | Φ17.6 mm(1.1”) |
| TV distortion | 0.05% |
| Magnification range | 0.8x ~ 0.65x ~ 0.5x |
| Working distance range | 95 ~ 109 ~ 132 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Flange back length | 17.526 mm |
|---|---|
| Dimension | Φ32 × 66.5~83 mm |
| Weight | 113.8 g |
| Shipping weight (estimated) | 0.26 kg |
Other models in the Macro Lens Series series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-KF2528M-ML | 25 mm · 0.4x ~ 0.25x ~ 0.1x | $319.00 | 5 in stock | View |
| LS-KF1628M-ML | 16 mm · 0.25x ~ 0.1x ~ 0.03x | $319.00 | 5 in stock | View |
| LS-KF3528M-ML | 35 mm · 0.7x ~ 0.5x ~ 0.25x | $339.00 | 3 in stock | View |
| LS-MF7538M-ML | 75 mm · 0.46x ~ 0.24x ~ 0.16x | $389.00 | 4 in stock | View |
| LS-KF7538M-ML | 75 mm · 0.38x ~ 0.25x ~ 0.18x | $389.00 | 4 in stock | View |
