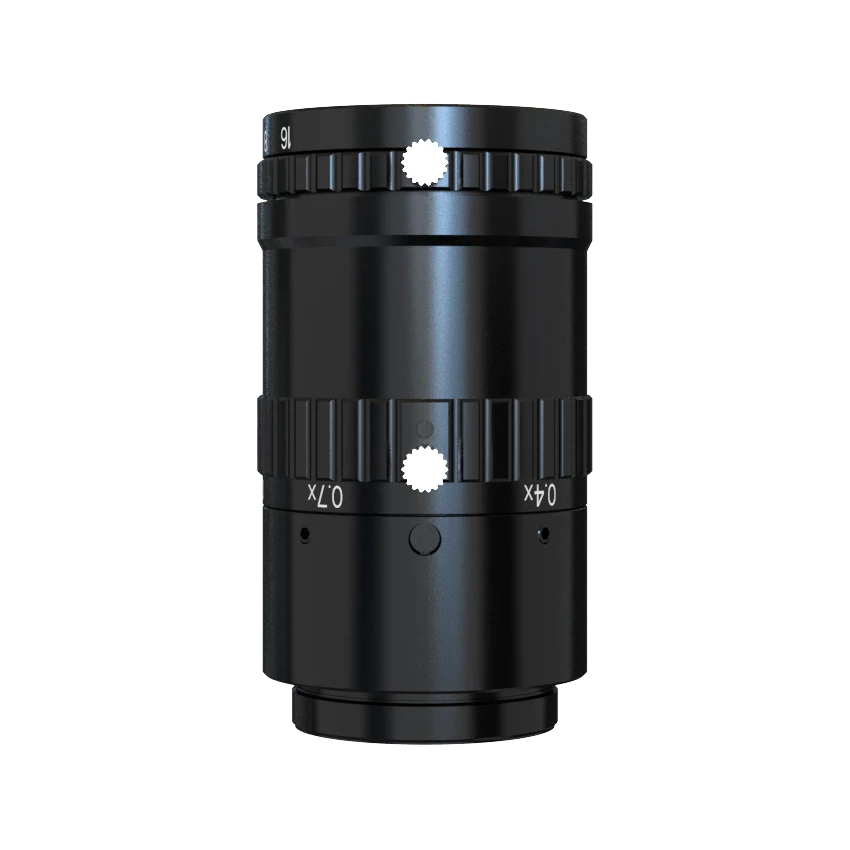

35mm, F2.8, 1.1", C-mount, Macro lens (59 mm (-0.7X) to 150 mm (-0.25X)) (LS-KF3528M-ML)
  • 35mm, F2.8, 1.1", C-mount, Macro lens (59 mm (-0.7X) to 150 mm (-0.25X)) (LS-KF3528M-ML)
  • LS-KF3528M-ML dimensions (mm)

Machine vision lenses

35mm, F2.8, 1.1", C-mount, Macro lens (59 mm (-0.7X) to 150 mm (-0.25X)) (LS-KF3528M-ML)

Model LS-KF3528M-ML

  • Focal length35 mm
  • Magnification0.7x ~ 0.5x ~ 0.25x
  • MountC-mount
  • Sensor1.1"
  • Working distance59 ~ 78 ~ 150 mm
  • ApertureF2.8 ~ F16
$339.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.24 kg shipping weight

Volume pricing, Net 30 or a formal quote?

35mm, F2.8, 1.1", C-mount, Macro lens (59 mm (-0.7X) to 150 mm (-0.25X)). Sharp macro imaging with high image uniformity Ultra-low distortion and high relative illumination

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-KF3528M-ML

Optics

Focal length35 mm
F-numberF2.8 ~ F16
Image sizeΦ17.6 mm(1.1”)
TV distortion0.05%
Magnification range0.7x ~ 0.5x ~ 0.25x
Working distance range59 ~ 78 ~ 150 mm
Iris controlManual
Focus controlManual
Filter threadM27 × P0.5

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10 ~ 50°C
CertificationRoHS2.0

Mechanical

Flange back length17.526 mm
DimensionΦ32 × 52.6~69.6 mm
Weight97.4 g
Shipping weight (estimated)0.24 kg

Other models in the Macro Lens Series series

See all 6 models
ModelSize / key dataPriceAvailabilityLink
LS-KF2528M-ML 25 mm · 0.4x ~ 0.25x ~ 0.1x $319.00 5 in stock View
LS-KF1628M-ML 16 mm · 0.25x ~ 0.1x ~ 0.03x $319.00 5 in stock View
LS-KF5028M-ML 50 mm · 0.8x ~ 0.65x ~ 0.5x $359.00 3 in stock View
LS-MF7538M-ML 75 mm · 0.46x ~ 0.24x ~ 0.16x $389.00 4 in stock View
LS-KF7538M-ML 75 mm · 0.38x ~ 0.25x ~ 0.18x $389.00 4 in stock View
