Machine vision lenses

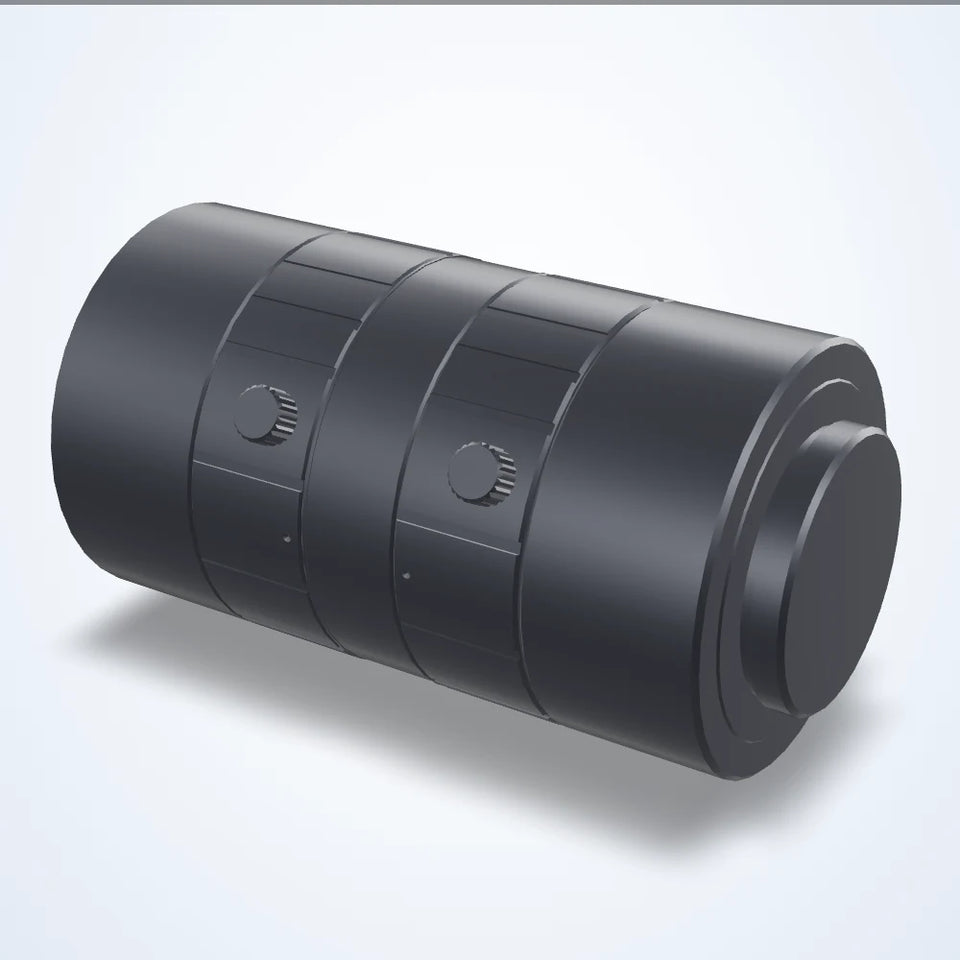

Lens series, 1.1", C-mount (S10)
- 6 models
- from $799.00
- Series LS-FFL-S10
The Lens series, 1.1", C-mount (S10) is a range of 6 machine vision lenses from LumaSpec Vision, from $799.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 8 mm, 12 mm, 16 mm, 25 mm, 35 mm, 50 mm
- Mount
- C-mount
- Image circle
- 16-22 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1.1" - 1.2"
All 6 models in the Lens series, 1.1", C-mount (S10)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0082 | 12 mm | f/1.8 | 39 mm × 39 mm × 67.6 mm | 62.5° x 47.8° | $799.00quote | View |
| LS-FFL-0084 | 16 mm | f/1.8 | 39 mm × 39 mm × 67.6 mm | 47.3° x 36.1° | $799.00quote | View |
| LS-FFL-0086 | 25 mm | f/1.8 | 39 mm × 39 mm × 67.6 mm | 32.9° x 24.8° | $799.00quote | View |
| LS-FFL-0088 | 35 mm | f/1.8 | 39 mm × 39 mm × 67.3 mm | 23.0° x 17.3° | $799.00quote | View |
| LS-FFL-0090 | 50 mm | f/2.4 | 39 mm × 39 mm × 68 mm | 16.6° x 12.5° | $819.00quote | View |
| LS-FFL-0092 | 8 mm | f/1.8 | 54 mm × 54 mm × 67 mm | 85.7° x 67.5° | $869.00quote | View |
