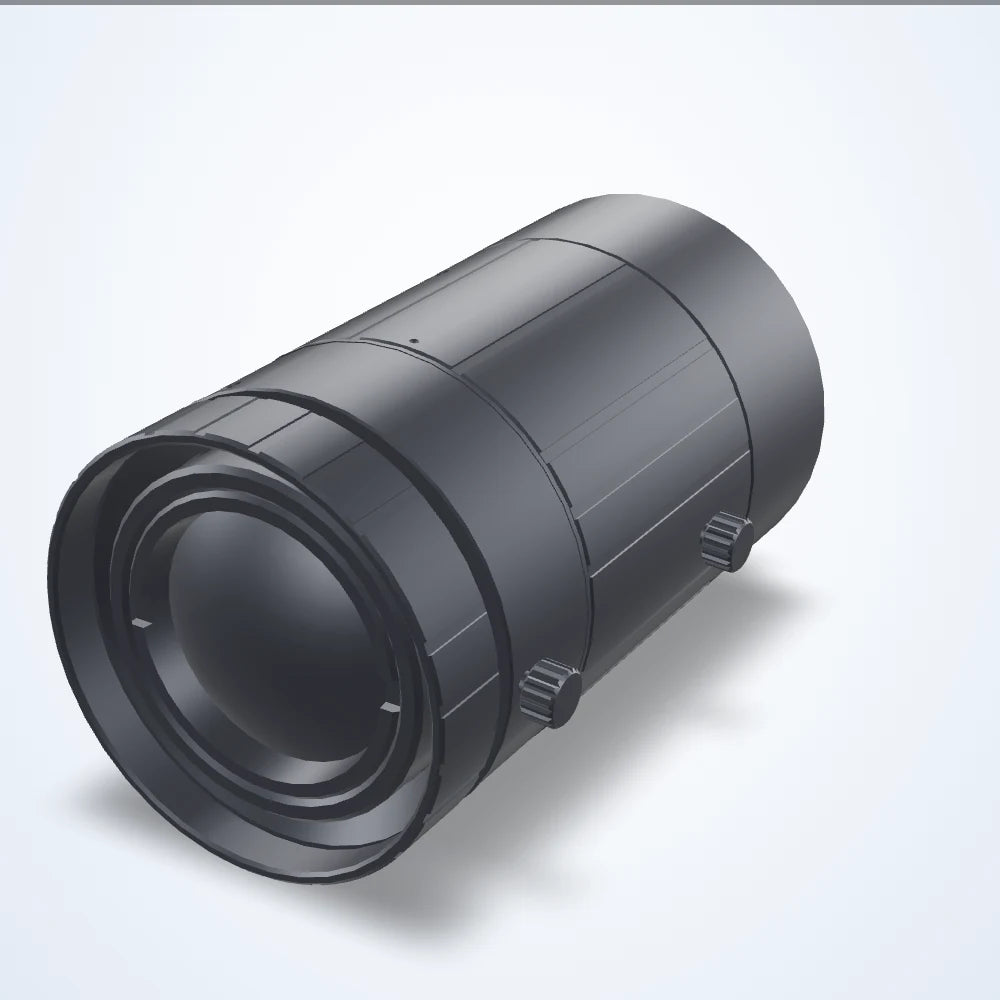

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 1.1", C-mount, 12-23 MP (LS-FFL-0090)
Model LS-FFL-0090
- Focal length50 mm
- MountC-mount
- Sensor1.1"
- Aperturef/2.4
- Resolution12-23
$819.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 200 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0090 |
|---|---|
| Minimum object distance | 200 mm |
| Angle of view @ 2/3″ | 16.6° x 12.5° |
| Chief ray angle | 4.84° |
| Distance between principle points | -28.43 mm |
| Entrance pupil position | -26.73 mm |
| Exit pupil position | -99.72 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -2.49 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | -30.92 mm |
| Spectrum | Visible |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture (max) | f/2.4 |
| Back focal length | 21.18 mm |
| Filter thread | M37.5-0.5 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | -0.17 |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution (MP) | 12-23 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 39 mm × 39 mm × 68 mm |
| Front diameter | 39 mm |
| Weight | 155 Grams |

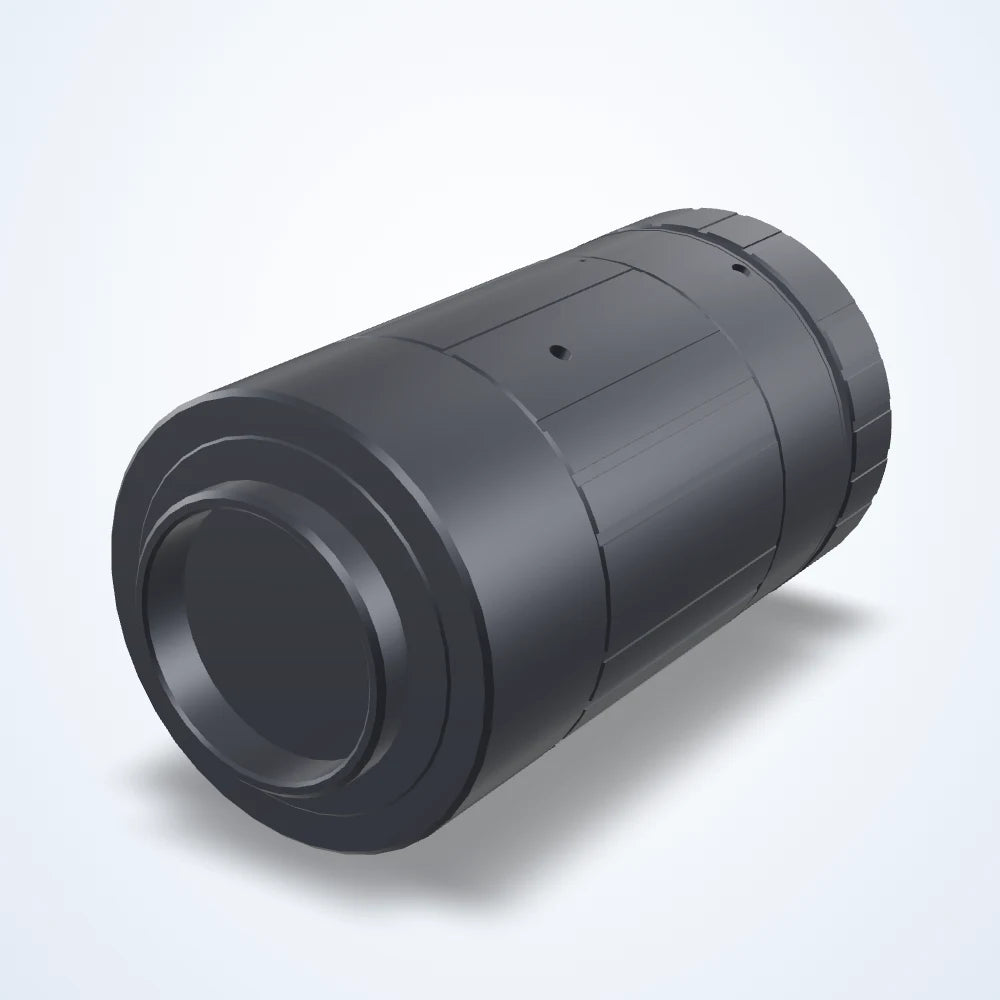

LS-FFL-0090
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 50 mm
- Sensor format
- 1.1"
- Mount
- C-mount

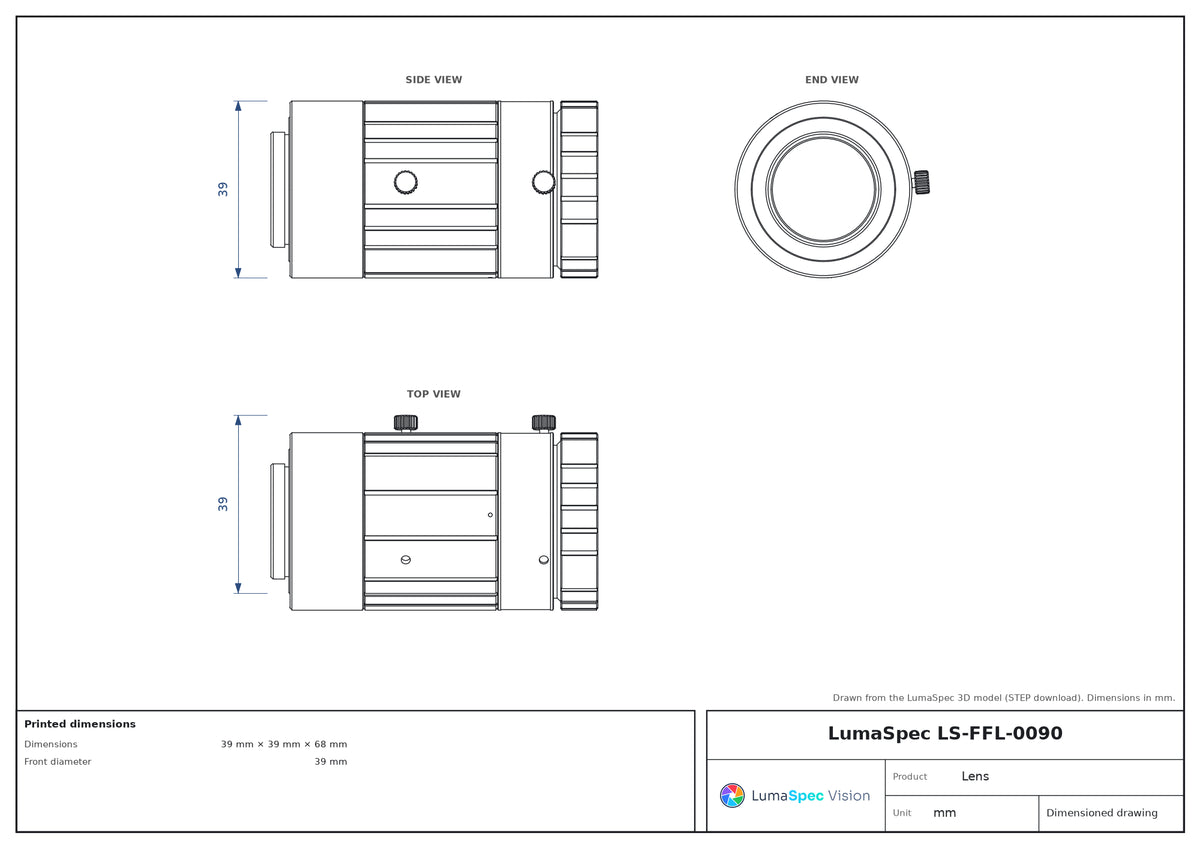

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
