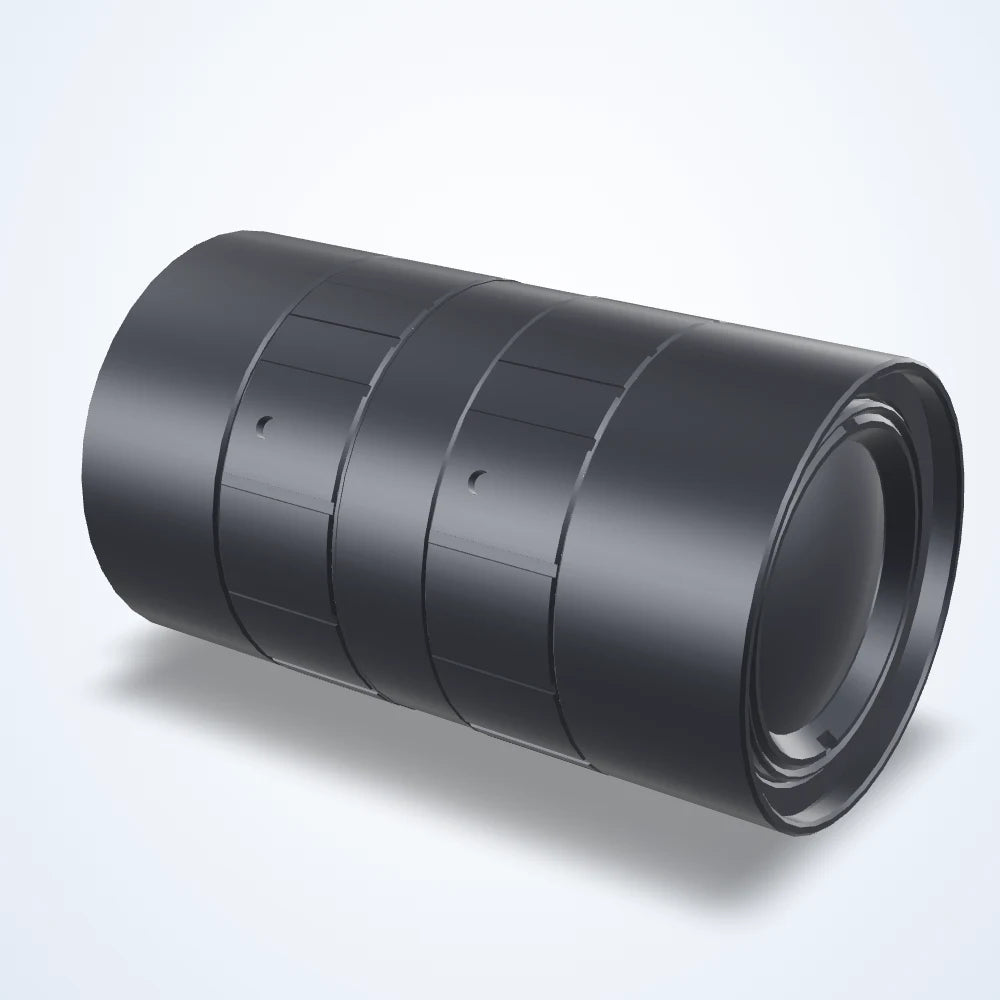

  • 16 mm lens, 1.1", C-mount, 12-23 MP (LS-FFL-0084) - view 2

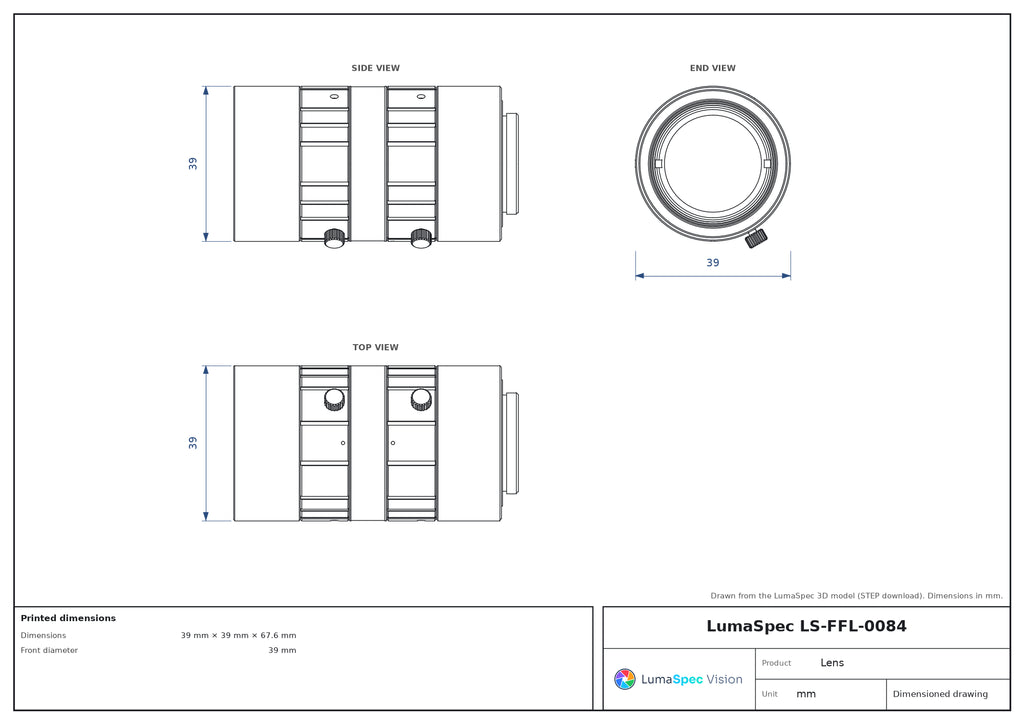

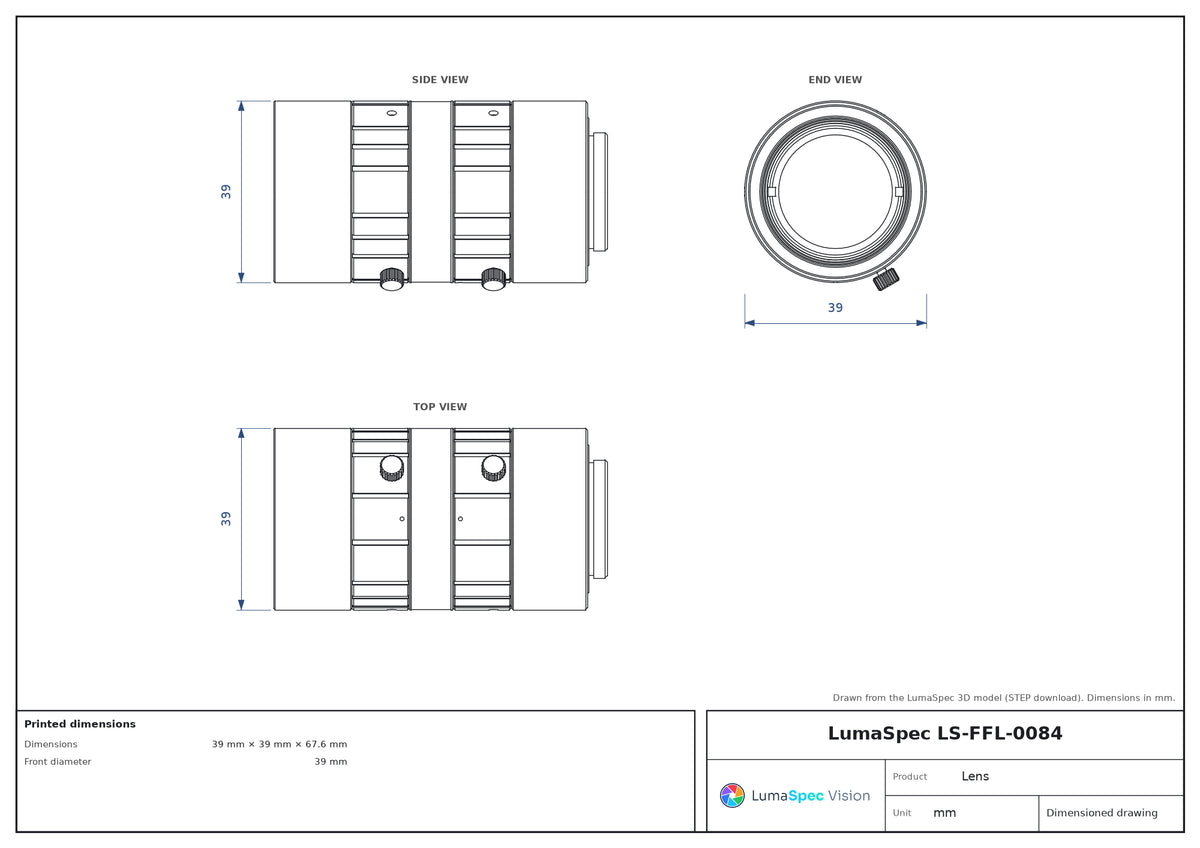

  • LS-FFL-0084 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

16 mm lens, 1.1", C-mount, 12-23 MP (LS-FFL-0084)

Model LS-FFL-0084

  • Focal length16 mm
  • MountC-mount
  • Sensor1.1"
  • Aperturef/1.8
  • Resolution12-23
$799.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

16 mm lens, 1.1", C-mount, 12-23 MP (LS-FFL-0084)LS-FFL-0084

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras. Minimum object distance 100 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0084
Minimum object distance100 mm
Angle of view @ 2/3″47.3° x 36.1°
Chief ray angle4.93°
Distance between principle points36.31 mm
Entrance pupil position-48.25 mm
Exit pupil position-88.43 mm
Flange back in air17.526 mm
Front principle point-35.21 mm
Lens typeFixed Focal Length
Rear principle point1.10 mm
SpectrumVisible

Optics

Focal length16 mm
Aperture (max)f/1.8
Back focal length21.85 mm
Filter threadM37.5-0.5
Focus controlManual
Iris controlManual
TV distortion (%)-0.8

Sensor and imaging

Sensor format1.1"
Resolution (MP)12-23

Environment and compliance

Operating temperature range-10 to +50°C

Mechanical

MountC-mount
Dimensions39 mm × 39 mm × 67.6 mm
Front diameter39 mm
Weight180 Grams

LS-FFL-0084

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-FFL-0084 — Lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Focal length
16 mm
Sensor format
1.1"
Mount
C-mount

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
