35 mm lens, 1.1", C-mount (LS-FFL-0088)

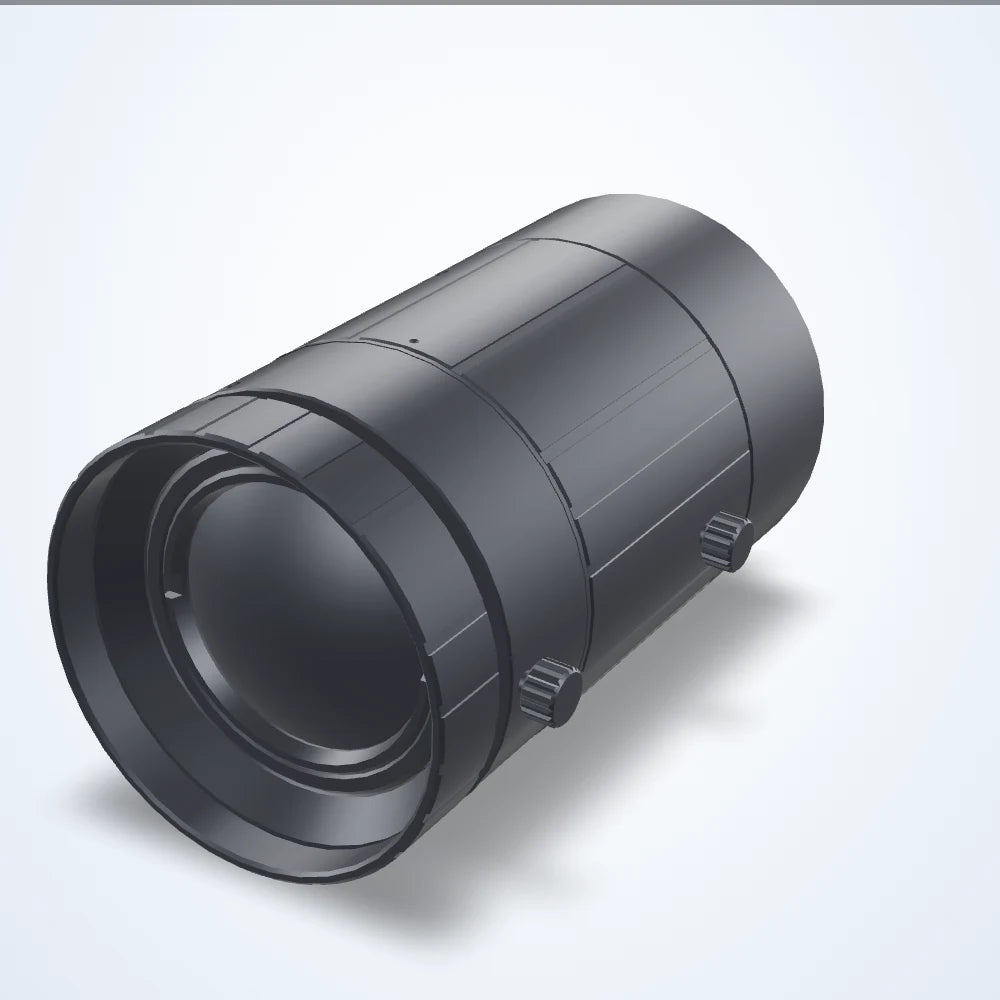

  • 35 mm lens, 1.1", C-mount (LS-FFL-0088)

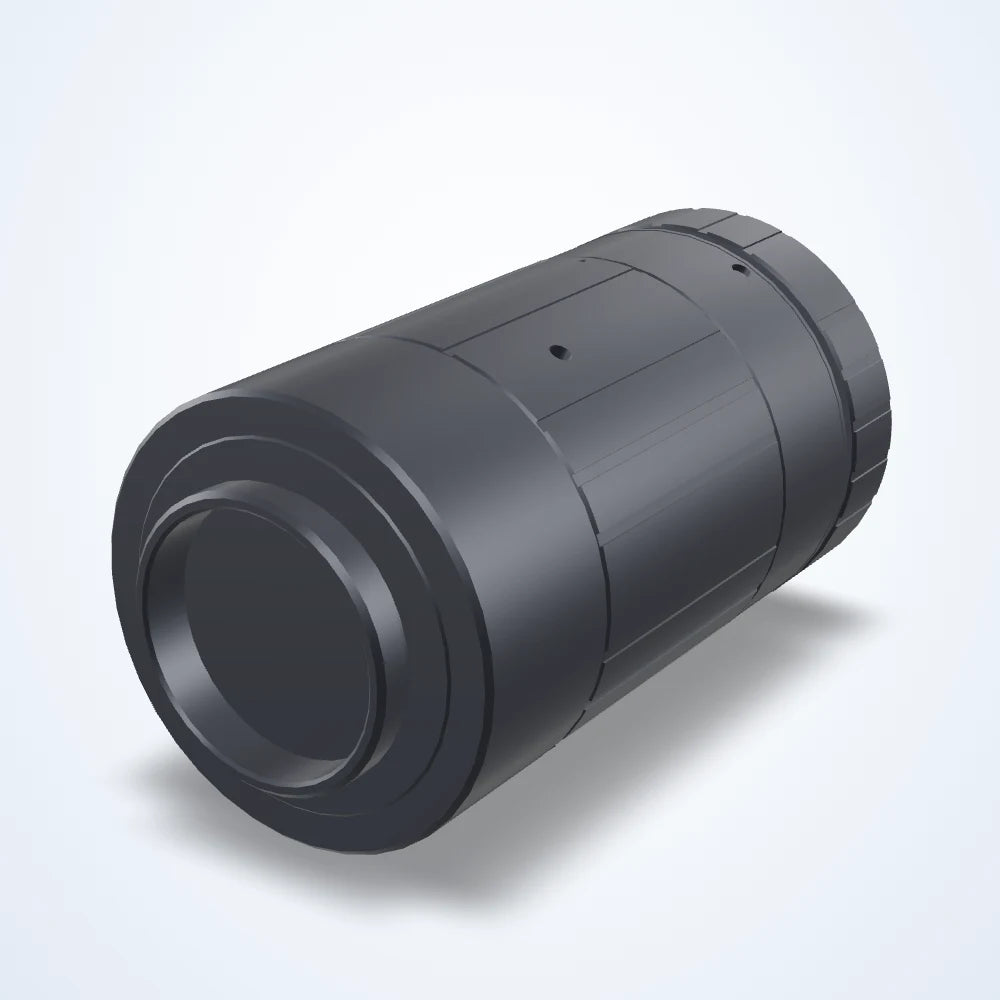

  • 35 mm lens, 1.1", C-mount (LS-FFL-0088) - view 2

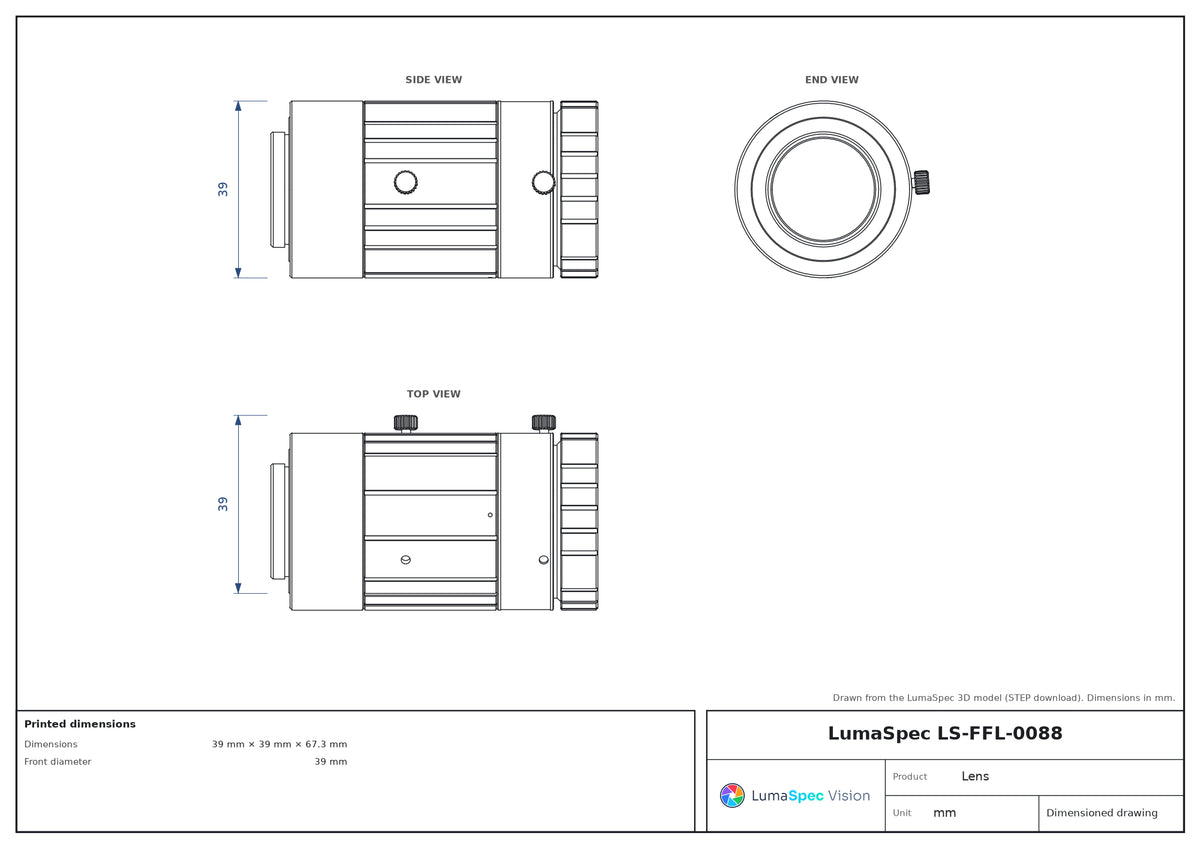

  • LS-FFL-0088 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

35 mm lens, 1.1", C-mount (LS-FFL-0088)

Model LS-FFL-0088

  • Focal length35 mm
  • MountC-mount
  • Sensor1.1"
  • Aperturef/1.8
  • Resolution12-23
$799.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

35 mm lens, 1.1", C-mount (LS-FFL-0088)LS-FFL-0088

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras. Minimum object distance 200 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0088
Minimum object distance200 mm
Angle of view @ 2/3″23.0° x 17.3°
Chief ray angle4.53°
Distance between principle points-12.71 mm
Entrance pupil position-26.59 mm
Exit pupil position-102.02 mm
Flange back in air17.526 mm
Front principle point-4.54 mm
Lens typeFixed Focal Length
Rear principle point-17.25 mm
SpectrumVisible

Optics

Focal length35 mm
Aperture (max)f/1.8
Back focal length21.30 mm
Filter threadM37.5-0.5
Focus controlManual
Iris controlManual
TV distortion (%)-0.32

Sensor and imaging

Sensor format1.1"
Resolution (MP)12-23

Environment and compliance

Operating temperature range-10 to +50°C

Mechanical

MountC-mount
Dimensions39 mm × 39 mm × 67.3 mm
Front diameter39 mm
Weight165 Grams
