Rendered illustration: the actual product may differ in appearance.
Machine vision lenses

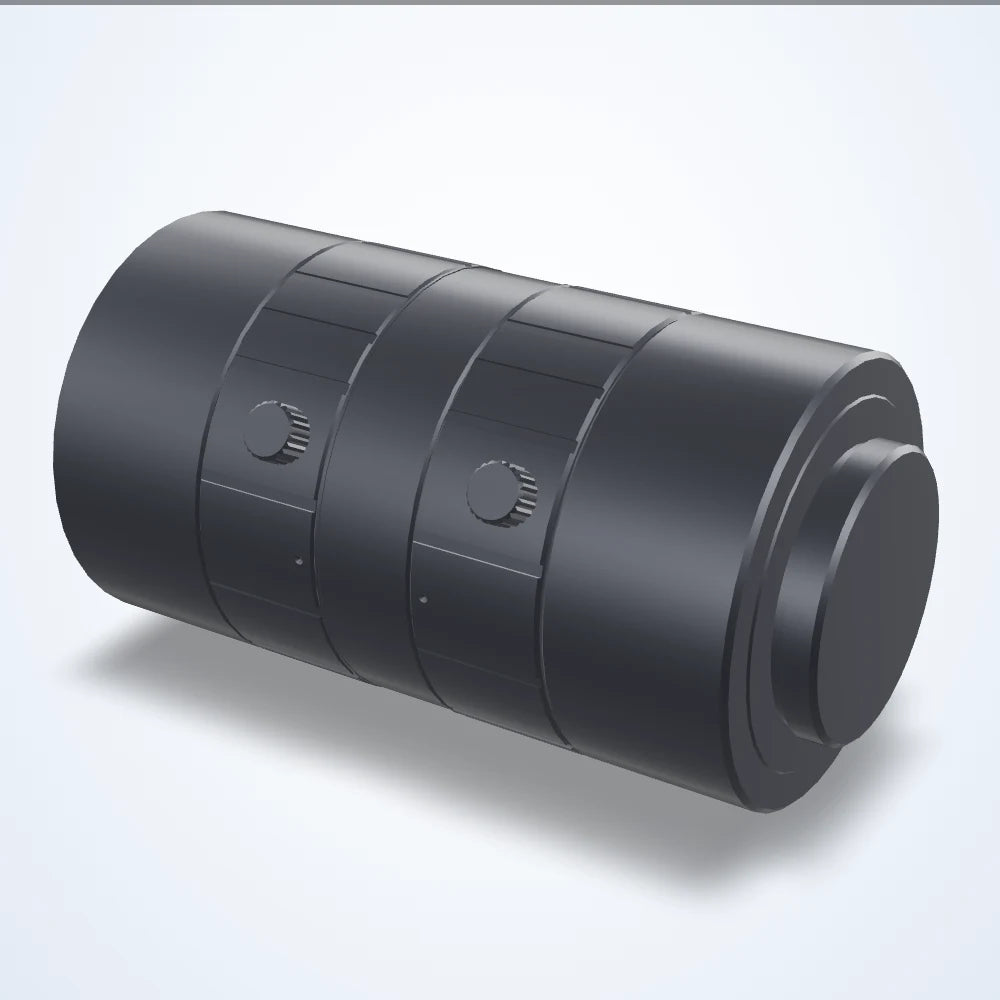

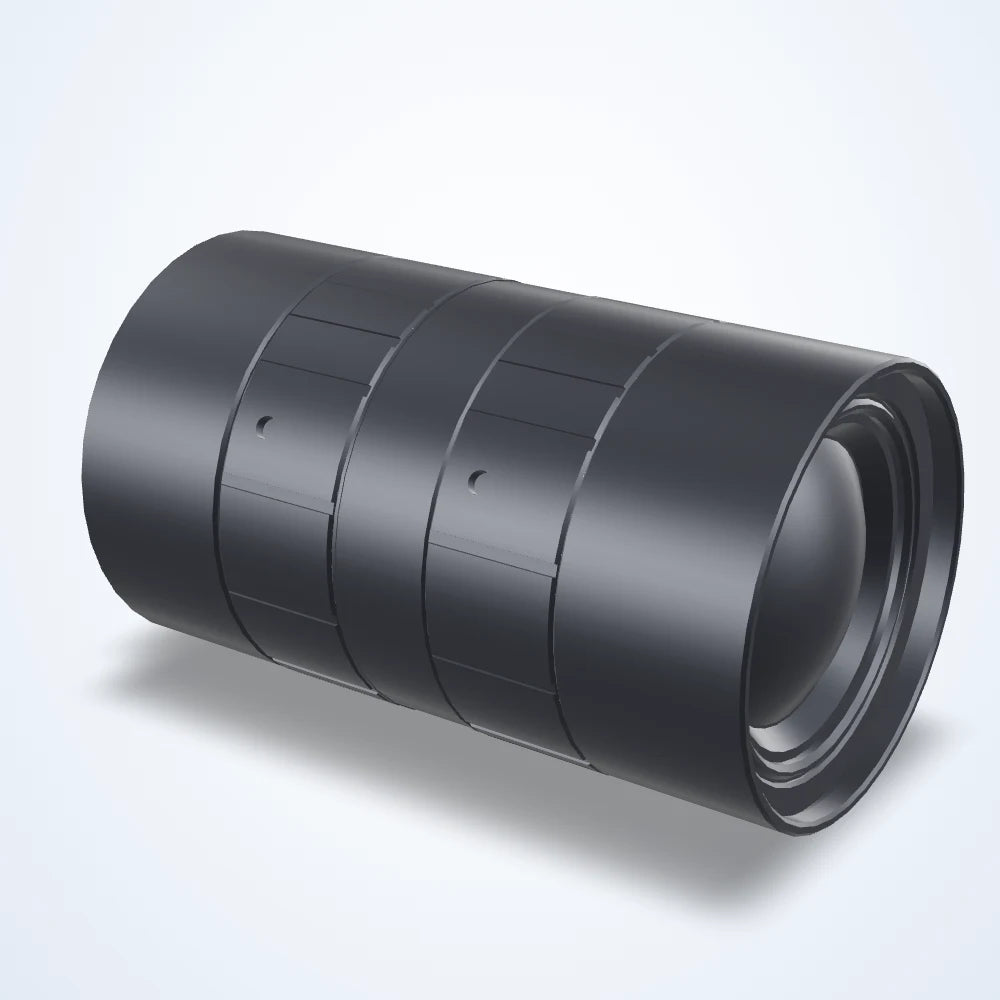

12 mm lens, 1.1", C-mount (LS-FFL-0082)
Model LS-FFL-0082
- Focal length12 mm
- MountC-mount
- Sensor1.1"
- Aperturef/1.8
- Resolution12-23
$799.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0082 |
|---|---|
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 62.5° x 47.8° |
| Chief ray angle | 4.53° |
| Distance between principle points | 45.62 mm |
| Entrance pupil position | -51.00 mm |
| Exit pupil position | -93.66 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -40.46 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | 5.16 mm |
| Spectrum | Visible |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture (max) | f/1.8 |
| Back focal length | 21.90 mm |
| Filter thread | M37.5-0.5 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | -2.82 |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution (MP) | 12-23 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

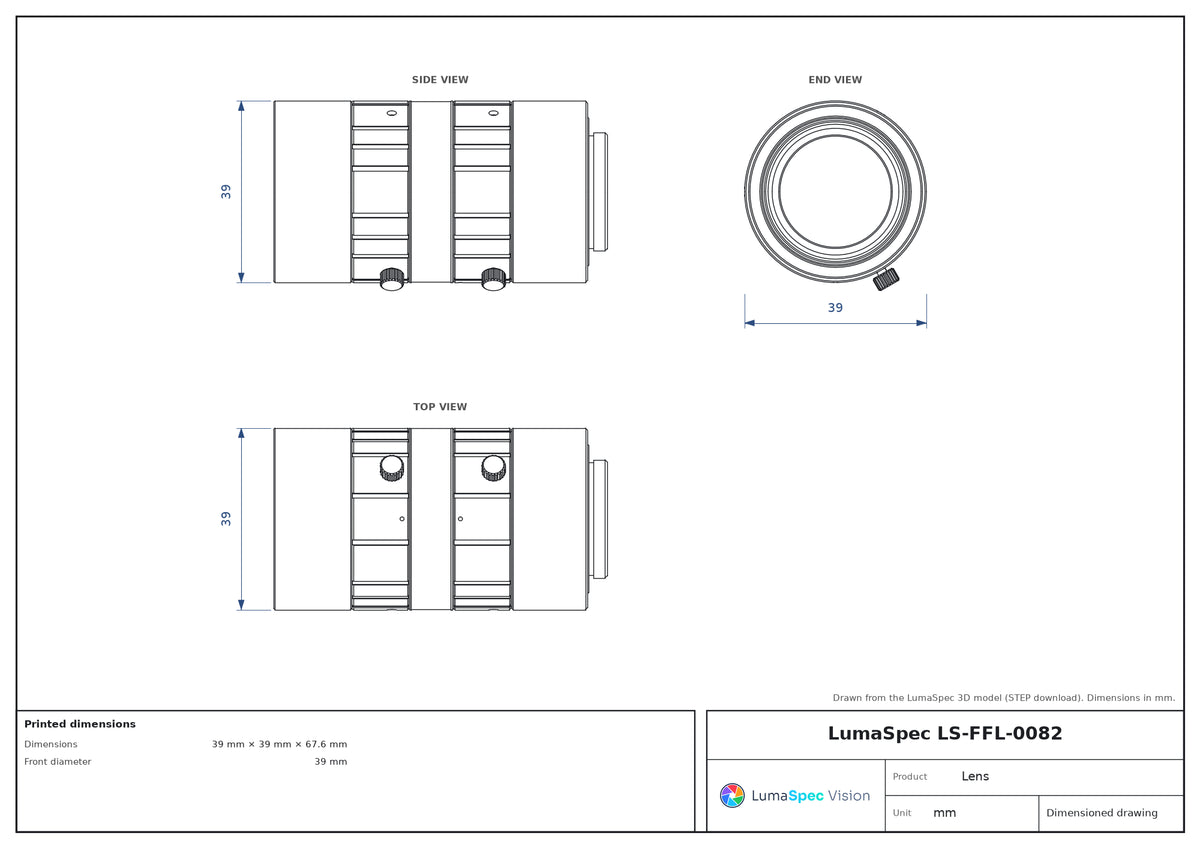

| Dimensions | 39 mm × 39 mm × 67.6 mm |
| Front diameter | 39 mm |
| Weight | 180 Grams |
