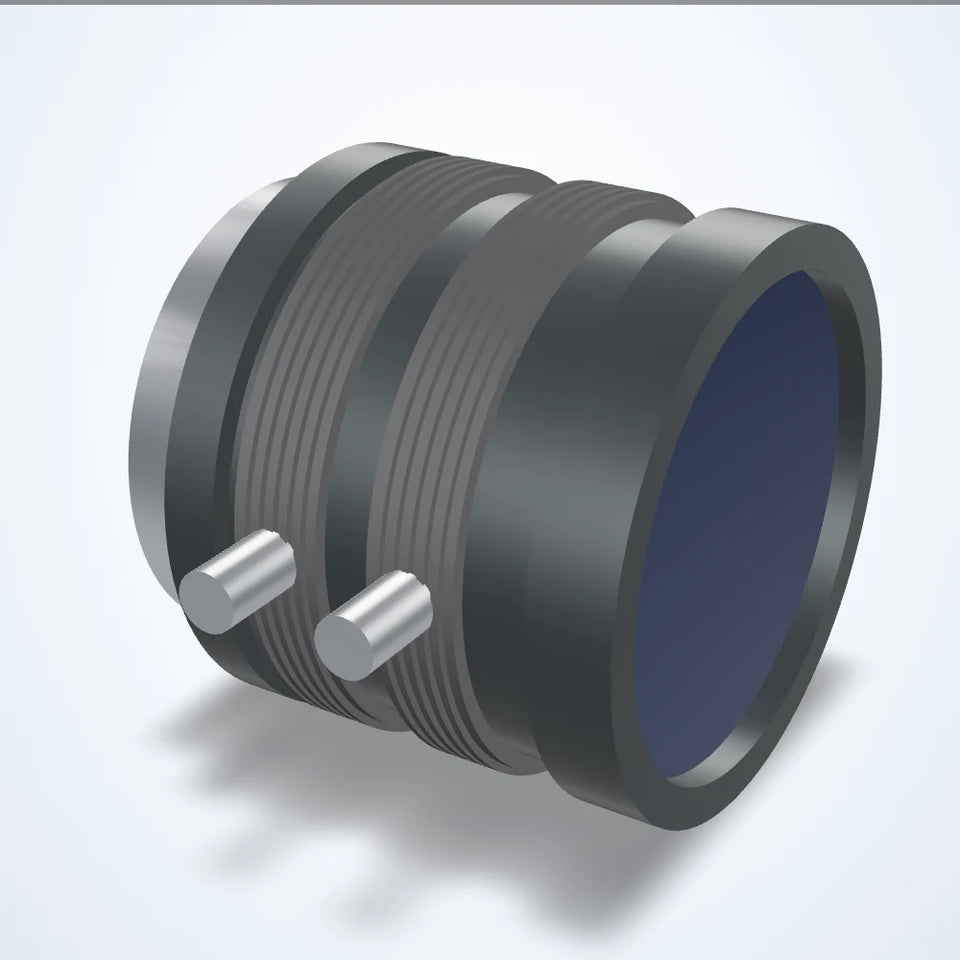

Lens series, 2/3", C-mount (S38)

Machine vision lenses

Lens series, 2/3", C-mount (S38)

  • 6 models
  • from $189.00
  • Series LS-FFL-S38

The Lens series, 2/3", C-mount (S38) is a range of 6 machine vision lenses from LumaSpec Vision, from $189.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 6 models Series datasheet (PDF)

The series at a glance

Sizes / versions
8 mm, 12 mm, 16 mm, 25 mm, 35 mm, 75 mm
Mount
C-mount
Image circle
8-11 mm
Focal length
6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
Sensor format
2/3"

All 6 models in the Lens series, 2/3", C-mount (S38)

Link
LS-FFL-026116 mm1.4-1630.5 x 2530.9 x 23.2 deg$189.00quoteView
LS-FFL-026325 mm1.6-1630.5 x 25.520.0 x 15.0 deg$189.00quoteView
LS-FFL-026535 mm2.1-2230.5 x 3214.3 x 10.8 deg$189.00quoteView
LS-FFL-02578 mm1.4-1630.5 x 2759.3 x 45.2 deg$209.00quoteView
LS-FFL-025912 mm1.8-1630.5 x 2740.9 x 30.9 deg$209.00quoteView
LS-FFL-026775 mm3.9-3230.5 x 65.56.9 x 5.2 deg$209.00quoteView
