Machine vision lenses

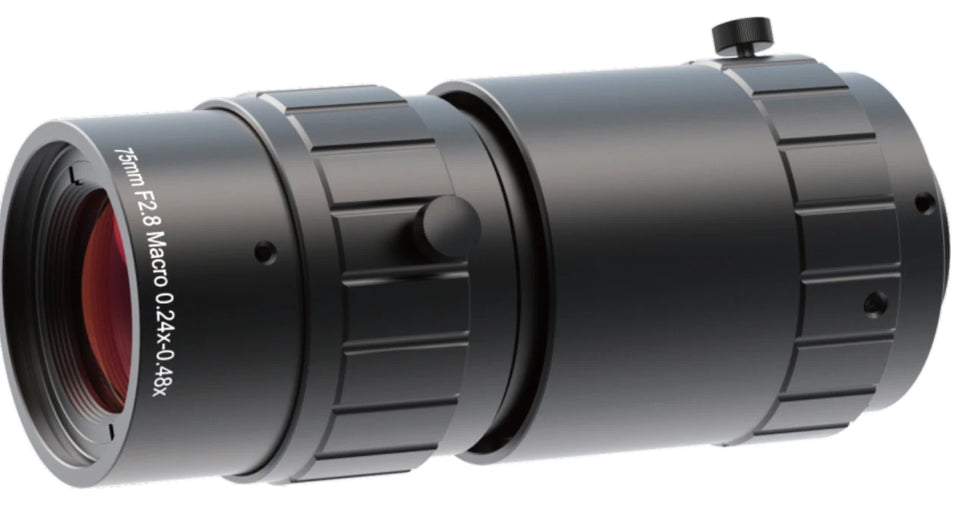

1.1 inch macro 12 MP industrial lens (LS-FFL-S73)
- 8 models
- from $499.00
- Series LS-FFL-S73
The 1.1 inch macro 12 MP industrial lens (LS-FFL-S73) is a range of 8 machine vision lenses from LumaSpec Vision, from $499.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 25 mm, 1.1", 25 mm, 1.1", C-mount, 35 mm, 1.1", 35 mm, 1.1", C-mount, 50 mm, 1.1", 50 mm, 1.1", C-mount, 75 mm, 1.1", 75 mm, 1.1", C-mount
- Mount
- C-mount
- Image circle
- 16-22 mm
- Focal length
- 25-50 mm, 50-100 mm
- Type
- Macro / special
- Sensor format
- 1.1" - 1.2"
Features
- Short working distance
- Anti-knock function
- Ultra low distortion < 0.03%
- dia. 18.4mm image
- Magnification from 0.05 to 0.82 optional
- Supports 12 million high resolution cameras
- Replaces telecentric lens
- Ultra low distortion 0.03%
Typical uses
- AOI, SPI
- Semiconductor
- Fastener inspection
- SMT
- 3C
- Food and drug
All 8 models in the 1.1 inch macro 12 MP industrial lens (LS-FFL-S73)
| Link | |||||
|---|---|---|---|---|---|
| LS-FFL-0391 | 25 mm, 1.1", C-mount | 25 | 142.0 | $499.00 | View |
| LS-FFL-0392 | 25 mm, 1.1" | 25 | 62-251 | $499.00 | View |
| LS-FFL-0393 | 35 mm, 1.1", C-mount | 35 | 101.5 | $519.00 | View |
| LS-FFL-0394 | 35 mm, 1.1" | 35 | 56.2-129.8 | $519.00 | View |
| LS-FFL-0395 | 50 mm, 1.1", C-mount | 50 | 122.0 | $549.00 | View |
| LS-FFL-0396 | 50 mm, 1.1" | 50 | 97.14-127.17 | $549.00 | View |
| LS-FFL-0397 | 75 mm, 1.1", C-mount | 75 | 253.0 | $589.00 | View |
| LS-FFL-0398 | 75 mm, 1.1" | 75 | 202.88-344.28 | $589.00 | View |
