Representative photo of this series
Machine vision lenses
1.1 inch macro 12 MP industrial lens, 25 mm, 1.1" (LS-FFL-0392)
Model LS-FFL-0392
- Focal length25 mm
- Magnification0.1X / 0.2X / 0.4X
- MountC-mount
- Sensor1.1"
- Working distance62-251 mm
- Aperture3.5-16
$499.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.1 inch macro (microspur) 12 million pixel industrial lenses: short working distance, ultra low distortion (< 0.03%), dia. 18.4mm image, magnification 0.05 to 0.82 optional; can replace a telecentric lens.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0392 |
|---|---|
| Format | 1.1" |
| Supporting target surface | 1/1.8", 2/3", 1", 1.1" |
Optics
| Back focal length | 17.526 |
|---|---|
| Focal length (mm) | 25 |
| Magnification | 0.1X / 0.2X / 0.4X |
| FOV (at each magnification) | 188.5 / 95.1 / 48 |
| WD (at each magnification) | 251 / 183 / 62 |
| Distortion (at each magnification) | 0.81% / 0.05% / 0.74% |
| Aperture range | 3.5-16 |
| Working distance (mm) | 62-251 |
Sensor and imaging
| Image space resolution | 3.5 μm |
|---|---|
| Resolution | 12 MP |
| Sensor format | 1.1" |
Light
| Relative illuminance | >90% |
|---|
Mechanical
| Mount | C |
|---|---|
| Filter size (mm) | M37x0.5 |

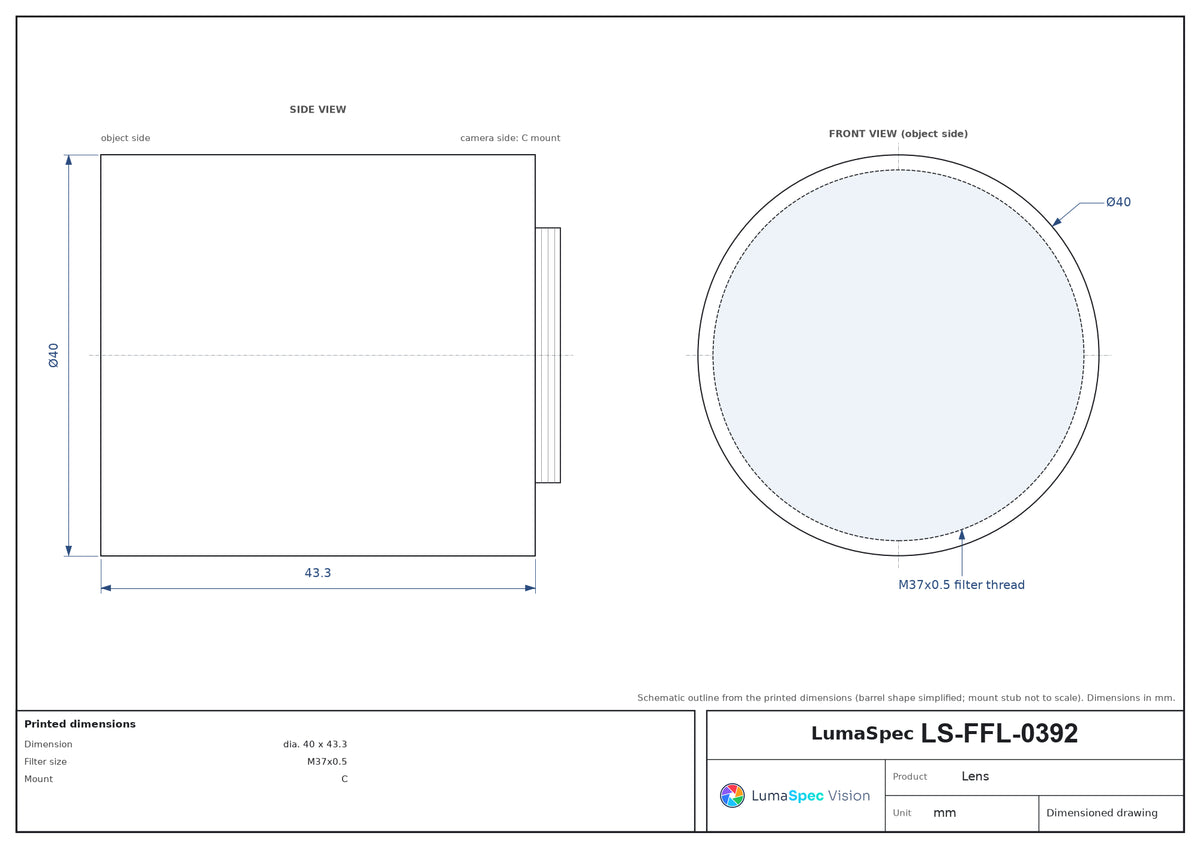

| Dimension (mm) | dia. 40 x 43.3 |
| Shipping weight | 0.38 kg |
