Machine vision lenses
1.1 inch macro 12 MP industrial lens, 50 mm, 1.1" (LS-FFL-0396)
Model LS-FFL-0396
- Focal length50 mm
- Magnification0.46X / 0.59X / 0.82X
- MountC-mount
- Sensor1.1"
- Working distance97.14-127.17 mm
- Aperture2.8-16
$549.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.1 inch macro (microspur) 12 million pixel industrial lenses: short working distance, ultra low distortion (< 0.03%), dia. 18.4mm image, magnification 0.05 to 0.82 optional; can replace a telecentric lens.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0396 |
|---|---|
| Format | 1.1" |
| Supporting target surface | 1/1.8", 2/3", 1", 1.1" |
Optics
| Back focal length | 17.526 |
|---|---|
| Focal length (mm) | 50 |
| Magnification | 0.46X / 0.59X / 0.82X |
| FOV (at each magnification) | 41.33 / 32.38 / 23.21 |
| WD (at each magnification) | 127.17 / 109.75 / 97.14 |
| Distortion (at each magnification) | 0.17% / 0.04% / 0.08% |
| Aperture range | 2.8-16 |
| Working distance (mm) | 97.14-127.17 |
Sensor and imaging
| Image space resolution | 3.5 μm |
|---|---|
| Resolution | 12 MP |
| Sensor format | 1.1" |
Light
| Relative illuminance | >90% |
|---|
Mechanical
| Mount | C |
|---|---|
| Filter size (mm) | M34x0.5 |

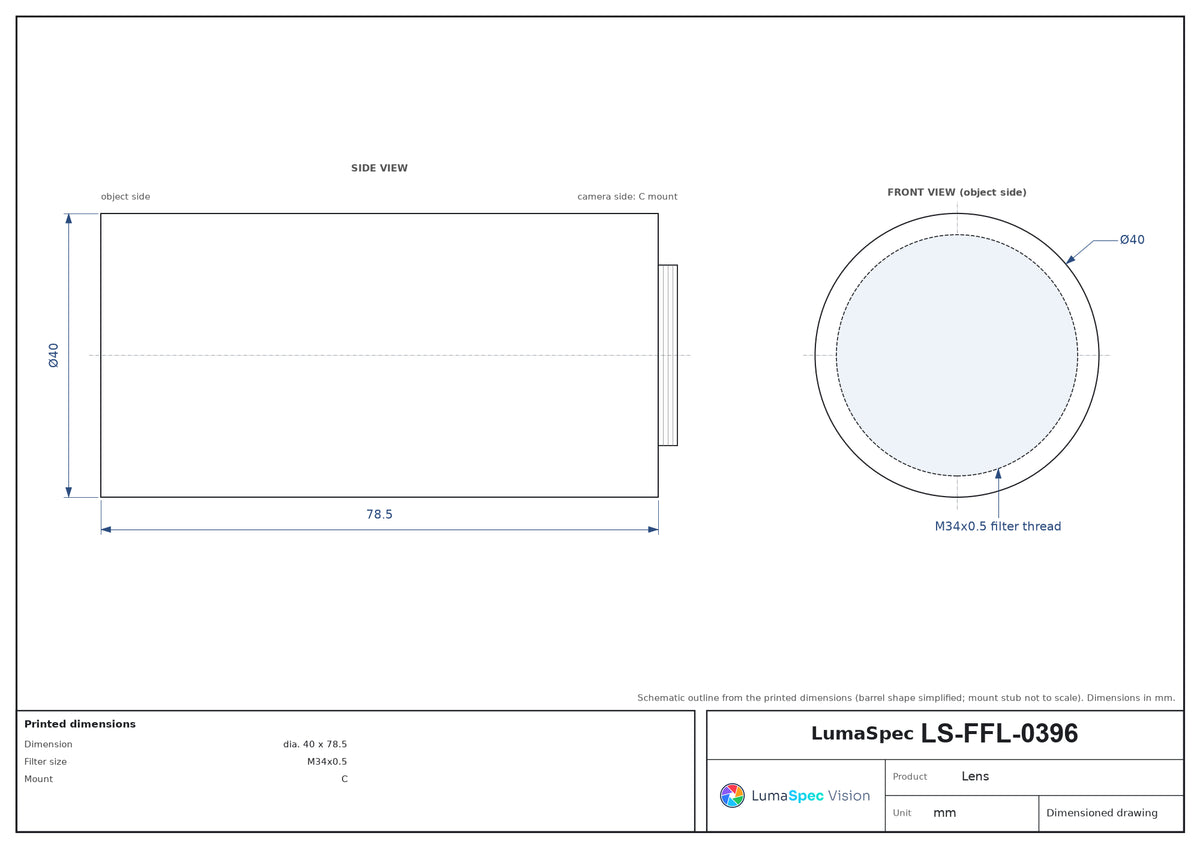

| Dimension (mm) | dia. 40 x 78.5 |
| Shipping weight | 0.38 kg |
Other models in the 1.1 inch macro 12 MP industrial lens (LS-FFL-S73) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0391 | 25 mm, 1.1", C-mount | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-0392 | 25 mm, 1.1" | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-0393 | 35 mm, 1.1", C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-0394 | 35 mm, 1.1" | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-0395 | 50 mm, 1.1", C-mount | $549.00 | Ships in 2-3 weeks | View |
| LS-FFL-0397 | 75 mm, 1.1", C-mount | $589.00 | Ships in 2-3 weeks | View |
| LS-FFL-0398 | 75 mm, 1.1" | $589.00 | Ships in 2-3 weeks | View |
