Machine vision lenses

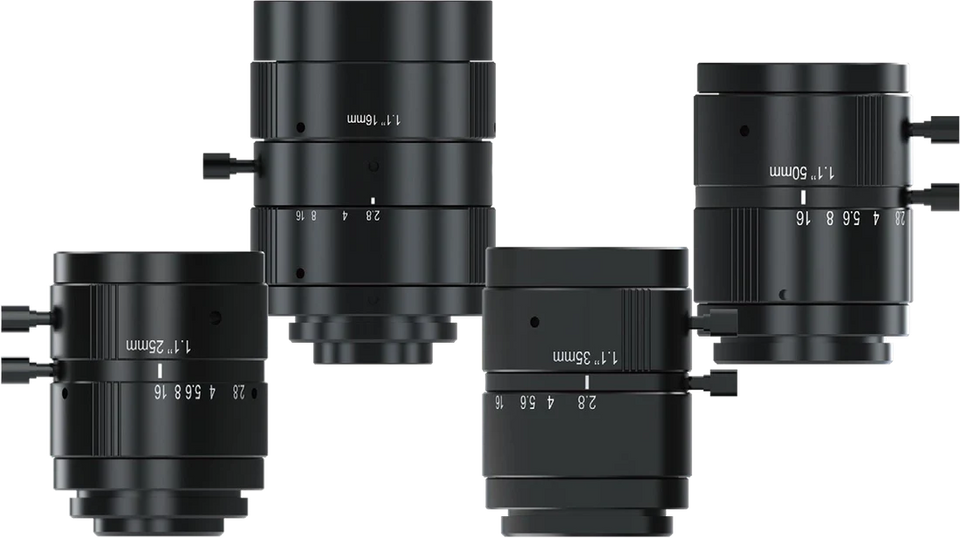

1-1.1 inch 20MP industrial lens (LS-FFL-S48)
- 4 models
- from $349.00
- Series LS-FFL-S48
The 1-1.1 inch 20MP industrial lens (LS-FFL-S48) is a range of 4 machine vision lenses from LumaSpec Vision, from $349.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 16 mm, 1.1", 20MP, C-mount, 25 mm, 1.1", 20MP, C-mount, 35 mm, 1.1", 20MP, C-mount, 50 mm, 1.1", 20MP, C-mount
- Mount
- C-mount
- Resolution
- 16-25 MP
- Image circle
- 16-22 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1.1" - 1.2"
Features
- High resolution
- Low distortion
- Max support 1.1 Inch
All 4 models in the 1-1.1 inch 20MP industrial lens (LS-FFL-S48)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0300 | 16 mm, 1.1", 20MP, C-mount | 16 | 100-1500 | < 0.20 | $349.00 | View |
| LS-FFL-0303 | 50 mm, 1.1", 20MP, C-mount | 50 | 300-1000 | < 0.75 | $409.00 | View |
| LS-FFL-0302 | 35 mm, 1.1", 20MP, C-mount | 35 | 150-1000 | < 0.55 | $449.00 | View |
| LS-FFL-0301 | 25 mm, 1.1", 20MP, C-mount | 25 | 100-1000 | < 0.50 | $519.00 | View |
