Machine vision lenses

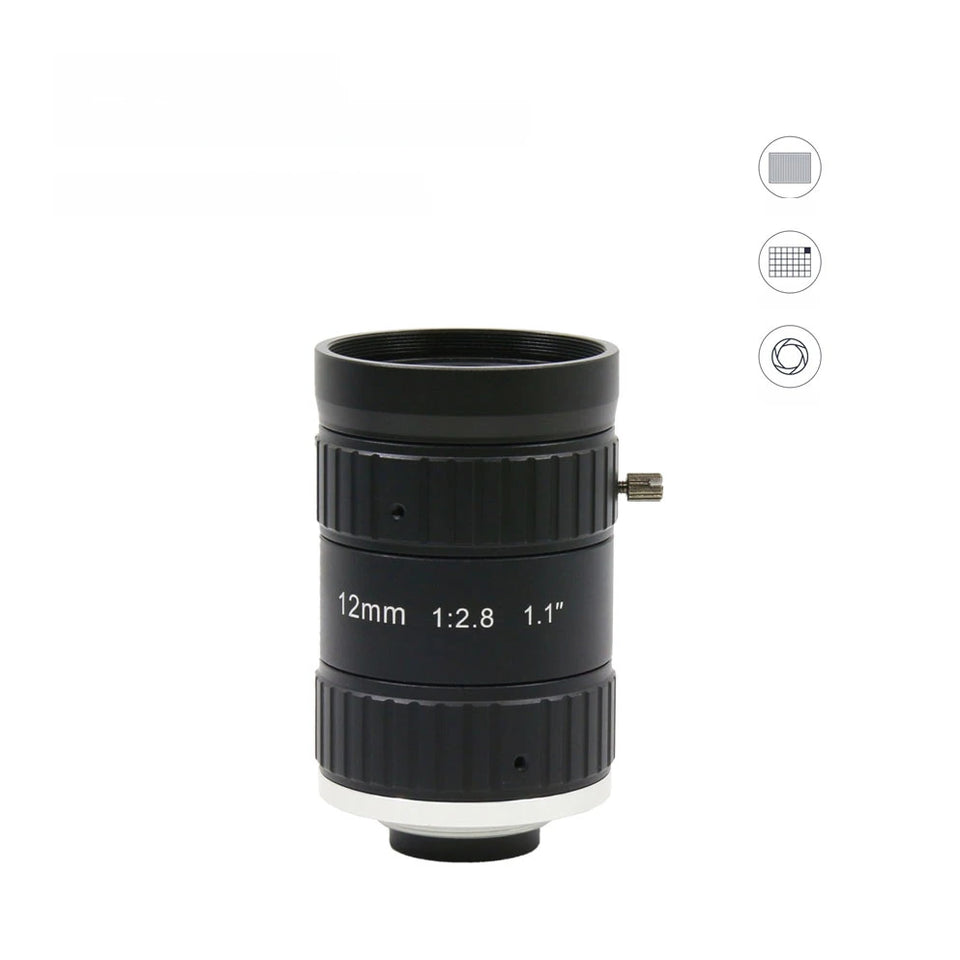

1.1" 25 megapixel ultra-high resolution FA lens (LS-FFL-S159)
- 6 models
- from $669.00
- Series LS-FFL-S159
The 1.1" 25 megapixel ultra-high resolution FA lens (LS-FFL-S159) is a range of 6 machine vision lenses from LumaSpec Vision, from $669.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 12 mm, 1.1", C-mount, 16 mm, 1.1", C-mount, 25 mm, 1.1", C-mount, 35 mm, 1.1", C-mount, 50 mm, 1.1", C-mount, 75 mm, 1.1", C-mount
- Mount
- C-mount
- Image circle
- 16-22 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1.1" - 1.2"
Features
- Supports cameras with sensors up to 1.1" (dia. 19.5 mm)
- Excellent low-distortion, high-resolution optical design
- Very large aperture design for ultra-high-speed on-the-fly capture
All 6 models in the 1.1" 25 megapixel ultra-high resolution FA lens (LS-FFL-S159)
| Link | |||||
|---|---|---|---|---|---|
| LS-FFL-1649 | 12 mm, 1.1", C-mount | 12mm | M37 P=0.5MM | $669.00 | View |
| LS-FFL-1650 | 16 mm, 1.1", C-mount | 16mm | M34 P=0.5MM | $679.00 | View |
| LS-FFL-1651 | 25 mm, 1.1", C-mount | 25mm | M30.5 P=0.5MM | $689.00 | View |
| LS-FFL-1652 | 35 mm, 1.1", C-mount | 35mm | M30.5 P=0.5MM | $709.00 | View |
| LS-FFL-1653 | 50 mm, 1.1", C-mount | 50mm | M37 P=0.5MM | $739.00 | View |
| LS-FFL-1654 | 75 mm, 1.1", C-mount | 75mm | M27 P=0.5MM | $779.00 | View |
