Machine vision lenses

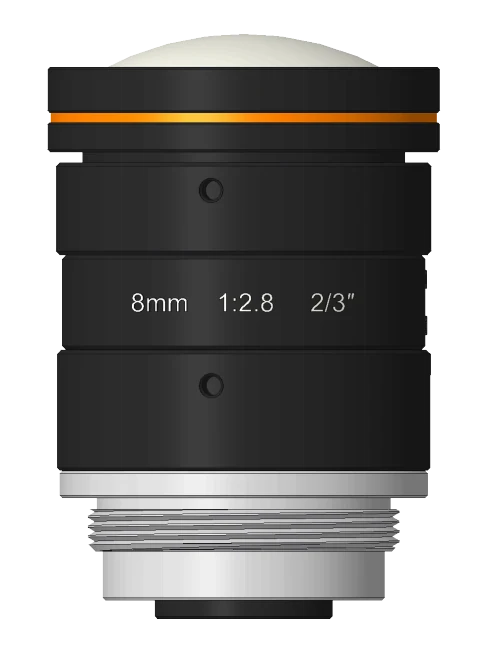

LS-FFL-S135 series lenses
- 6 models
- from $189.00
- Series LS-FFL-S135
The LS-FFL-S135 series lenses is a range of 6 machine vision lenses from LumaSpec Vision, from $189.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- C-mount
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Resolution
- 6-10 MP
- Sensor format
- 2/3"
Features
- High resolution and consistency of image clarity
- Lower distortion and higher relative illumination rate
- Excellent performance at high and low temperature
- Good optical performance at short working distance
- High resolution and consistency of image clarity.
- Lower distortion and higher relative illumination rate.
- Excellent performance at high and low temperature.
- Good optical performance at short working distance.
All 6 models in the LS-FFL-S135 series lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-1472 | 8 mm | –0.42% | 0.1 m | $189.00 | View | |
| LS-FFL-1473 | 12 mm | –0.19% | 0.1 m | M25.5 × P0.5 | $269.00 | View |
| LS-FFL-1474 | 16 mm | –0.09% | 0.1 m | M25.5 × P0.5 | $279.00 | View |
| LS-FFL-1475 | 25 mm | –0.48% | 0.15 m | M27 × P0.5 | $289.00 | View |
| LS-FFL-1476 | 35 mm | –0.24% | 0.15 m | M27 × P0.5 | $299.00 | View |
| LS-FFL-1477 | 50 mm | 0.14% | 0.237 m | M27 × P0.5 | $319.00 | View |
