Machine vision lenses

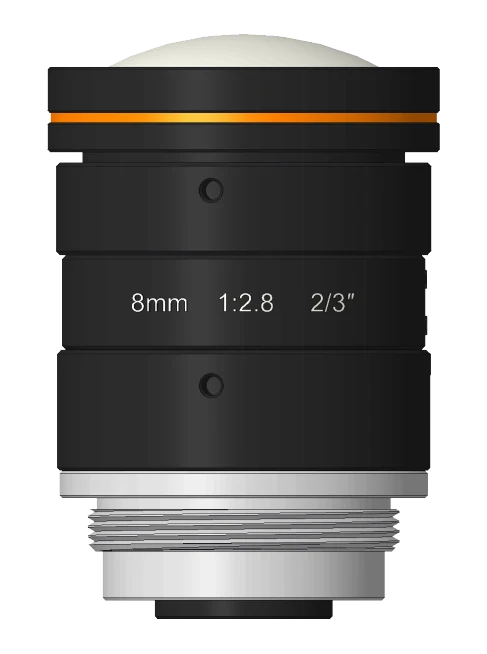

8mm, F2.8, 2/3", 10MP Lens, C-Mount (LS-FFL-1472)
Model LS-FFL-1472
- Focal length8 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8 to F16
$189.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8mm, F2.8, 2/3", 10MP Lens, C-Mount. High resolution and consistency of image clarity Lower distortion and higher relative illumination rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1472 |
|---|---|
| Minimum object distance | 0.1 m |
| Min. object distance | 0.1 m |
| Close-up with extension tube | 2 mm tube, near focus: WD 10.8 mm, magnification -0.307; 2 mm tube, far focus: WD 16.0 mm, magnification -0.248; 1 mm tube, near focus: WD 28.0 mm, magnification -0.190; 1 mm tube, far focus: WD 48.6 mm, magnification -0.124 |
Optics
| Focal length | 8 mm |
|---|---|
| F-number | F2.8 to F16 |
| Image size | Ø11.2 mm (2/3") |
| Distortion | –0.42% |
| Field of view | D (11.01 mm): 67.07°; H (8.45 mm): 54.06°; V (7.07 mm): 46.21° |
| Iris control | Manual |
| Focus control | Manual |
| Magnification at working distance (mm) | 100: -0.073; 150: -0.050; 200: -0.039; 250: -0.031; 300: -0.026; 350: -0.023; 400: -0.020; 450: -0.018; 500: -0.016; 550: -0.015; 600: -0.013; 650: -0.012; 800: -0.010; 900: -0.009; 1000: -0.008 |
| Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm) | 100: 118.4 x 98.4; 150: 170.8 x 142.3; 200: 223.3 x 186.2; 250: 275.7 x 230.1; 300: 328.1 x 274.0; 350: 380.5 x 317.9; 400: 432.9 x 361.7; 450: 485.3 x 405.6; 500: 537.8 x 449.5; 550: 590.2 x 493.4; 600: 642.6 x 537.2; 650: 695.0 x 581.1; 700: 747.4 x 625.0; 800: 852.2 x 712.7; 900: 957.0 x 800.5; 1000: 1061.8 x 888.2 |
| Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm) | 100: 102.9 x 67.9; 150: 148.7 x 98.4; 200: 194.5 x 128.9; 250: 240.3 x 159.4; 300: 286.1 x 189.8; 350: 332.0 x 220.3; 400: 377.8 x 250.8; 450: 423.6 x 281.3; 500: 469.4 x 311.8; 550: 515.2 x 342.2; 600: 560.5 x 372.7; 650: 606.7 x 403.2; 700: 652.5 x 433.7; 800: 744.1 x 494.6; 900: 835.7 x 555.6; 1000: 927.3 x 616.6 |
| Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm) | 100: 86.3 x 65.8; 150: 124.9 x 95.4; 200: 163.5 x 124.9; 250: 202.1 x 154.5; 300: 240.7 x 184.0; 350: 279.2 x 213.5; 400: 317.8 x 243.1; 450: 356.4 x 272.6; 500: 395.0 x 302.2; 550: 433.6 x 331.7; 600: 472.2 x 361.3; 650: 510.7 x 390.8; 700: 549.3 x 420.4; 800: 626.5 x 479.5; 900: 703.7 x 538.5; 1000: 780.8 x 597.6 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Dimension | Ø32 mm × 37.48 mm to 40.41 mm (Ø1.3" × 1.5" to 1.6") |
| Flange back length | 17.526 mm |
| Weight | 70 g (0.2 lb.) |
| Shipping weight (estimated) | 0.20 kg |
