Machine vision lenses

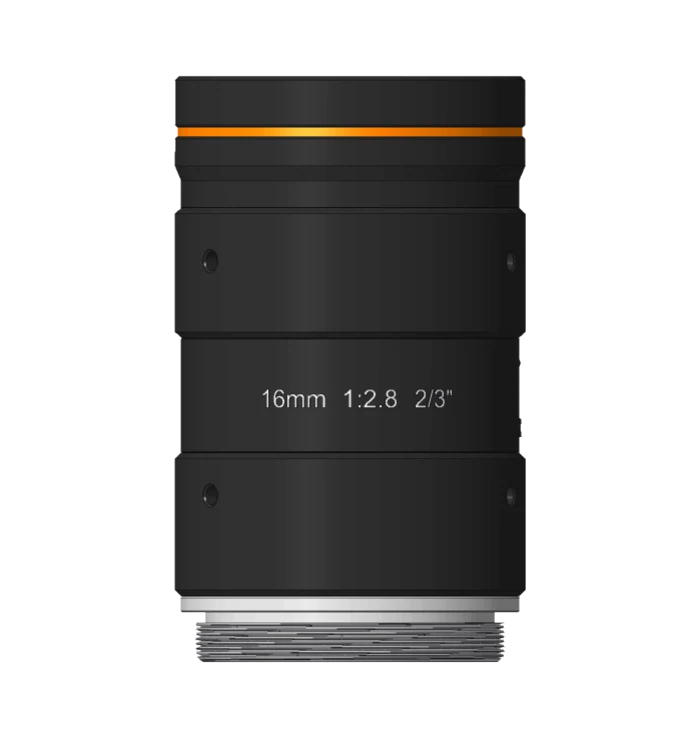

16mm, F2.8, 2/3", 10MP Lens, C-Mount (LS-FFL-1474)
Model LS-FFL-1474
- Focal length16 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8 to F16
$279.00
Ships in 2-3 weeks
0.19 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16mm, F2.8, 2/3", 10MP Lens, C-Mount. High resolution and consistency of image clarity Lower distortion and higher relative illumination rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1474 |
|---|---|
| Minimum object distance | 0.1 m |
| Close-up with extension tube | 10 mm tube, near focus: WD 11.8 mm, magnification -0.794; 10 mm tube, far focus: WD 17.5 mm, magnification -0.617; 5 mm tube, near focus: WD 25.2 mm, magnification -0.470; 5 mm tube, far focus: WD 43.7 mm, magnification -0.310; 2 mm tube, near focus: WD 48.5 mm, magnification -0.275; 2 mm tube, far focus: WD 122.3 mm, magnification -0.124; 1 mm tube, near focus: WD 66.1 mm, magnification -0.209; 1 mm tube, far focus: WD 253.1 mm, magnification -0.062 |
Optics
| Focal length | 16 mm |
|---|---|
| F-number | F2.8 to F16 |
| Image size | Ø11.2 mm (2/3") |
| Distortion | –0.09% |
| Field of view | D (11.01 mm): 37.42°; H (8.45 mm): 29.1°; V (7.07 mm): 24.5° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M25.5 × P0.5 |
| Magnification at working distance (mm) | 100: -0.143; 150: -0.099; 200: -0.076; 300: -0.052; 350: -0.045; 400: -0.039; 450: -0.035; 500: -0.032; 550: -0.029; 600: -0.026; 650: -0.024; 700: -0.023; 800: -0.020; 900: -0.018; 1000: -0.016 |
| Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm) | 100: 59.5 x 49.6; 150: 85.8 x 71.7; 200: 112.0 x 93.6; 250: 138.1 x 115.4; 300: 164.2 x 137.2; 350: 190.2 x 159.0; 400: 216.3 x 180.8; 450: 242.3 x 202.6; 500: 268.3 x 224.4; 550: 294.3 x 246.2; 600: 320.3 x 267.9; 650: 346.3 x 289.7; 700: 372.3 x 311.5; 800: 424.4 x 355.0; 900: 476.4 x 398.5; 1000: 528.3 x 442.0 |
| Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm) | 100: 51.8 x 34.5; 150: 74.8 x 49.8; 200: 97.7 x 65.0; 250: 120.5 x 80.2; 300: 143.3 x 95.4; 350: 166.0 x 110.6; 400: 188.8 x 125.7; 450: 211.5 x 140.9; 500: 234.2 x 156.0; 550: 257.0 x 171.2; 600: 279.7 x 186.3; 650: 302.4 x 201.5; 700: 325.1 x 216.6; 800: 370.6 x 246.9; 900: 416.0 x 277.2; 1000: 461.4 x 307.5 |
| Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm) | 100: 43.6 x 33.4; 150: 63.0 x 48.2; 200: 82.3 x 63.0; 250: 101.5 x 77.8; 300: 120.7 x 92.5; 350: 139.9 x 107.2; 400: 159.0 x 121.9; 450: 178.2 x 136.6; 500: 197.4 x 151.3; 550: 216.5 x 166.0; 600: 235.7 x 180.7; 650: 254.8 x 195.3; 700: 274.0 x 210.0; 800: 312.3 x 239.4; 900: 350.5 x 268.8; 1000: 388.8 x 298.1 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

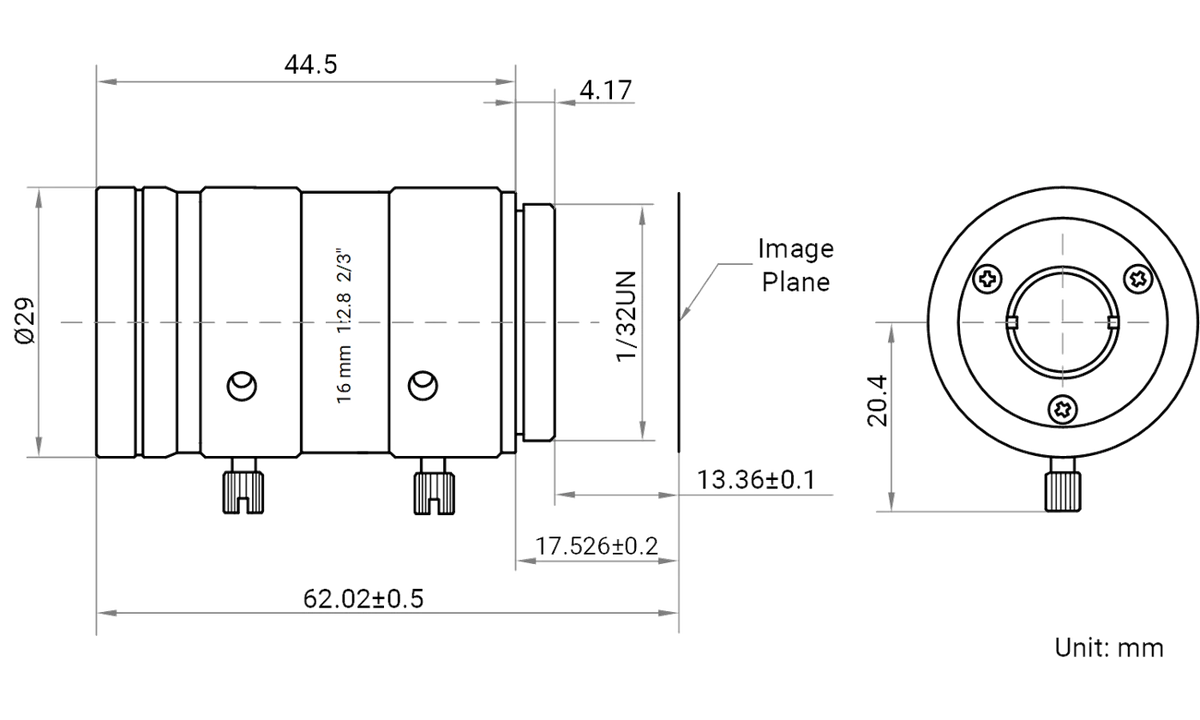

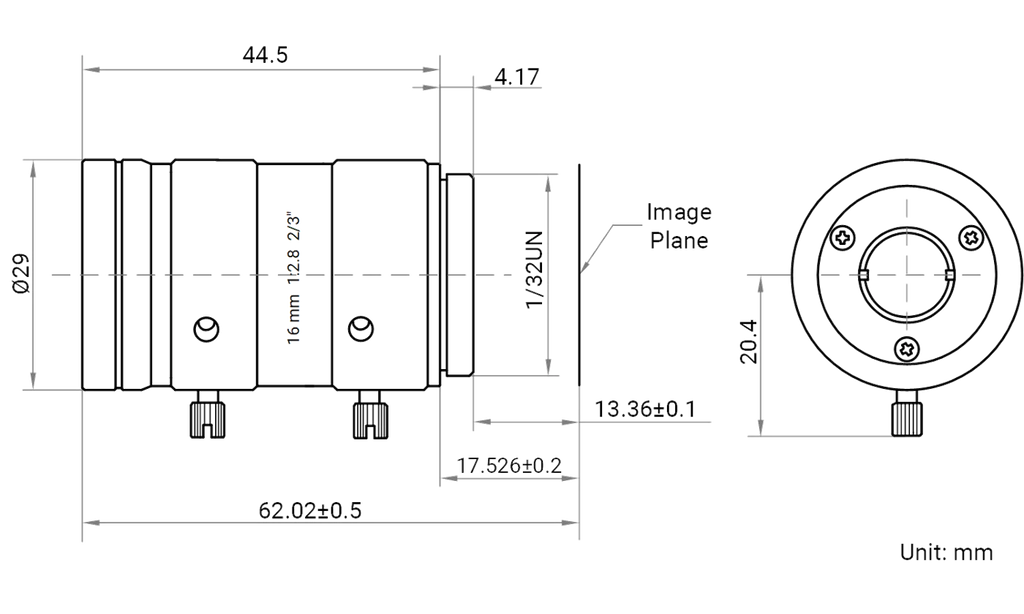

| Dimension | Ø29 mm × 44.5 mm (Ø1.1" × 1.8") |
| Weight | 63 g (0.1 lb.) |
| Shipping weight (estimated) | 0.19 kg |
