Machine vision lenses

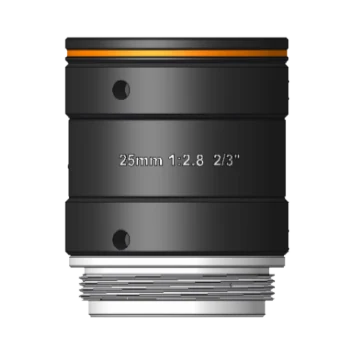

25mm, F2.8, 2/3", 10MP Lens, C-Mount (LS-FFL-1475)
Model LS-FFL-1475
- Focal length25 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8 to F16
$289.00
Ships in 2-3 weeks
0.16 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25mm, F2.8, 2/3", 10MP Lens, C-Mount. High resolution and consistency of image clarity Lower distortion and higher relative illumination rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1475 |
|---|---|
| Minimum object distance | 0.15 m |
| Min. object distance | 0.15 m |
| Close-up with extension tube | 2 mm tube, near focus: WD 105.0 mm, magnification -0.255; 2 mm tube, far focus: WD 302.0 mm, magnification -0.082; 1 mm tube, near focus: WD 123.7 mm, magnification -0.216; 1 mm tube, far focus: WD 600.0 mm, magnification -0.041 |
Optics
| Focal length | 25 mm |
|---|---|
| F-number | F2.8 to F16 |
| Image size | Ø11.2 mm (2/3") |
| Distortion | –0.48% |
| Field of view | D (11.01 mm): 22.81°; H (8.45 mm): 17.12°; V (7.07 mm): 14.14° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Magnification at working distance (mm) | 150: -0.177; 200: -0.127; 250: -0.101; 300: -0.084; 350: -0.072; 400: -0.063; 450: -0.056; 500: -0.050; 550: -0.045; 600: -0.042; 650: -0.038; 700: -0.036; 800: -0.031; 900: -0.028; 1000: -0.025 |
| Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm) | 150: 47.7 x 39.9; 200: 65.0 x 54.3; 250: 82.2 x 68.7; 300: 99.5 x 83.1; 350: 116.7 x 97.5; 400: 133.9 x 111.9; 450: 150.8 x 126.0; 500: 167.7 x 140.1; 550: 184.6 x 154.2; 600: 203.0 x 169.6; 650: 220.3 x 184.0; 700: 237.5 x 198.5; 800: 272.0 x 227.3; 900: 306.5 x 256.1; 1000: 341.0 x 284.9 |
| Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm) | 150: 41.6 x 27.7; 200: 56.7 x 37.7; 250: 71.7 x 47.7; 300: 86.8 x 57.8; 350: 101.8 x 67.8; 400: 116.9 x 77.8; 450: 131.6 x 87.6; 500: 146.3 x 97.4; 550: 161.0 x 107.2; 600: 177.1 x 117.9; 650: 192.2 x 127.9; 700: 207.2 x 137.9; 800: 237.3 x 157.9; 900: 267.4 x 178.0; 1000: 297.5 x 198.0 |
| Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm) | 150: 35.1 x 26.3; 200: 47.7 x 35.8; 250: 60.4 x 45.3; 300: 73.1 x 54.8; 350: 85.8 x 64.3; 400: 98.4 x 73.8; 450: 110.8 x 83.1; 500: 123.2 x 92.4; 550: 135.6 x 101.7; 600: 149.1 x 111.9; 650: 161.8 x 121.4; 700: 174.5 x 130.9; 800: 199.8 x 149.9; 900: 225.2 x 168.9; 1000: 250.5 x 187.9 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimension | Ø29 mm × 29.28 mm (Ø1.1" × 1.2") |
| Weight | 46 g (0.1 lb.) |
| Shipping weight (estimated) | 0.16 kg |
Other models in the LS-FFL-S135 series lenses series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1472 | 8 mm · C-mount | $189.00 | Ships in 2-3 weeks | View |
| LS-FFL-1473 | 12 mm · C-mount | $269.00 | Ships in 2-3 weeks | View |
| LS-FFL-1474 | 16 mm · C-mount | $279.00 | Ships in 2-3 weeks | View |
| LS-FFL-1476 | 35 mm · C-mount | $299.00 | Ships in 2-3 weeks | View |
| LS-FFL-1477 | 50 mm · C-mount | $319.00 | Ships in 2-3 weeks | View |
