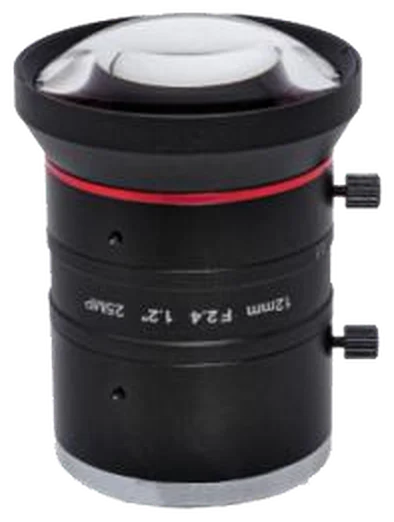

1.2" machine vision lenses (LS-FFL-S85)

Machine vision lenses

1.2" machine vision lenses (LS-FFL-S85)

  • 6 models
  • from $669.00
  • Series LS-FFL-S85

The 1.2" machine vision lenses (LS-FFL-S85) is a range of 6 machine vision lenses from LumaSpec Vision, from $669.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 6 models Series datasheet (PDF)

The series at a glance

Sizes / versions
12 mm, 1.2", 25 MP, C-mount, 16 mm, 1.2", 25 MP, C-mount, 25 mm, 1.2", 25 MP, C-mount, 35 mm, 1.2", 25 MP, C-mount, 50 mm, 1.2", 25 MP, C-mount, 75 mm, 1.2", 25 MP, C-mount
Type
Machine vision fixed
Mount
C-mount
Resolution
16-25 MP
Image circle
16-22 mm
Focal length
12-25 mm, 25-50 mm, 50-100 mm
Sensor format
1.1" - 1.2"

Features

  • High resolution: 25 megapixel cover all 8K & 4K
  • Large format: 1.2" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion: 0.39% TV / -0.28% Optical low distortion for machine vision
  • Low distortion: 0.07% TV / -0.53% Optical low distortion for machine vision
  • Low distortion: -0.04% TV / 0.32% Optical low distortion for machine vision
  • Low distortion: <0.015% TV / 0.06% Optical low distortion for machine vision
  • Large format: 1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion: <0.011% TV / 0.055% Optical low distortion for machine vision

Typical uses

  • Automation
  • Machine vision
  • Medical
  • Life science
  • ITS
  • SMT

All 6 models in the 1.2&quot; machine vision lenses (LS-FFL-S85)

Link
LS-FFL-0573dia. 50 x 66.96 mm12 mmF2.4 Manual iris0.39% ( TV ) ; -0.28% (Optical )$669.00View
LS-FFL-0574dia. 42.5 x 59.7616 mmF2.4 Manual iris0.07% ( TV ) ; -0.53% (Optical )$679.00View
LS-FFL-0575dia. 40 x 58.44 mm25 mmF2.4 Manual iris-0.04% ( TV ) ; -0.32% (Optical )$689.00View
LS-FFL-0576dia. 42 x 59.32 mm35 mmF2.4 Manual iris0.015% ( TV ) ; 0.06% (Optical )$709.00View
LS-FFL-0577dia. 42 x 61.16 mm50 mmF2.4 Manual iris0.011% ( TV ) ; 0.055% (Optical )$739.00View
LS-FFL-0578dia. 35 x 68.6~76.3 mm75mmF2.8 Manual iris0.01% ( TV )$779.00View
