Machine vision lenses

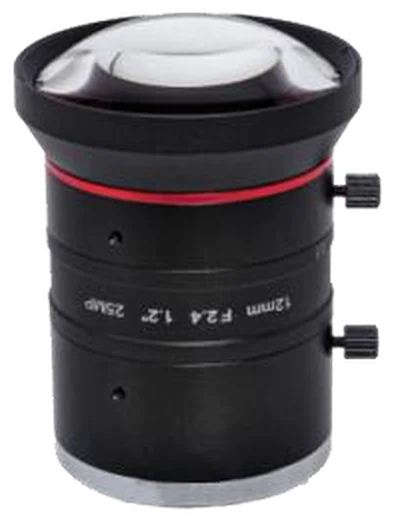

12 mm, 1.2", 25 MP, C-mount Machine Vision Lens (LS-FFL-0573)
Model LS-FFL-0573
- Focal length12 mm
- MountC-mount
- Sensor1.2"
- ApertureF2.4 Manual iris
- Resolution25 Megapixel
$669.00
Ships in 2-3 weeks
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12 mm, 1.2", 25 MP, C-mount Machine Vision Lens. 12 mm F2.4 machine vision (FA) lens for 1.2" sensors (2.74 um pixels), rated 25 megapixel (8K and 4K), with low distortion (0.39% TV / -0.28% optical). The large format covers 1.1", 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: focal length 12 mm; format 1.2" (2.74μm); resolution 25 Megapixel; aperture F2.4 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0573 |
|---|---|
| Format | 1.2" (2.74μm) |
| Angle of view (1.2") | 76.2 x 62.4 x 55.33 deg |
| B.F.L. | 18.5 mm , WD=600 mm |
| CRA | 6.02° |
| Transmittance | T≥85% at 430~680 nm |
| Elements | 15G |
Optics
| Focal length | 12 mm |
|---|---|
| Max image circle | dia. 19.3 mm |
| Aperture | F2.4 Manual iris |
| M.O.D. | 0.1 m |
| Relative illumination | 81.4% ( WD=300 mm F2.8 ) |
| Distortion | 0.39% ( TV ) ; -0.28% (Optical ) |
Sensor and imaging
| Resolution | 25 Megapixel |
|---|
Electrical
| Resolving power (projector test) | Center ≥200 lp/mm; Edge dia. 16 ≥160 lp/mm |
|---|
Mechanical

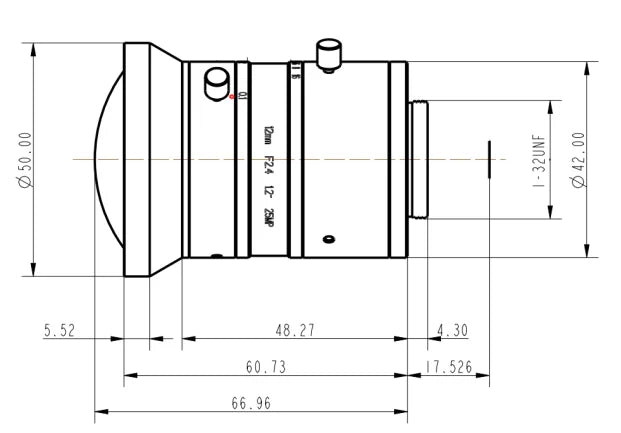

| Size | dia. 50 x 66.96 mm |
|---|---|
| Mount | C |
| Weight | 300 g |
| Shipping weight (estimated) | 0.52 kg |
