75 mm, 1.2", 25 MP, C-mount Machine Vision Lens (LS-FFL-0578)
Model LS-FFL-0578
- Focal length75mm
- MountC-mount
- Sensor1.2"
- ApertureF2.8 Manual iris
- Resolution25 Megapixel
$779.00
Ships in 2-3 weeks
0.29 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
75 mm, 1.2", 25 MP, C-mount Machine Vision Lens. 75 mm F2.8 machine vision (FA) lens for 1.2" 25 megapixel sensors (covers 1.1", 3/4", 2/3", 1/1.8", 1/2"), TV distortion under 0.01%. At a glance: focal length 75mm; format 1.2"; resolution 25 Megapixel; aperture F2.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0578 |
|---|---|
| Format | 1.2" |
| Angle of view (1.2", HxV) | 11.1 x 9.6 |
| Angle of view (1.1", HxV) | 10.8 x 7.9 |
| Ring FOV table (WD 1000-250 mm) | -0.075X @1000 mm to -0.300X @250 mm; extension rings 2-15 mm below 400 mm WD |
Optics
| Focal length | 75mm |
|---|---|
| Aperture | F2.8 Manual iris |
| M.O.D. | 0.45m |
| Distortion | 0.01% ( TV ) |
| Back focal length (optical) | 22.6~30.3mm |
Sensor and imaging
| Resolution | 25 Megapixel |
|---|
Mechanical

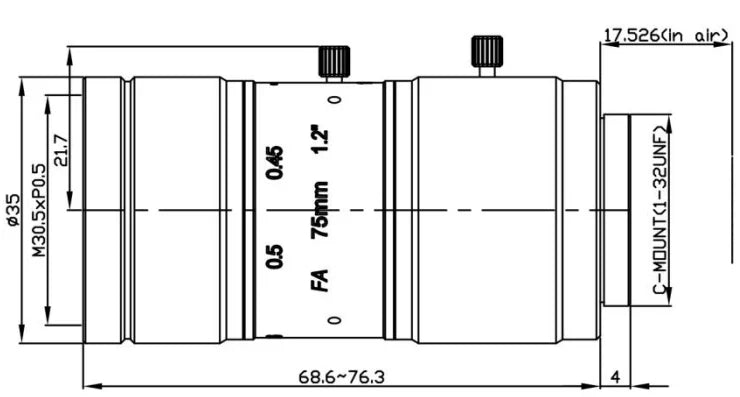

| Size | dia. 35 x 68.6~76.3 mm |
|---|---|
| Filter size | M30.5 x P0.5 |
| Mount | C |
| Weight | 133g |
| Shipping weight (estimated) | 0.29 kg |
Other models in the 1.2" machine vision lenses (LS-FFL-S85) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0573 | 12 mm, 1.2", 25 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0574 | 16 mm, 1.2", 25 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0575 | 25 mm, 1.2", 25 MP, C-mount | $689.00 | Ships in 2-3 weeks | View |
| LS-FFL-0576 | 35 mm, 1.2", 25 MP, C-mount | $709.00 | Ships in 2-3 weeks | View |
| LS-FFL-0577 | 50 mm, 1.2", 25 MP, C-mount | $739.00 | Ships in 2-3 weeks | View |
