Machine vision lenses

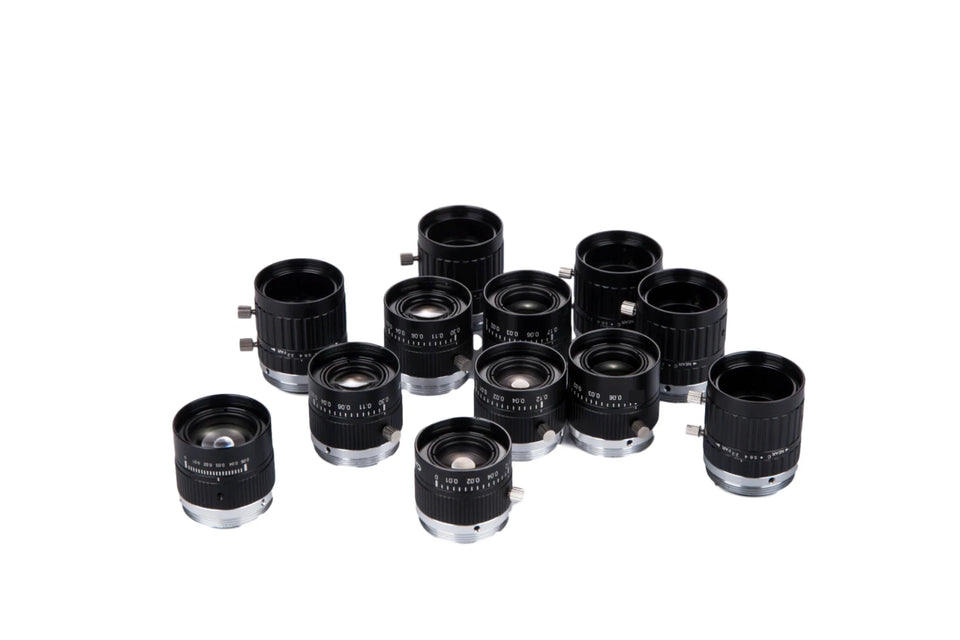

Industrial lens, 1/1.8" 5MP FA lens (LS-FFL-S76)
- 9 models
- from $169.00
- Series LS-FFL-S76
The Industrial lens, 1/1.8" 5MP FA lens (LS-FFL-S76) is a range of 9 machine vision lenses from LumaSpec Vision, from $169.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 4 mm, 1/1.8", C-mount, 6 mm, 1/1.8", C-mount, 8 mm, 1/1.8", C-mount, 12 mm, 1/1.8", C-mount, 16 mm, 1/1.8", C-mount, 25 mm, 1/1.8", C-mount, 35 mm, 1/1.8", C-mount, 50 mm, 1/1.8", C-mount, 75 mm, 1/1.8", C-mount
- Mount
- C-mount
- Image circle
- 8-11 mm
- Focal length
- Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1/1.8" - 1/1.56"
All 9 models in the Industrial lens, 1/1.8" 5MP FA lens (LS-FFL-S76)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0410 | 8 mm, 1/1.8", C-mount | 8 | 2 | 269.4 x 202 | $169.00 | View |
| LS-FFL-0411 | 12 mm, 1/1.8", C-mount | 12 | 2 | 121.72 x 91.21 | $179.00 | View |
| LS-FFL-0408 | 4 mm, 1/1.8", C-mount | 4 | 2 | 353 x 264 | $209.00 | View |
| LS-FFL-0409 | 6 mm, 1/1.8", C-mount | 6 | 2 | 235 x 176 | $209.00 | View |
| LS-FFL-0412 | 16 mm, 1/1.8", C-mount | 16 | 2 | 88.25 x 66.13 | $239.00 | View |
| LS-FFL-0415 | 50 mm, 1/1.8", C-mount | 50 | 2.8 | 36.02 x 26.99* | $249.00 | View |
| LS-FFL-0413 | 25 mm, 1/1.8", C-mount | 25 | 2 | 52.30 x 39.19 | $289.00 | View |
| LS-FFL-0416 | 75 mm, 1/1.8", C-mount | 75 | 2.8 | 39.66 x 29.72* | $309.00 | View |
| LS-FFL-0414 | 35 mm, 1/1.8", C-mount | 35 | 2 | 36.58 x 27.41 | $319.00 | View |
