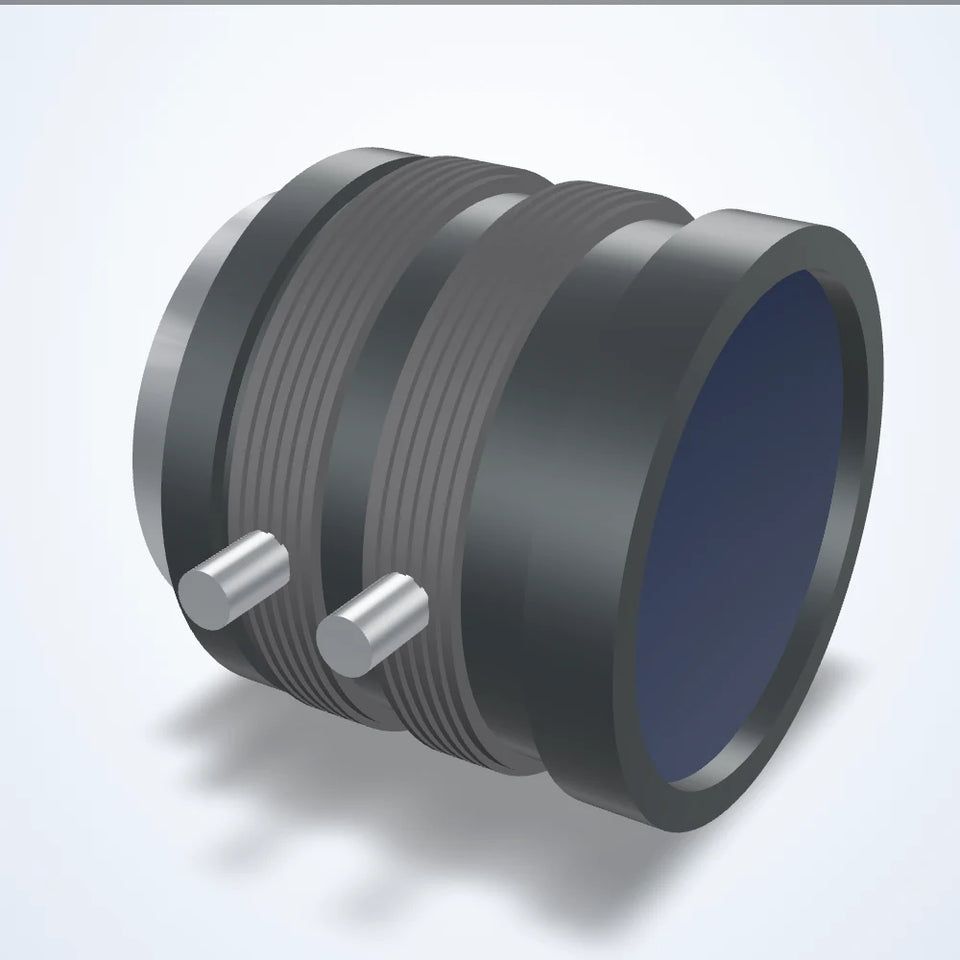

Lens series, 2/3", C-mount (S26)

Machine vision lenses

Lens series, 2/3", C-mount (S26)

  • 4 models
  • from $389.00
  • Series LS-FFL-S26

The Lens series, 2/3", C-mount (S26) is a range of 4 machine vision lenses from LumaSpec Vision, from $389.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 4 models Series datasheet (PDF)

The series at a glance

Sizes / versions
8 mm, 12 mm, 16 mm, 25 mm
Mount
C-mount
Image circle
8-11 mm
Focal length
6-12 mm, 12-25 mm, 25-50 mm
Sensor format
2/3"

All 4 models in the Lens series, 2/3", C-mount (S26)

Link
LS-FFL-013712 mm0.13×V 118mm, H 159mm, D 200mm27.478 mm (at 0.2 m)$389.00quoteView
LS-FFL-015216 mm0.14×V 88mm, H 117mm, D 147mm27.71 mm (at 0.2 m)$389.00quoteView
LS-FFL-016825 mm0.16×V 56mm, H 75mm, D 95mm27.93 mm (at 0.2 m)$389.00quoteView
LS-FFL-02308 mm0.18×V 132mm / H 178mm / D 226mm$389.00quoteView
