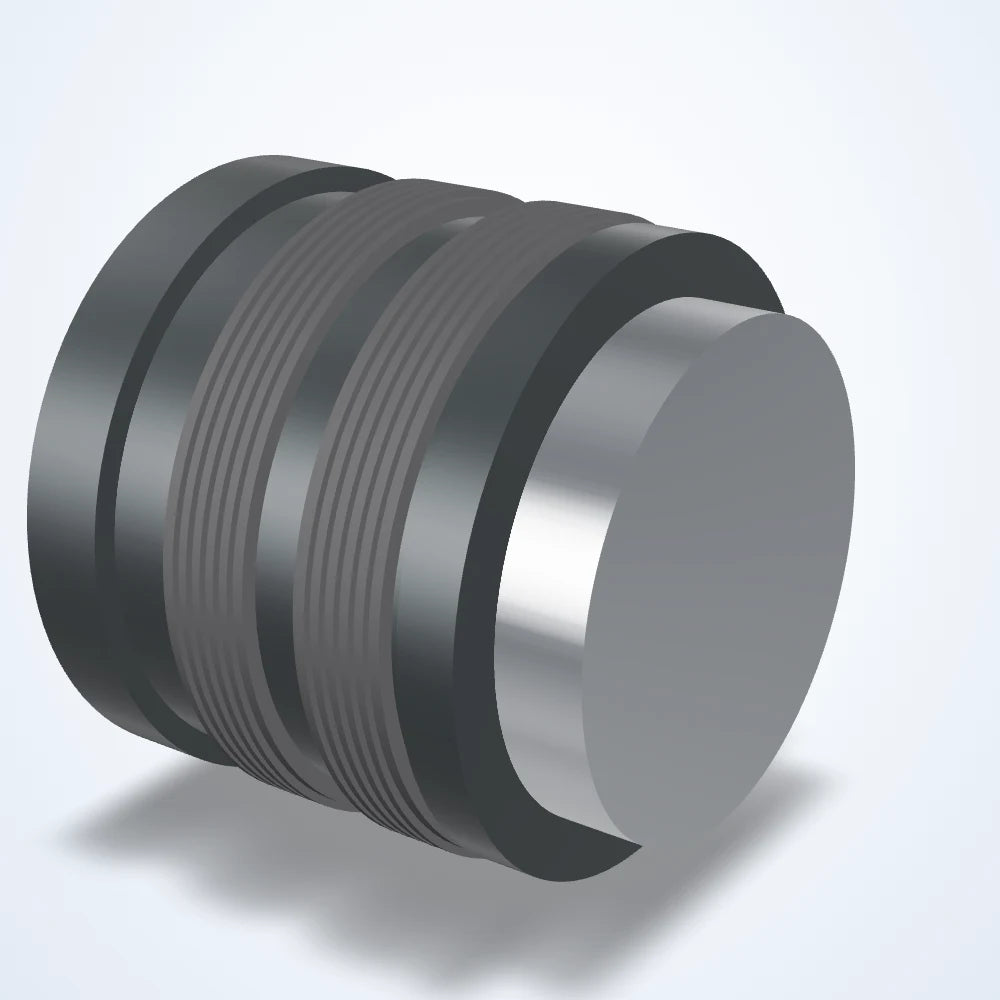

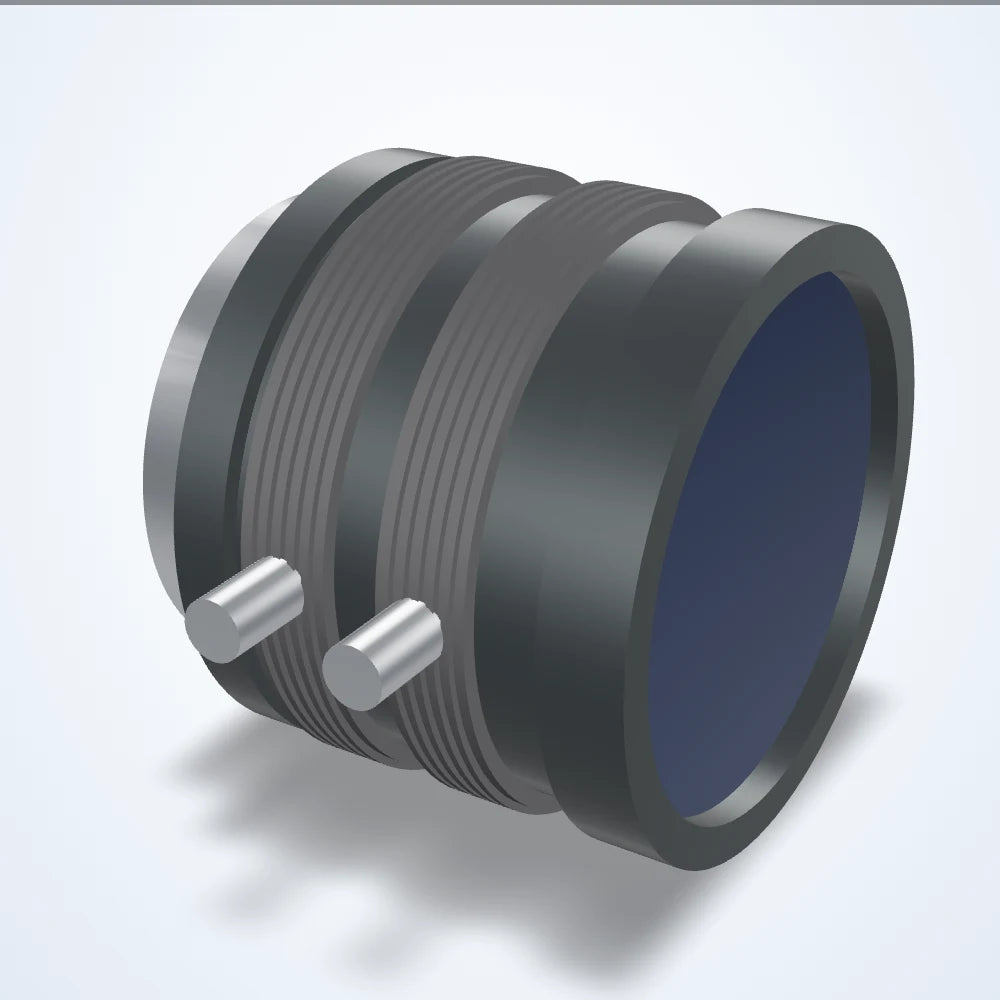

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 2/3", C-mount, Visible (LS-FFL-0168)
Model LS-FFL-0168
- Focal length25 mm
- Magnification0.16×
- MountC-mount
- Sensor2/3"
- Aperture2.8-16
- ResolutionCenter 160 lp/mm / Corner 100 lp/mm
$389.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0168 |
|---|---|
| Angle of view | 20.0 x 15.0 deg (H x V), 24.8 deg diagonal |
| Angle of view @ 1/1.8″ | 16.4° × 12.4° |
| Angle of view @ 1/2″ | 14.6° × 11.0° |
| Angle of view @ 2/3″ | 20.0° × 15.0° |
| Entrance pupil position | 25.2 mm from front |
| Exit pupil | -58.8mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 18.9mm / Rear 13.7mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 1mm ring | 145 mm |
| Minimum object distance with 5mm ring | 66 mm |
| Shooting range at mod | 75.0(H)×56.0(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture (F) | 2.8-16 |
| Distortion | 0.06% (TV) |
| Back focus | 11.7mm in air |
| Field of view at mod (2/3") | V 56mm, H 75mm, D 95mm |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.16× |
| Magnification with 5mm ring | 0.32× |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution center/corner | Center 160 lp/mm / Corner 100 lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

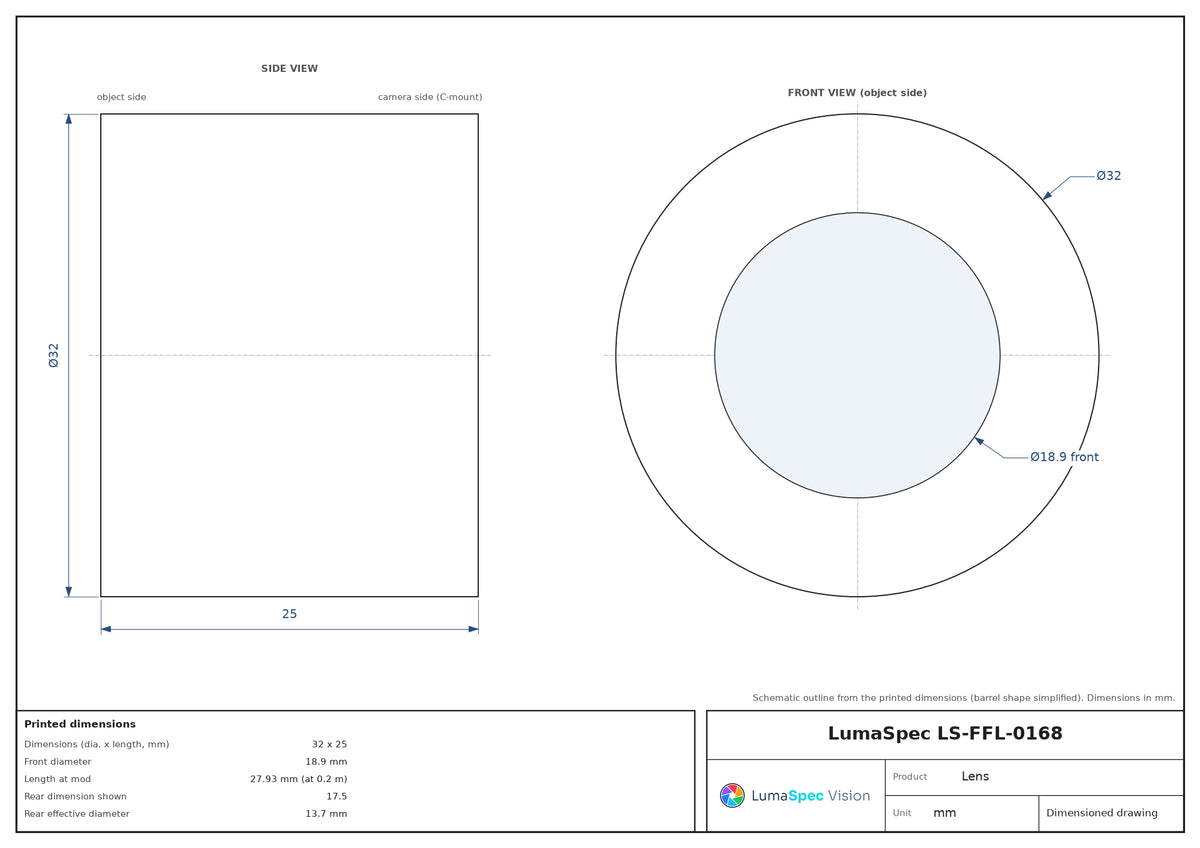

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 32 x 25 |
| Front diameter | 18.9 mm |
| Length at mod | 27.93 mm (at 0.2 m) |
| Mount thread | 1-32UNF |
| Weight (g) | 55 |
