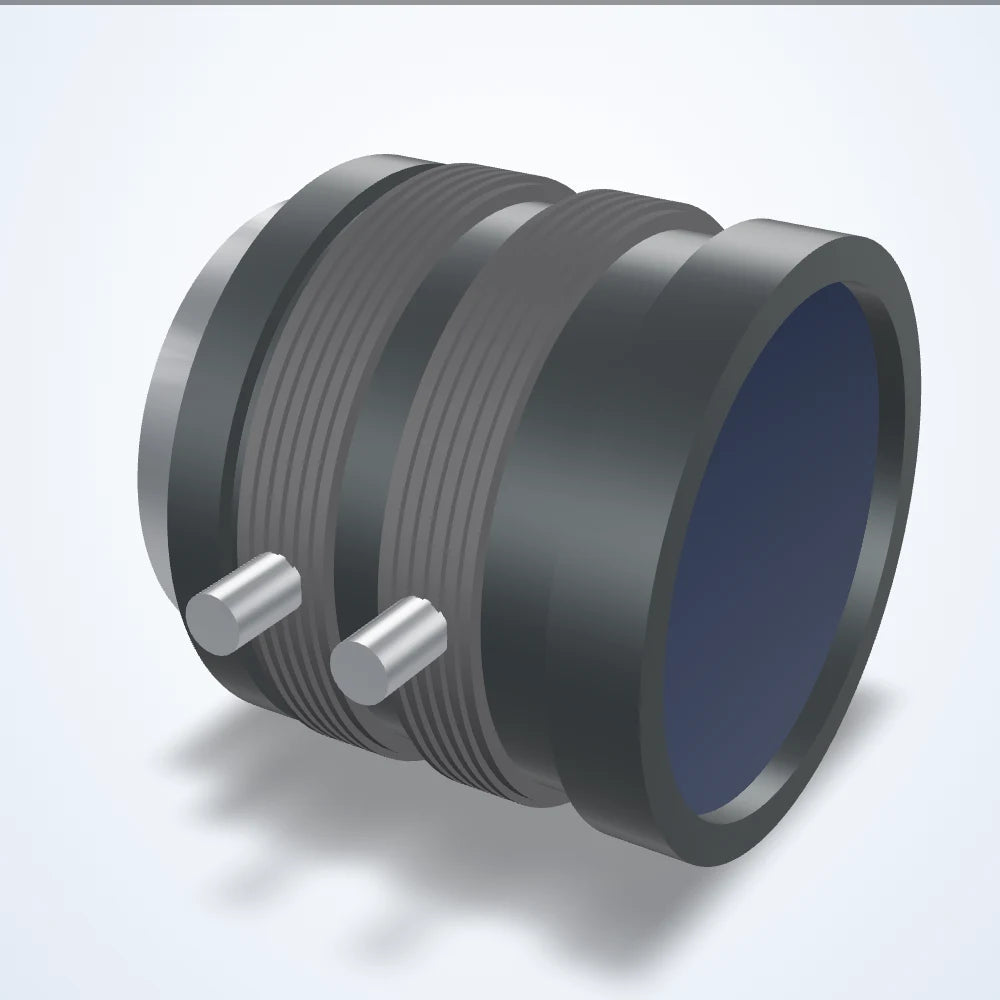

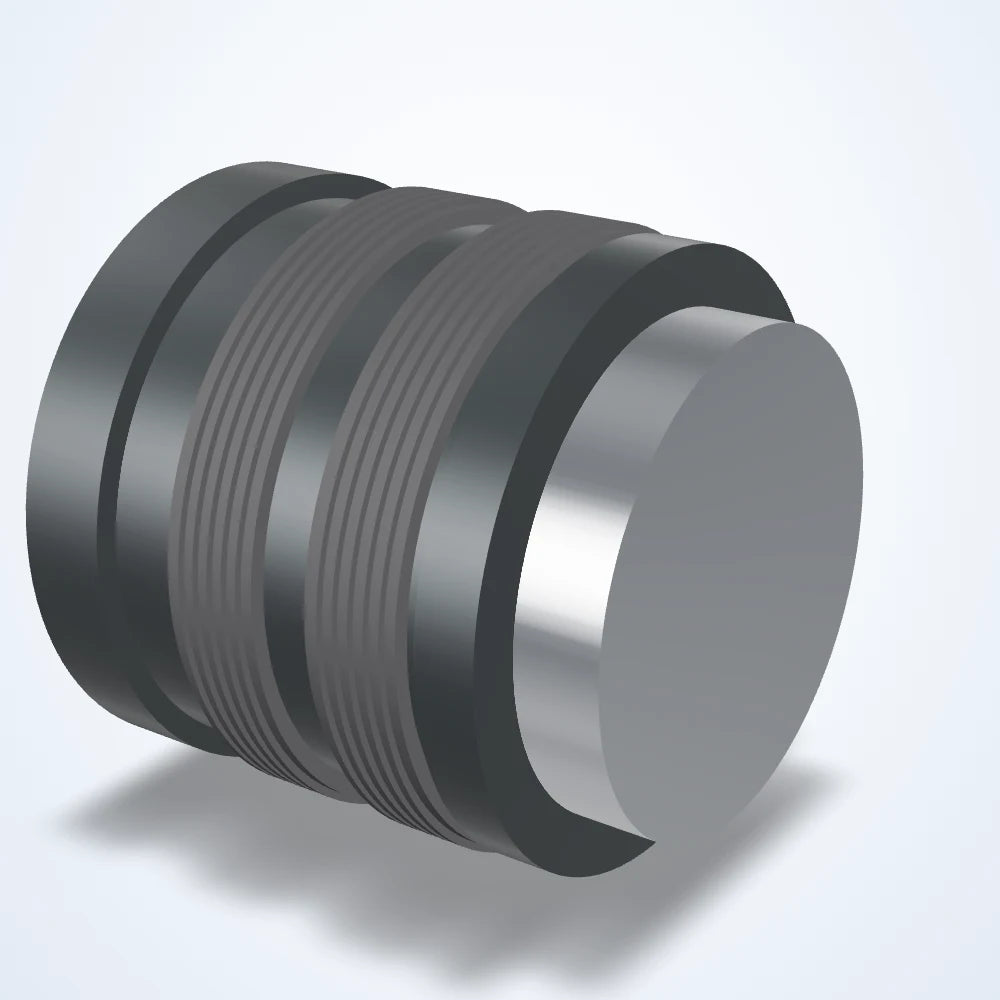

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 2/3", C-mount (LS-FFL-0230)
Model LS-FFL-0230
- Focal length8 mm
- Magnification0.18×
- MountC-mount
- Sensor2/3"
- Aperture2.8-16
- ResolutionCenter 160lp/mm / Corner 100lp/mm
$389.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0230 |
|---|---|
| Angle of view | 57.6 x 44.4 deg (D 69.3 deg) |
| Angle of view @ 1/1.8″ | 48.1° × 36.7° |
| Angle of view @ 1/2″ | 43.1° × 32.8° |
| Angle of view @ 2/3″ | 57.6° × 44.4° |
| Entrance pupil (e.p.) | 14.9mm |
| Exit pupil | -42.8mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 21.5mm / Rear 11.9mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.15 |
| Minimum object distance with 1mm ring | 35 mm |
| Name | 2/3" f=8mm F2.8 5MP |
| Shooting range at mod | 178.0(H)×132.0(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 8 mm |
|---|---|
| Aperture (F) | 2.8-16 |
| Distortion | -0.85% (TV) |
| Back focus | 10.8mm in air |
| Field of view at mod (2/3") | V 132mm / H 178mm / D 226mm |
| Filter thread | M30.5x0.5 |
| Focus control | Manual |
| Focus range | 0.15 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.18× |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution center/corner | Center 160lp/mm / Corner 100lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

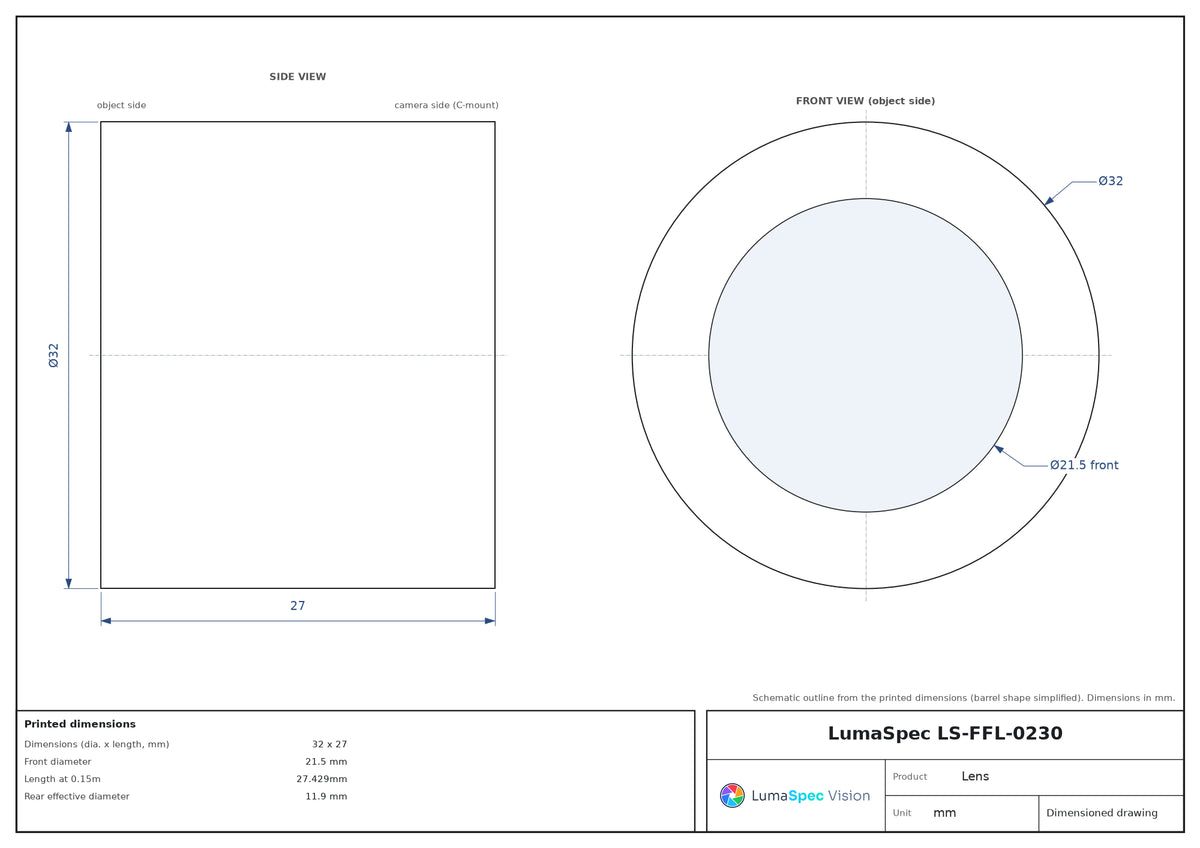

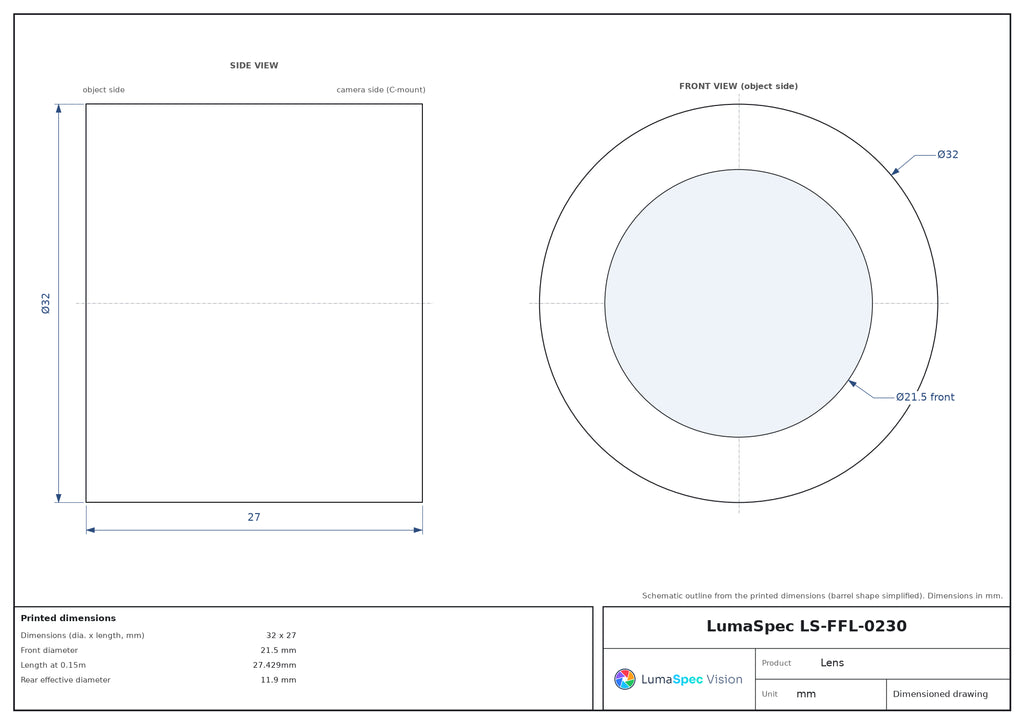

| Dimensions (dia. x length, mm) | 32 x 27 |
| Front diameter | 21.5 mm |
| Length at 0.15m | 27.429mm |
| Picture size (2/3") | 6.6x8.8mm |
| Weight (g) | 55 |
