Machine vision lenses

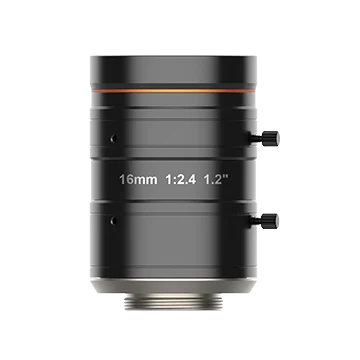

KF-P series lenses
- 8 models
- from $239.00
- Series LS-KF-P
The KF-P series lenses is a range of 8 machine vision lenses from LumaSpec Vision, from $239.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- C-mount
- Image circle
- 16-22 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Resolution
- 16-25 MP
- Sensor format
- 1.1" - 1.2"
Features
- Ultra high resolution and consistency of image clarity
- 1.2" image circle, bigger aperture, lower distortion, higher illumination relative
- Achromatic optical system design, better imaging performance with color camera
- Maintain excellent optical properties at different object distances
- Excellent vibration resistance and stability at high and low temperature performance, optical axis shifting within pixel level
- Multilayer and broadband coating design, compatible with visible and near infrared applications
- Achromatic optical system design, better imaging performance with color camerab
- Ultra-high resolution with highly uniform image sharpness
All 8 models in the KF-P series lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-KF1624M-25MP | 16 mm | F2.4 to F16 | Ø42.5 mm× 59.8 mm (Ø1.67'' × 2.35'') | 0.07% | $239.00 | View |
| LS-KF2524M-25MP | 25 mm | F2.4 to F16 | Ø40 × 58.4 mm (Ø1.57'' × 2.3'') | –0.04% | $239.00 | View |
| LS-KF3524M-25MP | 35 mm | F2.4 to F16 | Ø42 mm × 59.3 mm (Ø1.65'' × 2.33'') | 0.02% | $239.00 | View |
| LS-KF5024M-25MP | 50 mm | F2.4 to F16 | Ø42 mm × 61.2 mm (Ø1.65'' × 2.1'') | 0.01% | $239.00 | View |
| LS-XAC-16250F | 16 mm | F4.0 | Φ42.1 × 57.22~64.19 mm | 0.04% | $239.00 | View |
| LS-XAC-1225F | 12 mm | F2.4 ~ F16 | Φ50×66.96 mm | 0.39% | $239.00 | View |
| LS-KF0818M-20MP | 8 mm | F1.8 ~ F16 | Φ57 × 58.2 ~ 59.2 mm | -2.26% | $239.00 | View |
| LS-KF1224M-25MP | 12 mm | F2.4 to F16 | Ø50 mm× 66.96 mm (Ø1.97'' × 2.62'') | 0.39% | $279.00 | View |
