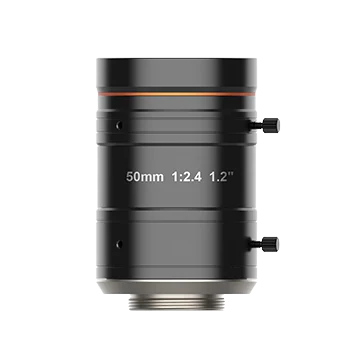

50mm, F2.4, 1.2", 25MP Lens, C-Mount (LS-KF5024M-25MP)

Model LS-KF5024M-25MP

  • Focal length50 mm
  • MountC-mount
  • Sensor1.2"
  • ApertureF2.4 to F16
$239.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.35 kg shipping weight

Volume pricing, Net 30 or a formal quote?

50mm, F2.4, 1.2", 25MP Lens, C-Mount. Ultra high resolution and consistency of image clarity 1.2" image circle, bigger aperture, lower distortion, higher illumination relative

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-KF5024M-25MP
Minimum object distance0.25 m
Minimum operation distance0.25 m
Close-up with extension tube15 mm tube, near focus: WD 98.03 mm, magnification -0.507; 15 mm tube, far focus: WD 136.17 mm, magnification -0.350; 10 mm tube, near focus: WD 122.59 mm, magnification -0.403; 10 mm tube, far focus: WD 193.59 mm, magnification -0.250; 5 mm tube, near focus: WD 164.18 mm, magnification -0.299; 5 mm tube, far focus: WD 327.81 mm, magnification -0.150; 2 mm tube, near focus: WD 206.64 mm, magnification -0.237; 2 mm tube, far focus: WD 552.22 mm, magnification -0.090; 1 mm tube, near focus: WD 226.22 mm, magnification -0.216; 1 mm tube, far focus: WD 713.01 mm, magnification -0.070

Optics

Field of viewD (19.30mm): 20.60°; H (14.60mm): 15.66°; V (12.63mm): 13.57°
Focal length50 mm
F-numberF2.4 to F16
Image sizeØ19.3 mm (1.2'')
Distortion0.01%
Iris controlManual
Focus controlManual
Filter threadM40.5 × 0.5
Magnification at working distance (mm)250: -0.195; 300: -0.163; 350: -0.140; 400: -0.122; 450: -0.109; 500: -0.098; 550: -0.090; 600: -0.082; 650: -0.076; 700: -0.071; 800: -0.062; 900: -0.055; 1000: -0.050
Field of view H x V (mm) at working distance (mm), 1.2" sensor (14.6 x 12.63 mm)250: 74.78 x 64.67; 300: 89.78 x 77.66; 350: 104.60 x 90.48; 400: 119.30 x 103.21; 450: 133.93 x 115.86; 500: 148.50 x 128.48; 550: 163.04 x 141.05; 600: 177.54 x 153.60; 650: 192.02 x 166.13; 700: 206.48 x 178.65; 800: 235.35 x 203.64; 900: 264.19 x 228.59; 1000: 293.00 x 253.52
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)250: 72.42 x 52.99; 300: 86.95 x 63.63; 350: 101.30 x 74.14; 400: 115.54 x 84.58; 450: 129.71 x 94.95; 500: 143.83 x 105.29; 550: 157.90 x 115.60; 600: 171.95 x 125.89; 650: 185.97 x 136.16; 700: 199.98 x 146.42; 800: 227.95 x 166.91; 900: 255.88 x 187.37; 1000: 283.78 x 207.80
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)250: 43.26 x 36.19; 300: 51.95 x 43.46; 350: 60.53 x 50.65; 400: 69.05 x 57.77; 450: 77.53 x 64.87; 500: 85.97 x 71.93; 550: 94.39 x 78.98; 600: 102.79 x 86.01; 650: 111.18 x 93.03; 700: 119.56 x 100.04; 800: 136.29 x 114.04; 900: 152.99 x 128.02; 1000: 169.68 x 141.99

Environment and compliance

Temperature–10 °C to 50 °C (14 °F to 122 °F)
CertificationRoHS 2.0

Mechanical

DimensionØ42 mm × 61.2 mm (Ø1.65'' × 2.1'')
Weight177 g (0.39 lb.)
MountC-mount
Flange back length17.526 mm
Shipping weight (estimated)0.35 kg
