Machine vision lenses

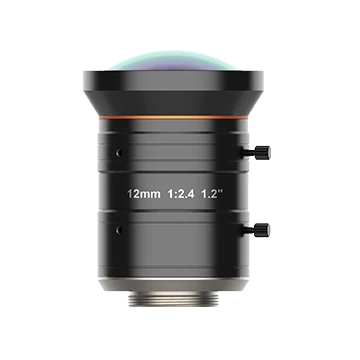

Fixed focal length, Manual iris, 25 MP, FA lens (LS-XAC-1225F)
Model LS-XAC-1225F
- Focal length12 mm
- MountC-mount
- Sensor1.2"
- ApertureF2.4 ~ F16
$239.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.4 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Fixed focal length, Manual iris, 25 MP, FA lens. Ultra-high resolution with highly uniform image sharpness 1.2" large format, large aperture, low distortion, high relative illumination
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-XAC-1225F |
|---|---|
| Minimum object distance | 0.1 m |
Optics
| Focal length | 12 mm |
|---|---|
| F-number | F2.4 ~ F16 |
| Image size | Φ19.3 mm(1.2") |
| Distortion | 0.39% |
| Field of view | D(19.30mm):76.37°; H(14.60mm):62.32°; V(12.63mm):55.34° |
| Iris control | Manual |
| Focus control | Manual |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Flange back length | 17.526 mm |
|---|---|

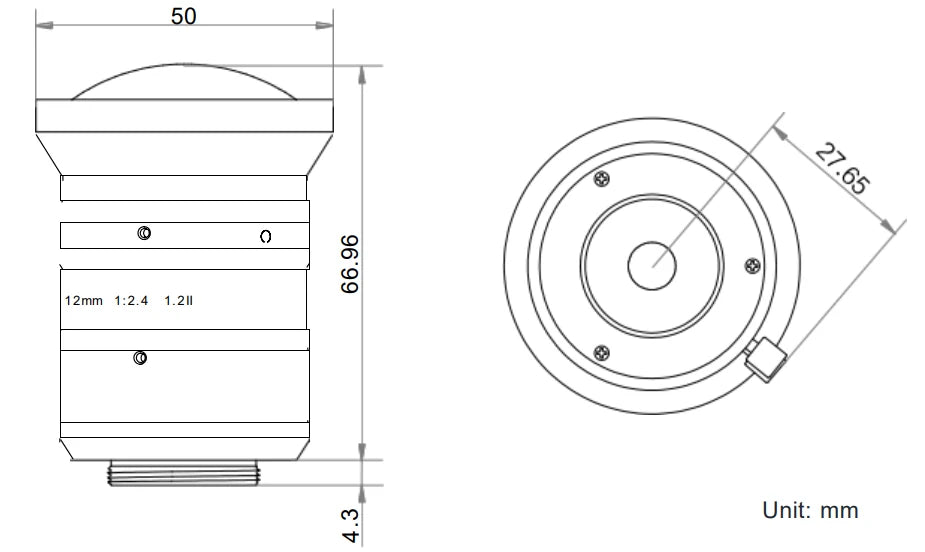

| Dimension | Φ50×66.96 mm |
| Weight | 215 g |
| Shipping weight (estimated) | 0.40 kg |
