Machine vision lenses

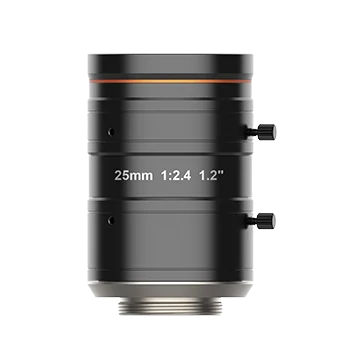

25mm, F2.4, 1.2", 25MP Lens, C-Mount (LS-KF2524M-25MP)
Model LS-KF2524M-25MP
- Focal length25 mm
- MountC-mount
- Sensor1.2"
- ApertureF2.4 to F16
$239.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.33 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25mm, F2.4, 1.2", 25MP Lens, C-Mount. Ultra high resolution and consistency of image clarity 1.2" image circle, bigger aperture, lower distortion, higher illumination relative
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KF2524M-25MP |
|---|---|
| Minimum object distance | 0.15 m |
| Close-up with extension tube | 2 mm tube, near focus: WD 99.84 mm, magnification -0.242; 2 mm tube, far focus: WD 216.93 mm, magnification -0.111; 1 mm tube, near focus: WD 120.24 mm, magnification -0.203; 1 mm tube, far focus: WD 344.84 mm, magnification -0.071 |
Optics
| Field of view | D (19.30 mm): 40.80°; H (14.60 mm): 31.42°; V (12.63 mm): 27.34° |
|---|---|
| Focal length | 25 mm |
| F-number | F2.4 to F16 |
| Image size | Ø19.3 mm (1.2'') |
| Distortion | –0.04% |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M37 × 0.5 |
| Magnification at working distance (mm) | 150: -0.164; 200: -0.123; 250: -0.098; 300: -0.082; 350: -0.070; 400: -0.062; 450: -0.055; 500: -0.049; 550: -0.045; 600: -0.041; 650: -0.038; 700: -0.035; 800: -0.031; 900: -0.027; 1000: -0.025 |
| Field of view H x V (mm) at working distance (mm), 1.2" sensor (14.6 x 12.63 mm) | 150: 89.23 x 77.13; 200: 119.19 x 103.05; 250: 148.96 x 128.79; 300: 178.64 x 154.46; 350: 208.27 x 180.09; 400: 237.87 x 205.69; 450: 267.45 x 231.27; 500: 297.02 x 256.84; 550: 326.58 x 282.40; 600: 356.12 x 307.95; 650: 385.67 x 333.50; 700: 415.21 x 359.05; 800: 474.28 x 410.13; 900: 533.34 x 461.21; 1000: 592.39 x 512.27 |
| Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm) | 150: 86.40 x 63.15; 200: 115.42 x 84.38; 250: 144.25 x 105.47; 300: 173.00 x 126.50; 350: 201.69 x 147.49; 400: 230.36 x 168.46; 450: 259.00 x 189.41; 500: 287.64 x 210.35; 550: 316.26 x 231.29; 600: 344.88 x 252.22; 650: 373.49 x 273.15; 700: 402.10 x 294.07; 800: 459.30 x 335.91; 900: 516.50 x 377.74; 1000: 573.69 x 419.57 |
| Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm) | 150: 51.53 x 43.09; 200: 68.85 x 57.59; 250: 86.07 x 71.98; 300: 103.23 x 86.34; 350: 120.36 x 100.67; 400: 137.47 x 114.98; 450: 154.57 x 129.28; 500: 171.66 x 143.58; 550: 188.74 x 157.87; 600: 205.82 x 172.15; 650: 222.90 x 186.44; 700: 239.97 x 200.72; 800: 274.12 x 229.28; 900: 308.26 x 257.83; 1000: 342.39 x 286.38 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical

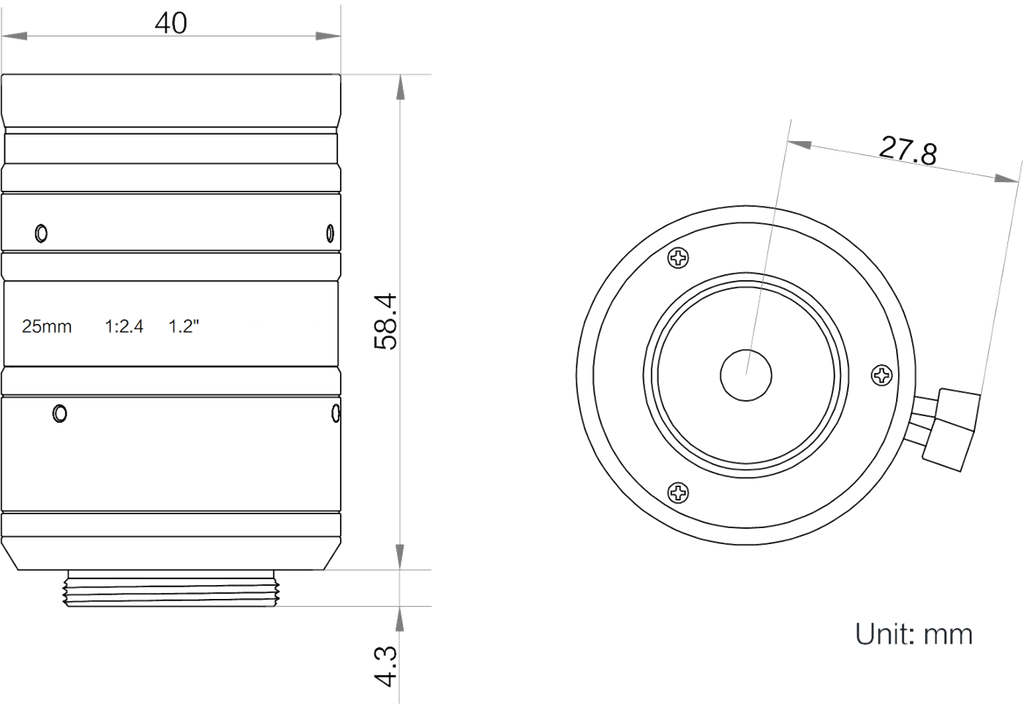

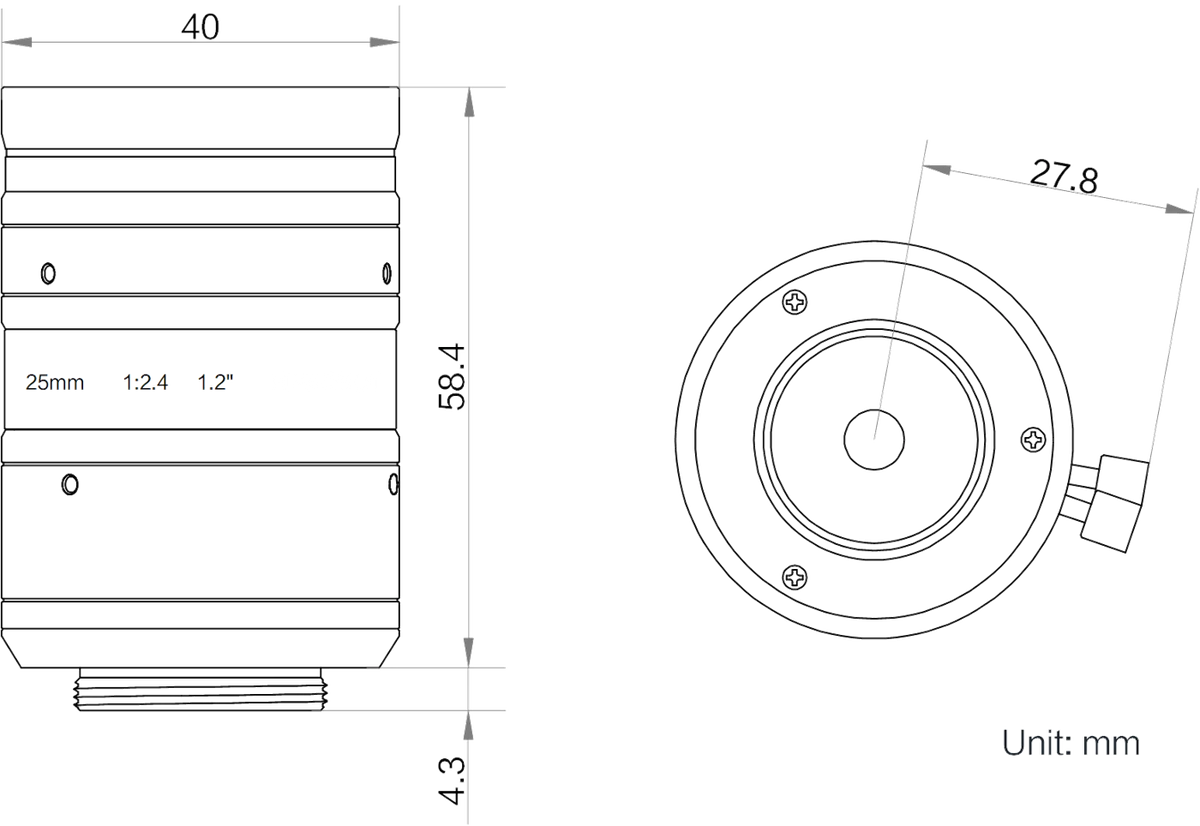

| Dimension | Ø40 × 58.4 mm (Ø1.57'' × 2.3'') |
|---|---|
| Weight | 163 g (0.359 lb.) |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Shipping weight (estimated) | 0.33 kg |
