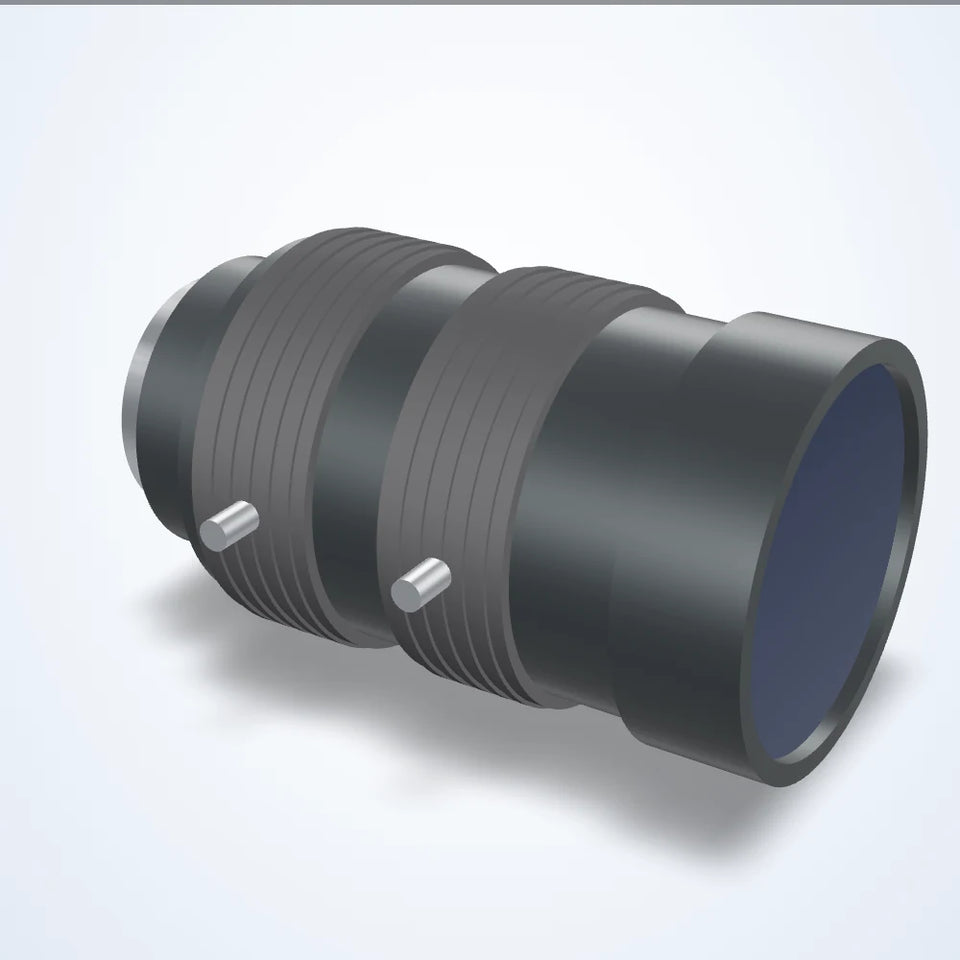

Lens series, 2/3", C-mount (S17)

Machine vision lenses

Lens series, 2/3", C-mount (S17)

  • 8 models
  • from $199.00
  • Series LS-FFL-S17

The Lens series, 2/3", C-mount (S17) is a range of 8 machine vision lenses from LumaSpec Vision, from $199.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 8 models Series datasheet (PDF)

The series at a glance

Sizes / versions
8 mm, 12 mm, 16 mm, 25 mm, 35 mm, 50 mm, 75 mm, 100 mm
Mount
C-mount
Image circle
8-11 mm
Focal length
6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm, 100 mm +
Sensor format
2/3"

All 8 models in the Lens series, 2/3", C-mount (S17)

Link
LS-FFL-0127100 mm0.06×0.1×2.8-32$199.00quoteView
LS-FFL-022175 mm0.08×0.13×2.5-22$199.00quoteView
LS-FFL-013512 mm0.16×1.4-Close$209.00quoteView
LS-FFL-014916 mm0.14×1.4-16$209.00quoteView
LS-FFL-016525 mm0.16×0.31×1.4-16$209.00quoteView
LS-FFL-018335 mm0.21×0.32×2.0-16$209.00quoteView
LS-FFL-020550 mm0.32×0.39×2.8-22$209.00quoteView
LS-FFL-02298 mm0.2×1.4-Close$239.00quoteView
