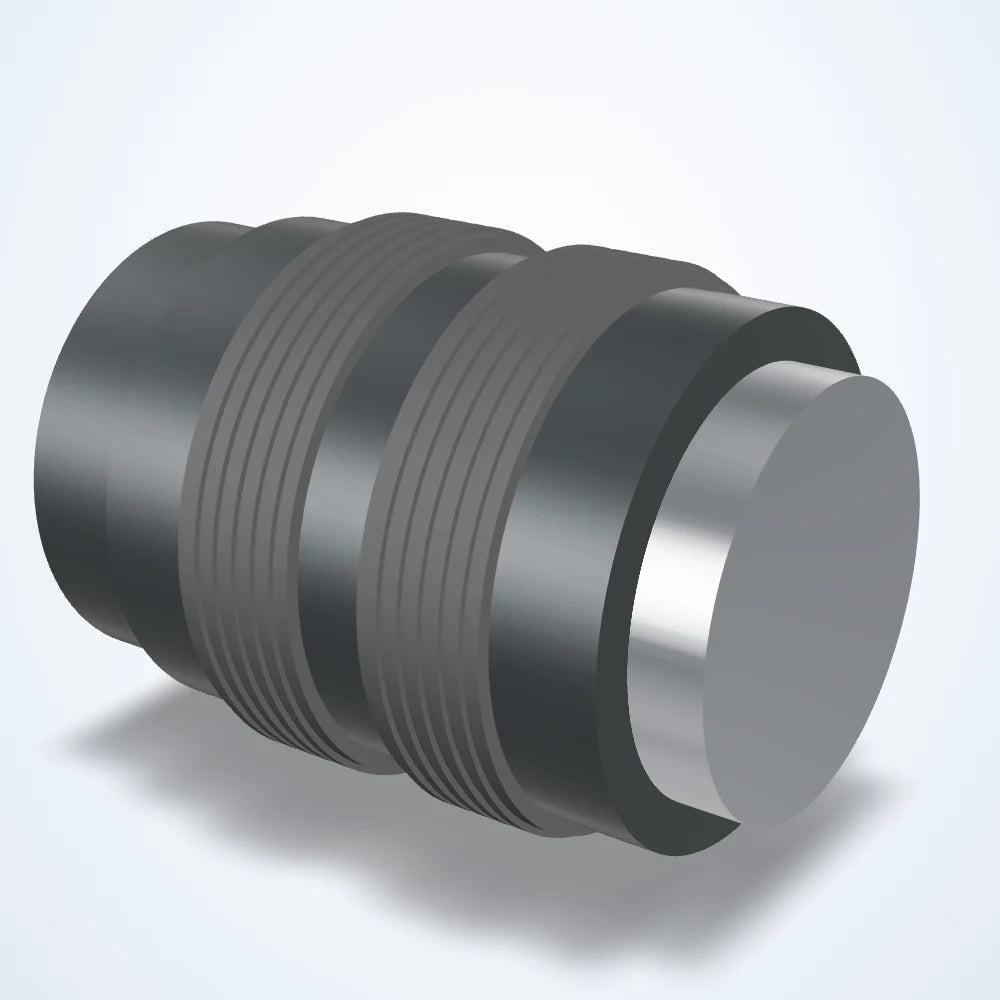

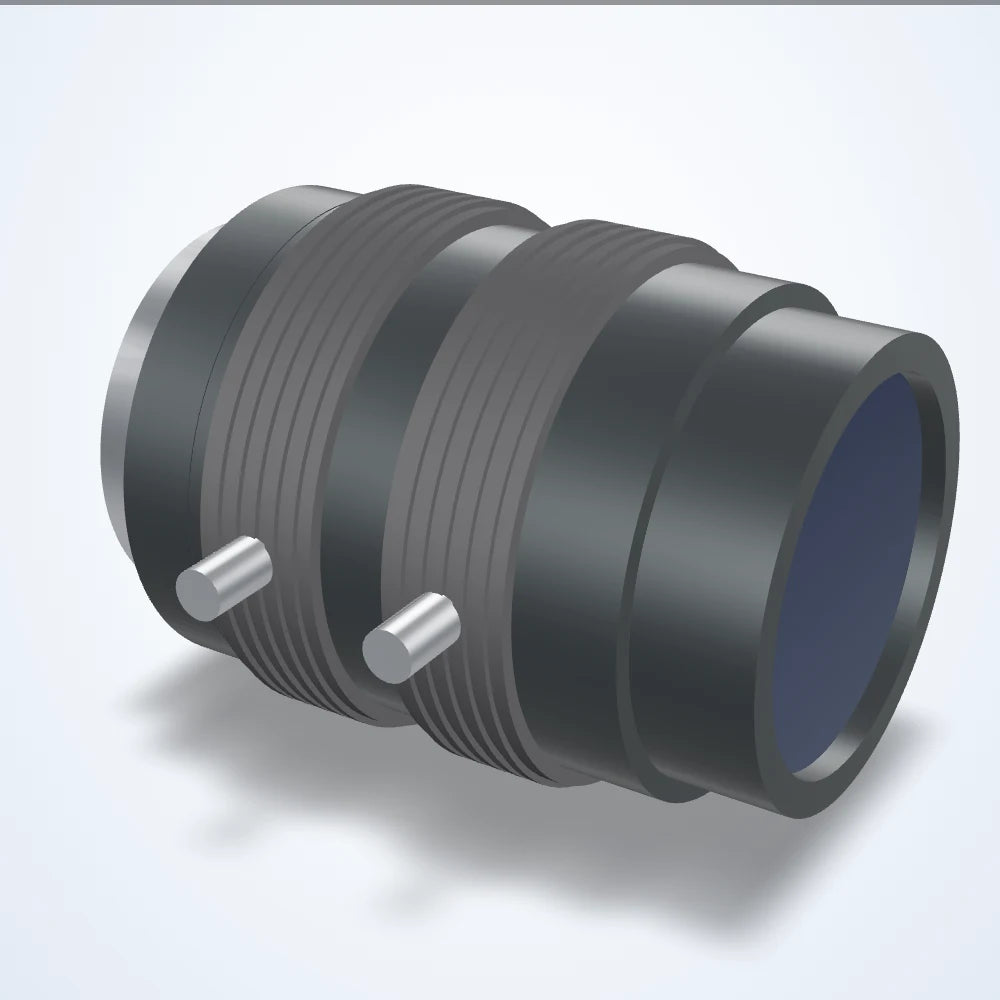

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 2/3", C-mount, 17.5 mm dia., 1.4-Close (LS-FFL-0229)
Model LS-FFL-0229
- Focal length8 mm
- Magnification0.2×
- MountC-mount
- Sensor2/3"
- Aperture1.4-Close
- Resolution120
$239.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0229 |
|---|---|
| Angle of view | 56.5 x 43.9 deg (D 66.7 deg) |
| Angle of view @ 1/1.8″ | 47.4° × 36.3° |
| Angle of view @ 1/2″ | 42.6° × 32.5° |
| Angle of view @ 2/3″ | 56.5° × 43.9° |
| Entrance pupil (enp) | 14.6mm |
| Exit pupil | 214.3mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 17.5mm / Rear 15.6mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Minimum object distance with 1mm ring | 30 mm |
| Shooting range at mod (2/3") | V 90.0mm / H 120.3mm / D 148.6mm |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 8 mm |
|---|---|
| Aperture (F) | 1.4-Close |
| Distortion | -0.6% (TV) |
| Back focus | 9.74mm in air |
| Filter thread | M27x0.5 |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.2× |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100lp/mm / Corner 80lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

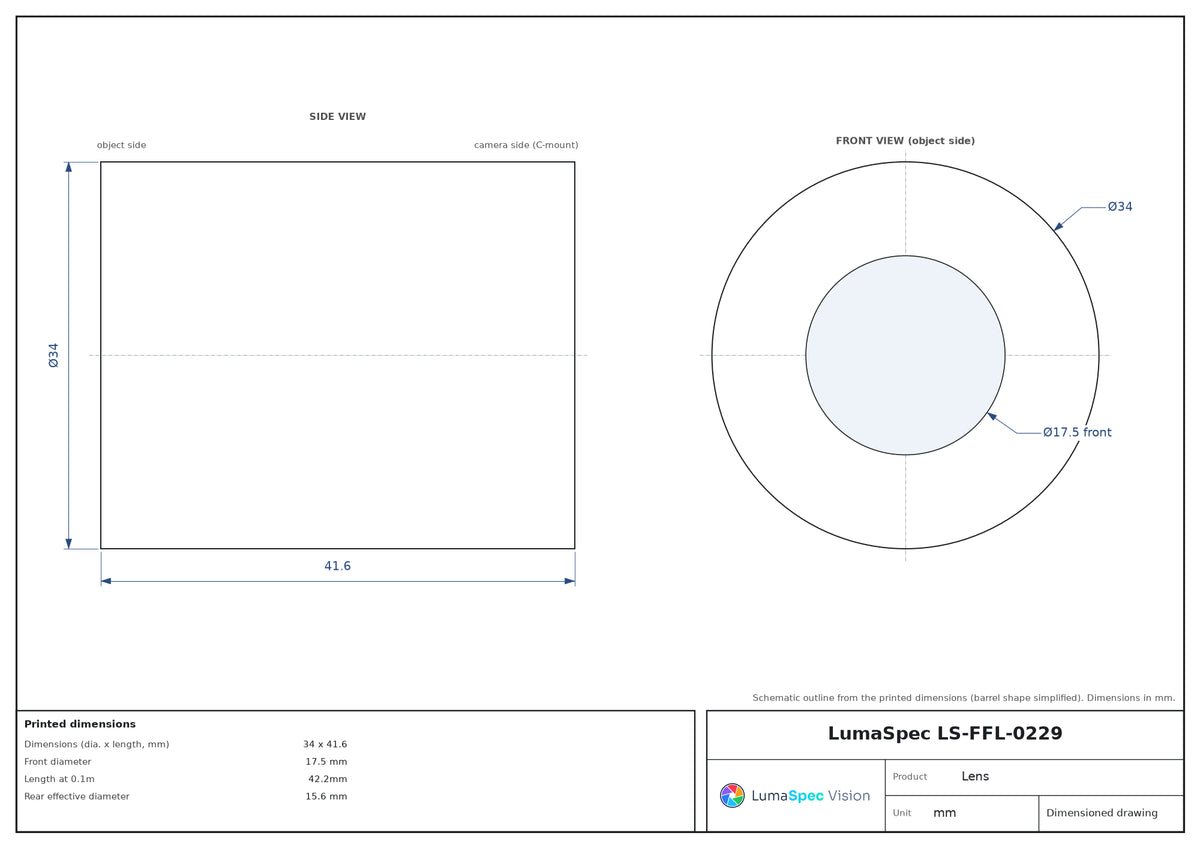

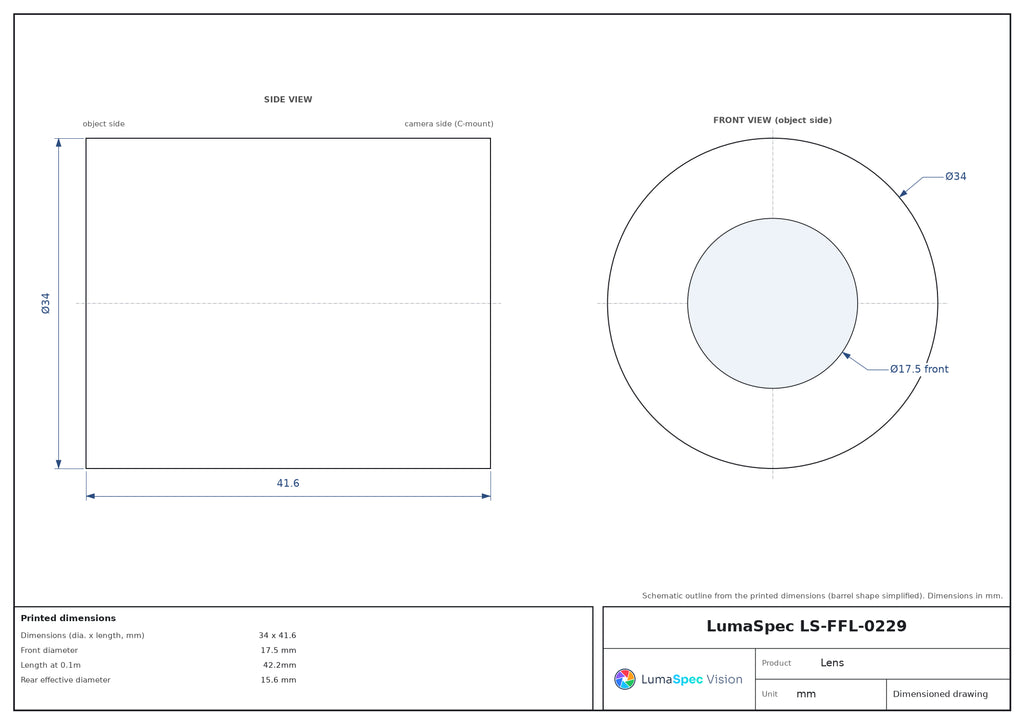

| Dimensions (dia. x length, mm) | 34 x 41.6 |
| Front diameter | 17.5 mm |
| Length at 0.1m | 42.2mm |
| Picture size (2/3") | 6.6x8.8mm |
| Weight (g) | 90 |
