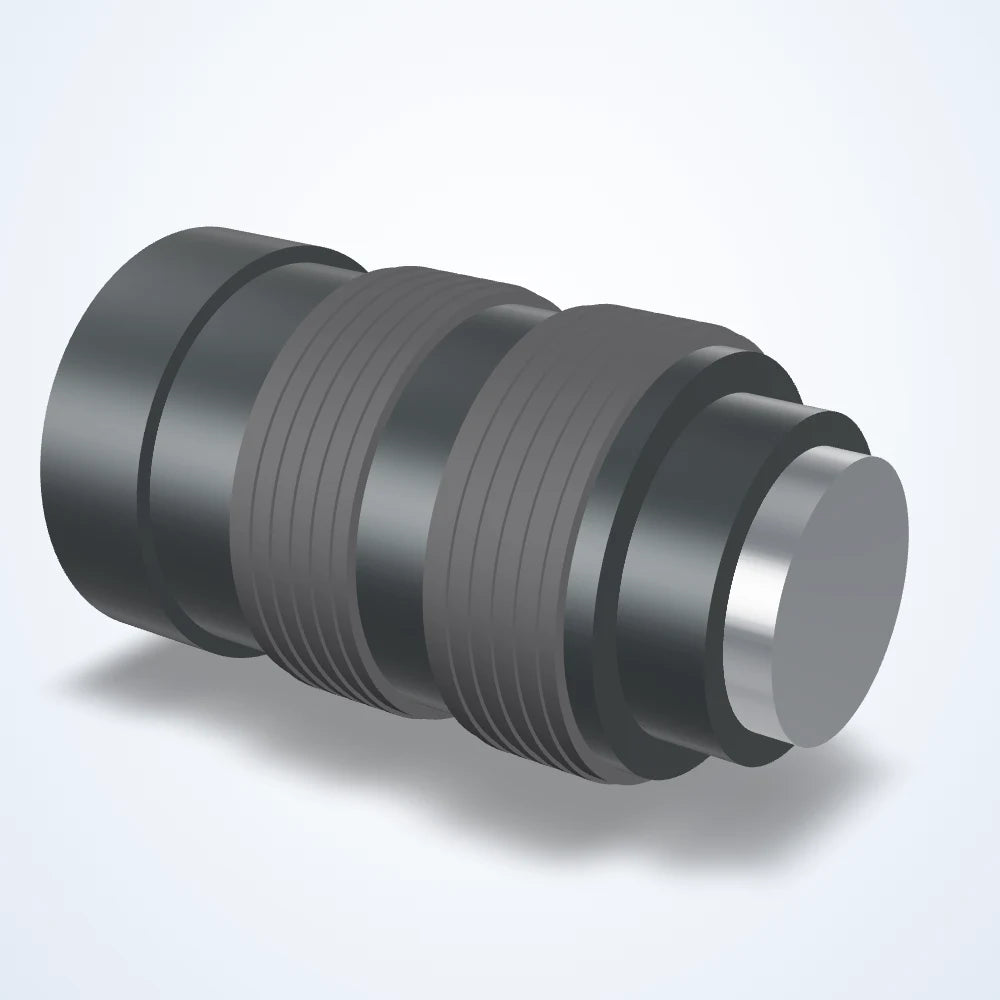

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
100 mm lens, 2/3", C-mount (LS-FFL-0127)
Model LS-FFL-0127
- Focal length100 mm
- Magnification0.15×
- MountC-mount
- Sensor2/3"
- Aperture2.8-32
- Resolution120
$199.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0127 |
|---|---|
| Angle of view | 5.0 x 3.8 deg (H x V), 6.3 deg diagonal |
| Angle of view @ 1/1.8″ | 4.1° × 3.1° |
| Angle of view @ 1/2″ | 3.7° × 2.8° |
| Angle of view @ 2/3″ | 5.0° × 3.8° |
| Exit pupil | -31.0mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 35.2mm / Rear 11.2mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 2.0 |
| Minimum object distance with 10mm ring | 740 mm |
| Minimum object distance with 1mm ring | 1700 mm |
| Minimum object distance with 20mm ring | 480 mm |
| Minimum object distance with 5mm ring | 1060 mm |
| Shooting range at mod (2/3") | V 126.6mm, H 168.8mm, D 211.1mm |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 100 mm |
|---|---|
| Aperture (F) | 2.8-32 |
| Distortion | -0.05% (TV) |
| Back focus | 19.0mm in air |
| Filter thread | M40.5x0.5 |
| Focus control | Manual |
| Focus range | 2.0 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Magnification with 10mm ring | 0.15× |
| Magnification with 1mm ring | 0.06× |
| Magnification with 20mm ring | 0.25× |
| Magnification with 5mm ring | 0.1× |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100 lp/mm / Corner 80 lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -40~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

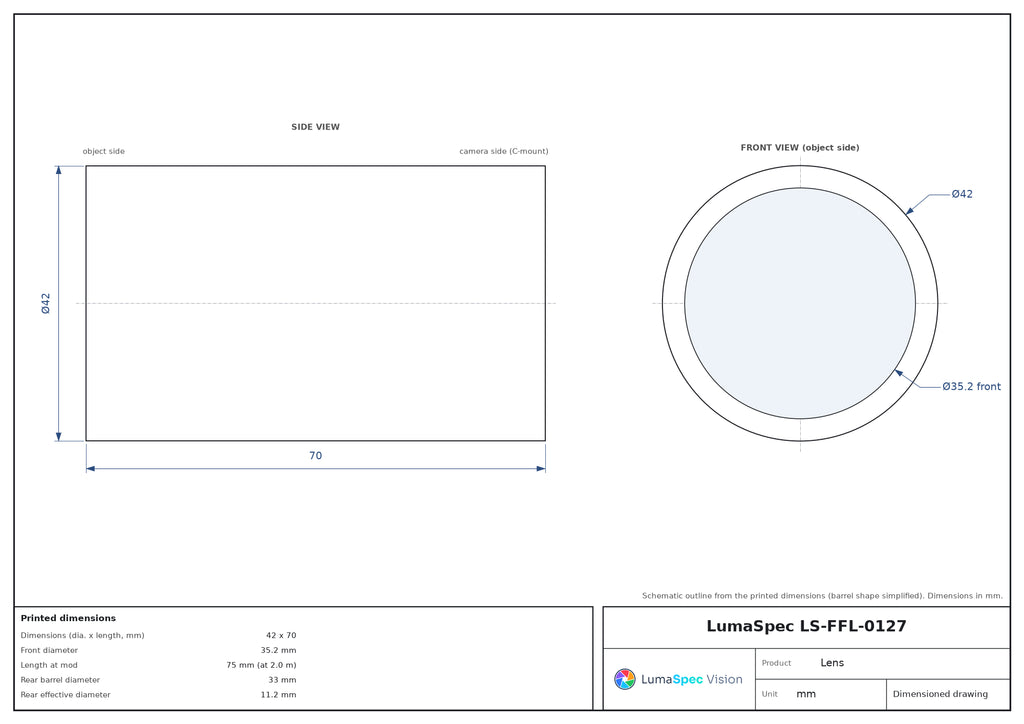

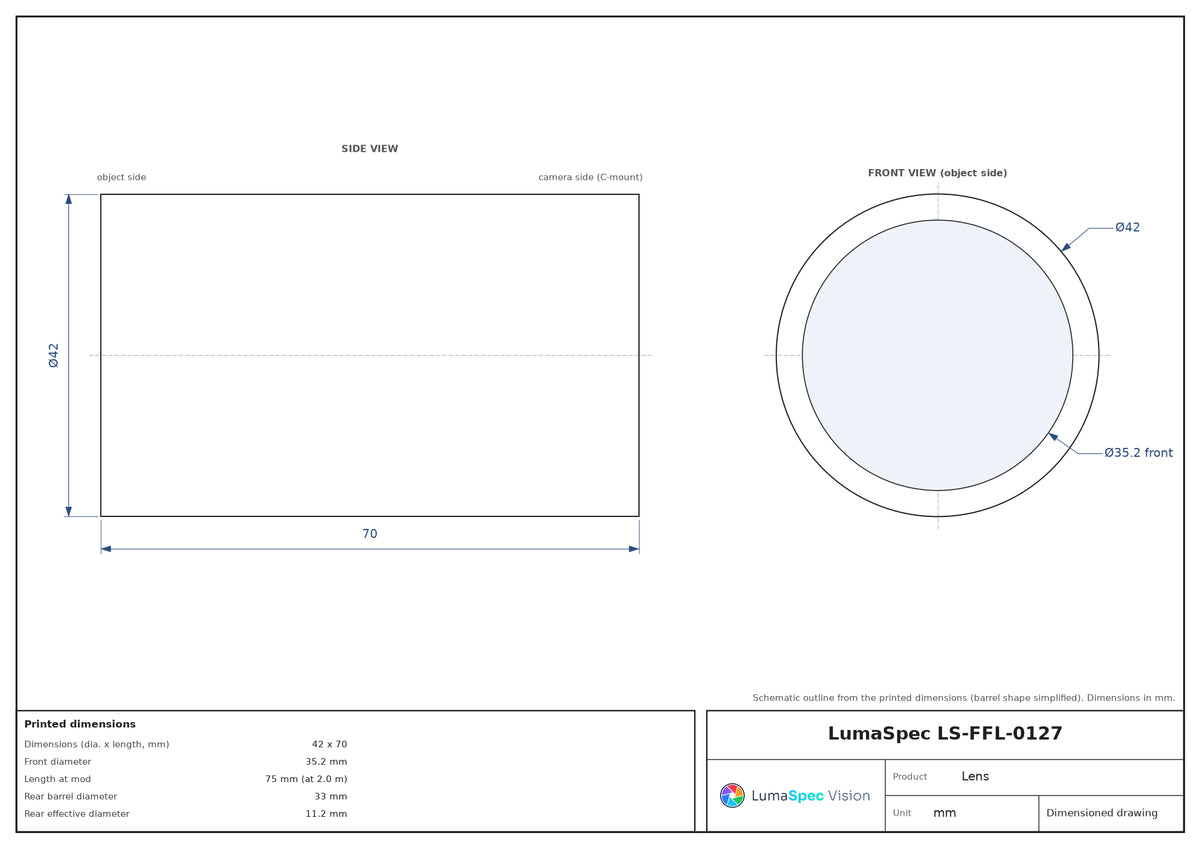

| Dimensions (dia. x length, mm) | 42 x 70 |
| Front diameter | 35.2 mm |
| Length at mod | 75 mm (at 2.0 m) |
| Mount thread | 1-32UNF |
| Rear barrel diameter | 33 mm |
| Weight (g) | 145 |
