Machine vision lenses

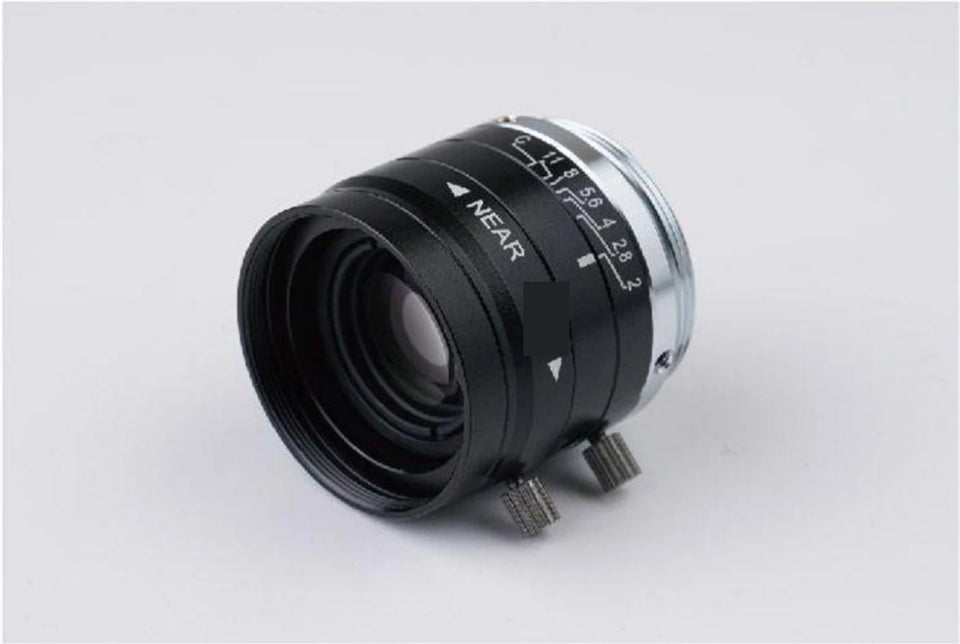

1/1.8" 5MP FA lens (LS-FFL-S87)
- 9 models
- from $159.00
- Series LS-FFL-S87
The 1/1.8" 5MP FA lens (LS-FFL-S87) is a range of 9 machine vision lenses from LumaSpec Vision, from $159.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 4 mm, 1/1.8", C-mount, 6 mm, 1/1.8", C-mount, 8 mm, 1/1.8", C-mount, 12 mm, 1/1.8", C-mount, 16 mm, 1/1.8", C-mount, 25 mm, 1/1.8", C-mount, 35 mm, 1/1.8", C-mount, 50 mm, 1/1.8", C-mount, 75 mm, 1/1.8", C-mount
- Mount
- C-mount
- Resolution
- 5 MP
- Image circle
- 8-11 mm
- Focal length
- Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1/1.8" - 1/1.56"
Features
- 5MP, suitable for 2MP, 3MP, 5MP cameras
- Aperture manually adjustable, fixed aperture optional
- TV distortion < 0.1%
- Complete EFL range, from 4 mm to 75 mm
- Small size, ultra-compact design
- High contrast industrial FA lens
Typical uses
- Automobile: yes or no / identify - identify the type of safety belt harness
- Container: blemish / stain - check the appearance of the bottle cap
- Electronic equipment: yes or no / identify - check the bundling of motor wires, bad and broken leads
- Food: recognition - barcode reading of the package
All 9 models in the 1/1.8" 5MP FA lens (LS-FFL-S87)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0583 | 4 mm, 1/1.8", C-mount | 4 | F2.0-C | 82.9° x 66.5° | $159.00 | View |
| LS-FFL-0584 | 6 mm, 1/1.8", C-mount | 6 | F2.0-C | 59.6° x 46° | $169.00 | View |
| LS-FFL-0585 | 8 mm, 1/1.8", C-mount | 8 | F2.0-C | 46.8° x 36° | $169.00 | View |
| LS-FFL-0586 | 12 mm, 1/1.8", C-mount | 12 | F2.0-C | 33° x 24.3° | $179.00 | View |
| LS-FFL-0587 | 16 mm, 1/1.8", C-mount | 16 | F2.0-C | 24.7° x 18.2° | $189.00 | View |
| LS-FFL-0588 | 25 mm, 1/1.8", C-mount | 25 | F2.0-C | 13.6° x 11.3° | $199.00 | View |
| LS-FFL-0589 | 35 mm, 1/1.8", C-mount | 35 | F2.0-C | 11.8° x 8.7° | $229.00 | View |
| LS-FFL-0590 | 50 mm, 1/1.8", C-mount | 50 | F2.8-22 | 8.2° x 6.1° | $249.00 | View |
| LS-FFL-0591 | 75 mm, 1/1.8", C-mount | 75 | F2.8-22 | 5.4° x 4.04° | $309.00 | View |
