Machine vision lenses

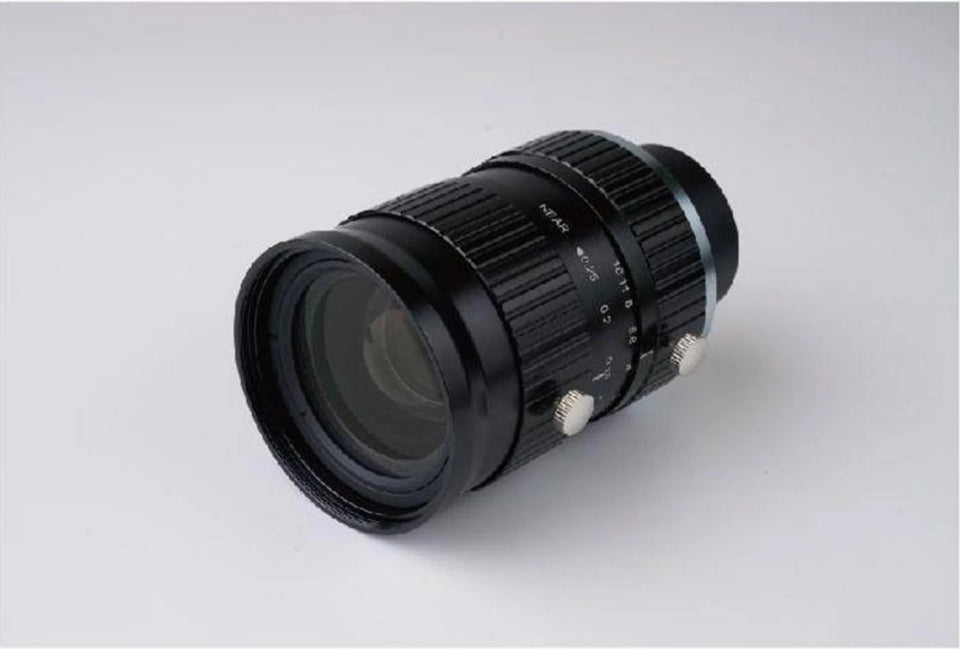

Large format lens (LS-FFL-S140)
- 7 models
- from $969.00
- Series LS-FFL-S140
The Large format lens (LS-FFL-S140) is a range of 7 machine vision lenses from LumaSpec Vision, from $969.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 35 mm, F-Mount, 40 mm, F-Mount, 50 mm, F-Mount, 60 mm, F-Mount, 80 mm, F-Mount, 90 mm, F-Mount
- Mount
- F-mount
- Image circle
- 30-45 mm, 45-60 mm, 60-90 mm
- Focal length
- 25-50 mm, 50-100 mm
- Sensor format
- APS-H / Full frame, Medium / large
Features
- Support 29MP sensor / suitable for 4k line scan cameras with 5µ/7µ pixel size
- Max image circle is up to 43mm
- Better optical performance than SLR lens
- Standard EFL and magnification available
- Applied to printing and packaging inspection
Typical uses
- Industrial: blemish / stain - detect defects and blemishes on steel plates
- Electronic equipment: yes or no / identify - identify the colour of the battery pack
- Electronic component: height - detecting metal markings
- Liquid crystal, semiconductor: calculate - SD card number calculation
All 7 models in the Large format lens (LS-FFL-S140)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-1500 | 35 mm, F-Mount | dia. 45 mm image circle | 35 | 350.9 | $969.00 | View |
| LS-FFL-1501 | 35 mm, F-Mount | dia. 44 mm image circle | 35 | 194.1 | $969.00 | View |
| LS-FFL-1502 | 40 mm, F-Mount | dia. 43.2 mm image circle | 40 | 409 | $1,019.00 | View |
| LS-FFL-1503 | 50 mm, F-Mount | dia. 44 mm image circle | 50 | 833.4 | $1,099.00 | View |
| LS-FFL-1504 | 60 mm, F-Mount | dia. 64 mm image circle | 60 | 384.9 | $1,189.00 | View |
| LS-FFL-1505 | 80 mm, F-Mount | dia. 58 mm image circle | 80 | 306.2 | $1,359.00 | View |
| LS-FFL-1506 | 90 mm, F-Mount | dia. 43.2 mm image circle | 90 | 1985 | $1,449.00 | View |
