Machine vision lenses

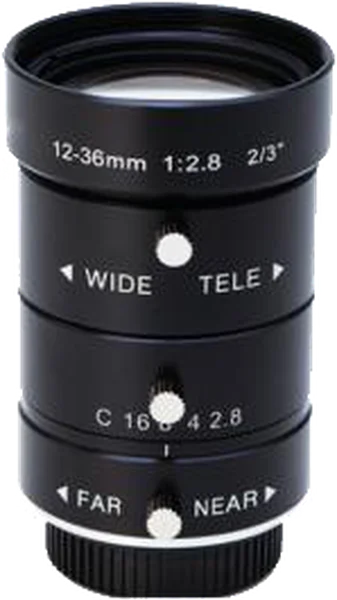

Machine Vision Zoom lenses (LS-FFL-S101)
- 8 models
- from $519.00
- Series LS-FFL-S101
The Machine Vision Zoom lenses (LS-FFL-S101) is a range of 8 machine vision lenses from LumaSpec Vision, from $519.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 6-12 mm, 1/1.8", 3 MP, C-mount, 7-36 mm, 1/1.8", 6 MP, C-mount, 10-50 mm, 1/1.8", 6 MP, C-mount, 10-55 mm, 1/1.7", 10 MP, C-mount, 12-36 mm, 2/3", 3 MP, C-mount, 12-36 mm, 2/3", 5 MP, C-mount, 12-36 mm, 2/3", 8 MP, C-mount, 16-35 mm, 2/3", 10 MP, C-mount
- Type
- Machine vision zoom
- Mount
- C-mount
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP
- Image circle
- 8-11 mm
- Focal length
- Varifocal / zoom
- Sensor format
- 1/1.8" - 1/1.56", 2/3"
Features
- High resolution: 5.0 megapixel cover all 4K & 1080P
- Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
- Big aperture: F1.4 big aperture makes imaging far better
- Low distortion: <1% low distortion use machine vision ITS
- High resolution: 8.0 megapixel cover all 4K & 1080P
- Wide focal: 12-36mm focal length support variety working distance.
- Low distortion: -3.4% ~0.3% low distortion
- High resolution: 6.0 megapixel
Typical uses
- Electronics
- SMT / AOI
- Automation
- Life sciences
- Public security
- Intelligent transportation (ITS)
All 8 models in the Machine Vision Zoom lenses (LS-FFL-S101)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-1179 | dia. 40.3 x 58 mm | 3.0 Megapixel | 12-36 mm | F2.8-C Manual iris | $519.00 | View |
| LS-FFL-1180 | dia. 45 x 63.9 | 5.0 Megapixel | 12-36 mm | F2.8 Manual Iris | $519.00 | View |
| LS-FFL-1181 | dia. 45 x 63.9 mm | 8 MP | 12-36 mm | F2.8 manual iris | $519.00 | View |
| LS-FFL-1182 | dia. 37 x 58.5mm | 6 Megapixel | 7-36mm | F2.8 Manual iris | $519.00 | View |
| LS-FFL-1183 | dia. 37 x 61 mm | 6 Megapixel | 10-50 mm | F2.8 Manual iris | $519.00 | View |
| LS-FFL-1184 | dia. 37.5 x 64.2mm | 10 Megapixel | 10-55mm | F2.8 Manual iris | $519.00 | View |
| LS-FFL-1185 | dia. 33 x 37 | 3.0 Megapixel | 6-12 mm | F1.6 Manual Iris | $519.00 | View |
| LS-FFL-1186 | dia. 40 x 59.57 mm | 10 Megapixel | 16-35 mm | F2.0 | $519.00 | View |
