Machine vision lenses
10-55 mm, 1/1.7", 10 MP, C-mount Machine Vision Zoom Lens (LS-FFL-1184)
Model LS-FFL-1184
- Focal length10-55mm
- MountC-mount
- Sensor1/1.7"
- ApertureF2.8 Manual iris
- Resolution10 Megapixel
$519.00
Ships in 2-3 weeks
0.27 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
10-55 mm, 1/1.7", 10 MP, C-mount Machine Vision Zoom Lens. 10-55 mm F2.8 manual-iris varifocal machine vision lens for 1/1.7" 10 megapixel cameras, compact, low distortion -0.1% to 0.05% for measurement and positioning. At a glance: focal length 10-55mm; format 1/1.7"; resolution 10 Megapixel; aperture F2.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1184 |
|---|---|
| Format | 1/1.7" |
| Angle of view (1/1.7") | W: 51 x 41 x 31 T: 9.6 x 7.7 x 5.8 |
| Angle of view (1/1.8") | W: 49 x 41 x 28 T: 9.2 x 7.7 x 5.2 |
| Angle of view (1/2.8") | W: 36 x 31 x 18 T: 6.7 x 5.8 x 3.3 |
| Angle of view (1/1.7", DxHxV) | W: 51 x 41 x 31 deg; T: 9.6 x 7.7 x 5.8 deg |
| Angle of view (1/1.8", DxHxV) | W: 49 x 41 x 28 deg; T: 9.2 x 7.7 x 5.2 deg |
| Angle of view (1/2.8", DxHxV) | W: 36 x 31 x 18 deg; T: 6.7 x 5.8 x 3.3 deg |
Optics
| Focal length | 10-55mm |
|---|---|
| Aperture | F2.8 Manual iris |
| M.O.D. | W 10mm ~ T 200mm |
| Distortion (TV) | -0.1% ~ 0.05% |
| Filter thread | M35.5 P=0.5 |
Sensor and imaging
| Resolution | 10 Megapixel |
|---|
Environment and compliance
| Operating temperature | -20°~+60° |
|---|
Mechanical
| Filter size | M35.5 P=0.5 |
|---|---|

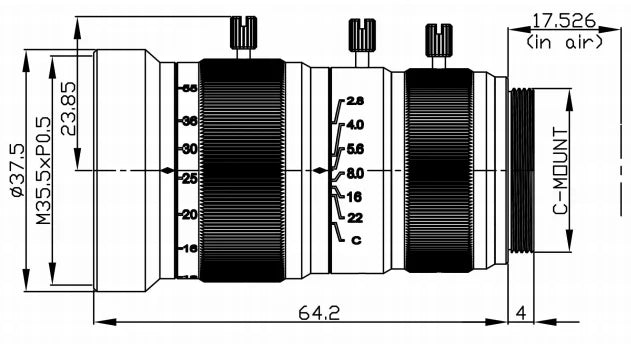

| Size | dia. 37.5 x 64.2mm |
| Mount | C |
| Weight | 118g |
| Shipping weight (estimated) | 0.27 kg |
Other models in the Machine Vision Zoom lenses (LS-FFL-S101) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1179 | 12-36 mm, 2/3", 3 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-1180 | 12-36 mm, 2/3", 5 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-1181 | 12-36 mm, 2/3", 8 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-1182 | 7-36 mm, 1/1.8", 6 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-1183 | 10-50 mm, 1/1.8", 6 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-1185 | 6-12 mm, 1/1.8", 3 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-1186 | 16-35 mm, 2/3", 10 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
