12-36 mm, 2/3", 5 MP, C-mount Machine Vision Zoom Lens (LS-FFL-1180)
  • 12-36 mm, 2/3", 5 MP, C-mount Machine Vision Zoom Lens (LS-FFL-1180)

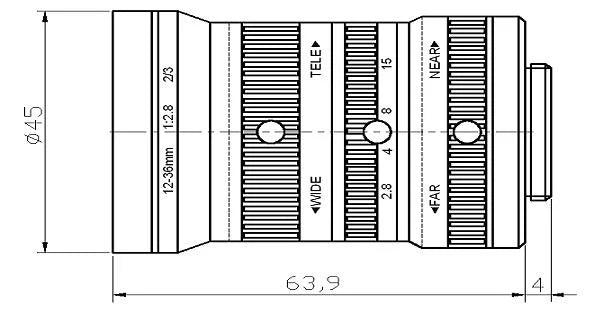

  • LS-FFL-1180 dimensions (mm)

Machine vision lenses

12-36 mm, 2/3", 5 MP, C-mount Machine Vision Zoom Lens (LS-FFL-1180)

Model LS-FFL-1180

  • Focal length12-36 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF2.8 Manual Iris
  • Resolution5.0 Megapixel
$519.00

Ships in 2-3 weeks

0.37 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12-36 mm, 2/3", 5 MP, C-mount Machine Vision Zoom Lens (LS-FFL-1180)LS-FFL-1180

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12-36 mm, 2/3", 5 MP, C-mount Machine Vision Zoom Lens. 5.0 megapixel 12-36 mm machine vision zoom lens with a 2/3" format covering 2/3", 1/1.8" and 1/2" cameras, for automation and machine vision. At a glance: focal length 12-36 mm; format 2/3"; resolution 5.0 Megapixel; aperture F2.8 Manual Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1180
Format2/3"
Angle of view (2/3")50.8 x 41.2 x 31.2 deg
Angle of view (1/2")37.7 x 30.3 x 22.8 deg

Optics

Focal length12-36 mm
ApertureF2.8 Manual Iris

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

Sizedia. 45 x 63.9
MountC
Weight192 g
Shipping weight (estimated)0.37 kg

Other models in the Machine Vision Zoom lenses (LS-FFL-S101) series

See all 8 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-1179 12-36 mm, 2/3", 3 MP, C-mount $519.00 Ships in 2-3 weeks View
LS-FFL-1181 12-36 mm, 2/3", 8 MP, C-mount $519.00 Ships in 2-3 weeks View
LS-FFL-1182 7-36 mm, 1/1.8", 6 MP, C-mount $519.00 Ships in 2-3 weeks View
LS-FFL-1183 10-50 mm, 1/1.8", 6 MP, C-mount $519.00 Ships in 2-3 weeks View
LS-FFL-1184 10-55 mm, 1/1.7", 10 MP, C-mount $519.00 Ships in 2-3 weeks View
LS-FFL-1185 6-12 mm, 1/1.8", 3 MP, C-mount $519.00 Ships in 2-3 weeks View
LS-FFL-1186 16-35 mm, 2/3", 10 MP, C-mount $519.00 Ships in 2-3 weeks View
