Machine vision lenses

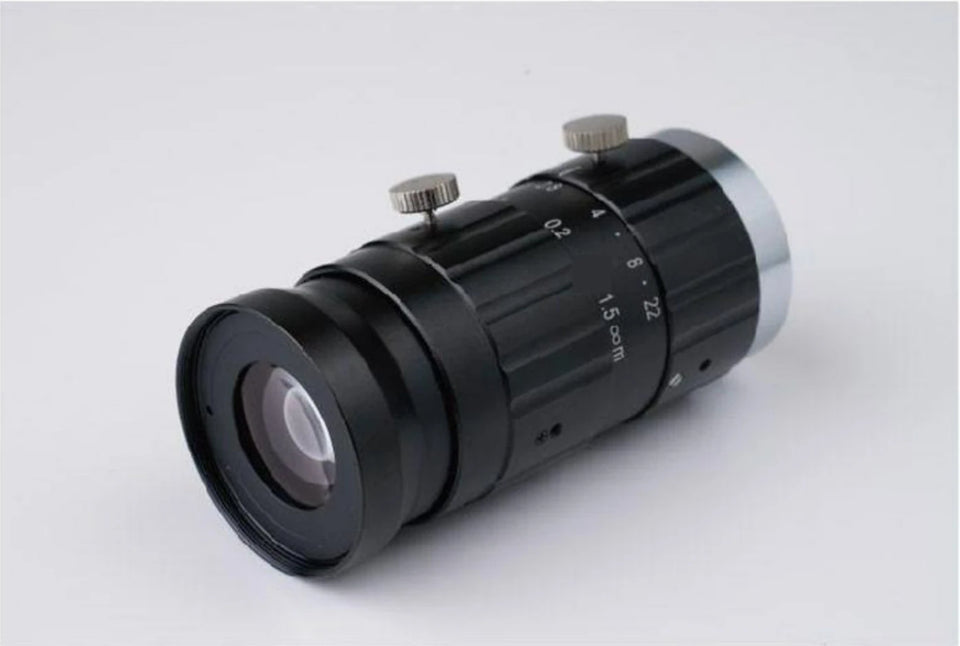

Fixed lens for FA, 1.1" 20MP (LS-FFL-S88)
- 7 models
- from $659.00
- Series LS-FFL-S88
The Fixed lens for FA, 1.1" 20MP (LS-FFL-S88) is a range of 7 machine vision lenses from LumaSpec Vision, from $659.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 6 mm, 1.1", C-Mount, 8 mm, 1.1", C-Mount, 12 mm, 1.1", C-Mount, 16 mm, 1.1", C-Mount, 25 mm, 1.1", C-Mount, 35 mm, 1.1", C-Mount, 50 mm, 1.1", C-Mount
- Mount
- C-mount
- Resolution
- 16-25 MP
- Image circle
- 16-22 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1.1" - 1.2"
Features
- Ultra-high imaging quality
- Support 20MP area scan cameras
- High relative illumination, with big aperture
- Distortion <0.1%
- Focus range from 0.1 m to infinity
- Compatible with 1" and 2/3" sensor
Typical uses
- Electronic component: yes or no / identify - check the number of tiny chips and poor imprint
- Electronic component: blemish / stain - detecting camera defects
- Liquid crystal, semiconductor: geometrical measurement - detect IC wire bending
- Electronic component: connector - connector pin flatness detection
All 7 models in the Fixed lens for FA, 1.1" 20MP (LS-FFL-S88)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0592 | 6 mm, 1.1", C-Mount | 6 | F1.8-16 | 95.4° x 78.4° | $659.00 | View |
| LS-FFL-0593 | 8 mm, 1.1", C-Mount | 8 | F1.4-16 | 77.1° x 61.8° | $669.00 | View |
| LS-FFL-0594 | 12 mm, 1.1", C-Mount | 12 | F2.8-22 | 54.8° x 42.3° | $669.00 | View |
| LS-FFL-0595 | 16 mm, 1.1", C-Mount | 16 | F2.8-22 | 43.6° x 33.4° | $679.00 | View |
| LS-FFL-0596 | 25 mm, 1.1", C-Mount | 25 | F2.8-22 | 27.6° x 20.9° | $689.00 | View |
| LS-FFL-0597 | 35 mm, 1.1", C-Mount | 35 | F2.8-22 | 20.6° x 15.45° | $709.00 | View |
| LS-FFL-0598 | 50 mm, 1.1", C-Mount | 50 | F2.8-22 | 14.6° x 10.9° | $739.00 | View |
