Machine vision lenses

Fixed lens for FA, 1.1" 20MP, 35 mm, C-Mount (LS-FFL-0597)

Model LS-FFL-0597

Focal length35 mm
MountC-mount
Sensor1.1"
ApertureF2.8-22
Resolution20MP
Field of view22.6° x 17°

$709.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Ultra-high imaging quality 1.1" FA lenses supporting 20MP area scan cameras, with high relative illumination, big aperture, distortion <0.1%, focus from 0.1 m to infinity; compatible with 1" and 2/3" sensors.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0597
F/NO	2.8-22
EFL	35mm
MOD	0.2m

Optics

Distortion	<0.1%
Image size	1.1"
Image size (dia.)	1.1"
Field of view angle 1.1"	22.6° x 17°
Field of view angle 1"	20.6° x 15.45°
Field of view angle 2/3"	14.3° x 10.7°
Distortion (TV) 1.1"	<0.02%
Focal length (mm)	35
Aperture	F2.8-22

Sensor and imaging

Resolution	20MP
Sensor format	1.1"

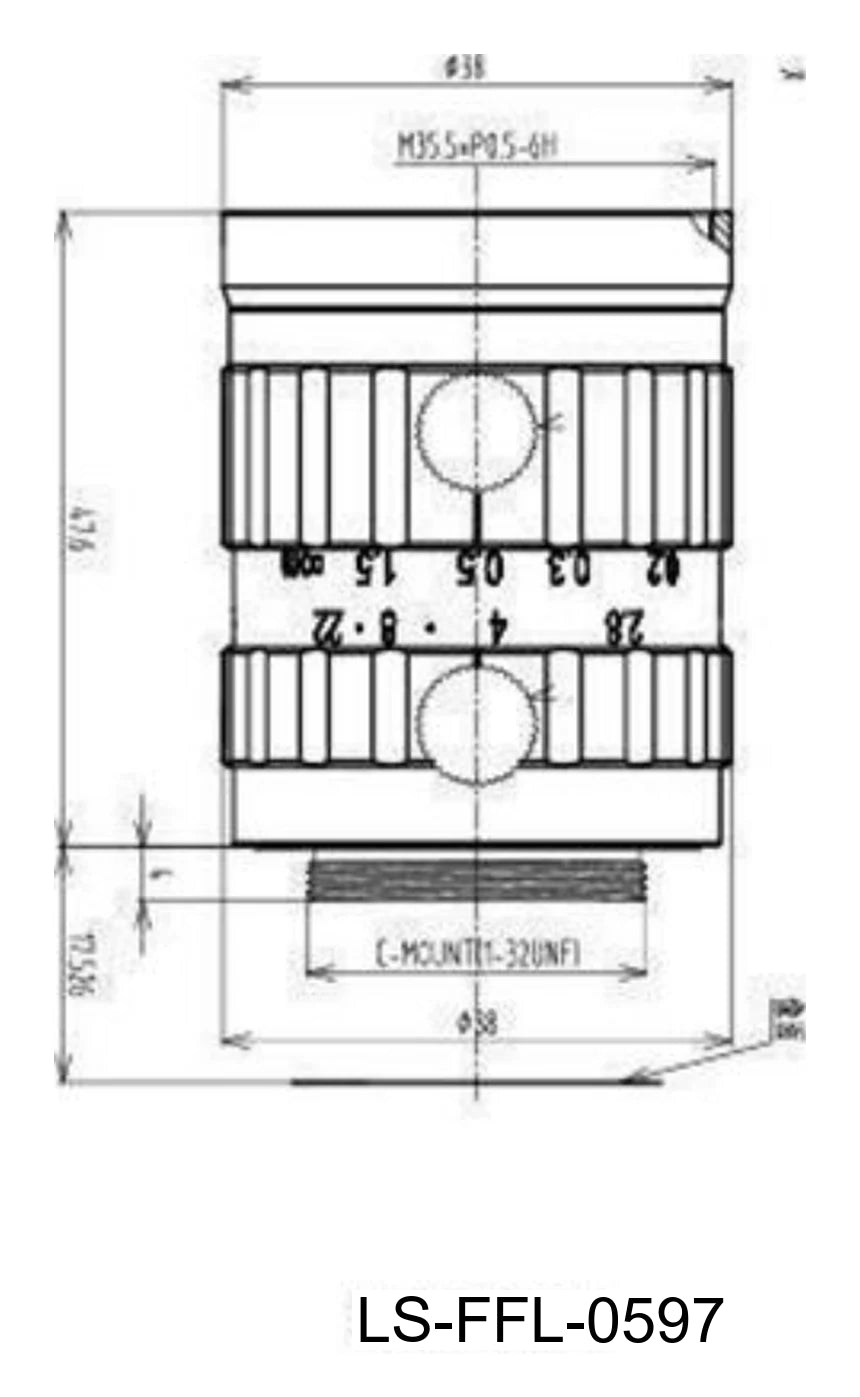

Mechanical

Mount	C-Mount
Filter size	M35.5×P0.5
Shipping weight	0.38 kg

Downloads

Datasheet (PDF)LS-FFL-0597 · 1.2 MB

Features

Ultra-high imaging quality
Support 20MP area scan cameras
High relative illumination, with big aperture
Distortion <0.1%
Focus range from 0.1 m to infinity
Compatible with 1" and 2/3" sensor

Applications

Electronic component: yes or no / identify - check the number of tiny chips and poor imprint
Electronic component: blemish / stain - detecting camera defects
Liquid crystal, semiconductor: geometrical measurement - detect IC wire bending
Electronic component: connector - connector pin flatness detection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Fixed lens for FA, 1.1" 20MP (LS-FFL-S88) series

See all 7 models

Model	Size / key data	Price	Availability	Link
LS-FFL-0592	6 mm, 1.1", C-Mount	$659.00	Ships in 2-3 weeks	View
LS-FFL-0593	8 mm, 1.1", C-Mount	$669.00	Ships in 2-3 weeks	View
LS-FFL-0594	12 mm, 1.1", C-Mount	$669.00	Ships in 2-3 weeks	View
LS-FFL-0595	16 mm, 1.1", C-Mount	$679.00	Ships in 2-3 weeks	View
LS-FFL-0596	25 mm, 1.1", C-Mount	$689.00	Ships in 2-3 weeks	View
LS-FFL-0598	50 mm, 1.1", C-Mount	$739.00	Ships in 2-3 weeks	View
