Machine vision lenses

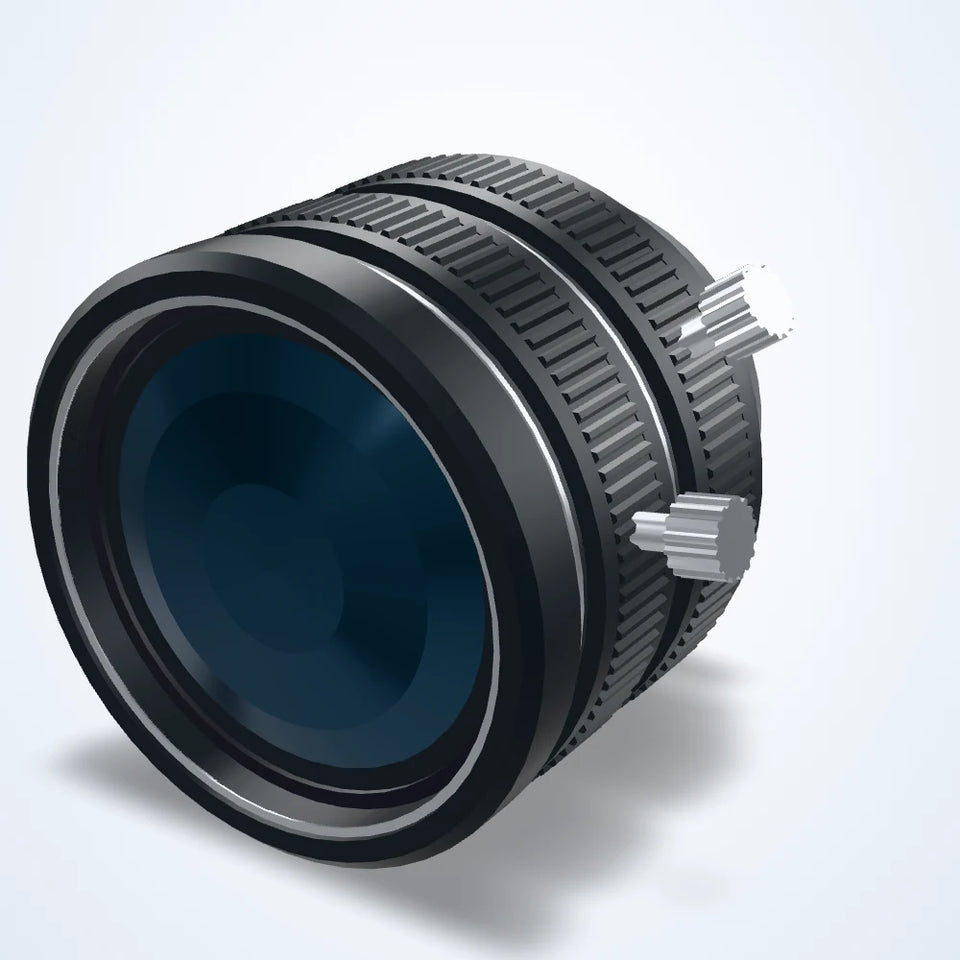

1.1" fixed focal length lenses (LS-FFL-S107)
- 19 models
- from $184.00
- Series LS-FFL-S107
The 1.1" fixed focal length lenses (LS-FFL-S107) is a range of 19 machine vision lenses from LumaSpec Vision, from $184.00. It comes in 13 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 6 mm, 1.1", C-mount, 8 mm, 1.1", C-mount, 12 mm, 1.1", 12 mm, 1.1", C-mount, 16 mm, 1.1", 16 mm, 1.1", C-mount, 25 mm, 1.1", 25 mm, 1.1", C-mount, 35 mm, 1.1", 35 mm, 1.1", C-mount, 50 mm, 1.1", 50 mm, 1.1", C-mount, 75 mm, 1.1", C-mount
- Type
- Fixed focal length
- Resolution
- 12 MP, 16-25 MP
- Image circle
- 16-22 mm
- Sensor format
- 1.1" - 1.2"
- Mount
- C-mount
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
All 19 models in the 1.1" fixed focal length lenses (LS-FFL-S107)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-1265 | 12 mm, 1.1" | 20 MP | 12±5% mm | 420-720 nm | $184.00 | View |
| LS-FFL-1268 | 16 mm, 1.1" | 20 MP | 16±5% mm | 420-720 nm | $184.00 | View |
| LS-FFL-1271 | 25 mm, 1.1" | 20 MP | 25±5% mm | 420-720 nm | $184.00 | View |
| LS-FFL-1274 | 35 mm, 1.1" | 20 MP | 35±5% mm | 420-720 nm | $184.00 | View |
| LS-FFL-1277 | 50 mm, 1.1" | 20 MP | 50±5% mm | 420-720 nm | $184.00 | View |
| LS-FFL-1266 | 12 mm, 1.1", C-mount | 20MP | 12 mm | 420-1150 nm | $225.00 | View |
| LS-FFL-1269 | 16 mm, 1.1", C-mount | 20MP | 16 mm | 420-1150 nm | $225.00 | View |
| LS-FFL-1272 | 25 mm, 1.1", C-mount | 20MP | 25 mm | 420-1150 nm | $225.00 | View |
| LS-FFL-1275 | 35 mm, 1.1", C-mount | 20MP | 35 mm | 420-1150 nm | $225.00 | View |
| LS-FFL-1278 | 50 mm, 1.1", C-mount | 20MP | 50 mm | 420-1150 nm | $225.00 | View |
| LS-FFL-1267 | 16 mm, 1.1", C-mount | 12MP | 16 mm | 400-1000 nm | $300.00 | View |
| LS-FFL-1270 | 25 mm, 1.1", C-mount | 12MP | 25 mm | 400-1000 nm | $300.00 | View |
| LS-FFL-1273 | 35 mm, 1.1", C-mount | 12MP | 35 mm | 400-1000 nm | $300.00 | View |
| LS-FFL-1276 | 50 mm, 1.1", C-mount | 12MP | 50 mm | 400-1000 nm | $300.00 | View |
| LS-FFL-1261 | 6 mm, 1.1", C-mount | 20MP | 6 mm | 400-1000 nm | $300.00 | View |
| LS-FFL-1262 | 8 mm, 1.1", C-mount | 20MP | 8 mm | 400-1000 nm | $300.00 | View |
| LS-FFL-1263 | 8 mm, 1.1", C-mount | 25MP | 8 mm | $300.00 | View | |
| LS-FFL-1264 | 12 mm, 1.1", C-mount | 12MP | 12 mm | 400-1000 nm | $350.00 | View |
| LS-FFL-1279 | 75 mm, 1.1", C-mount | 12MP | 75 mm | 400-700 nm | $515.00 | View |
